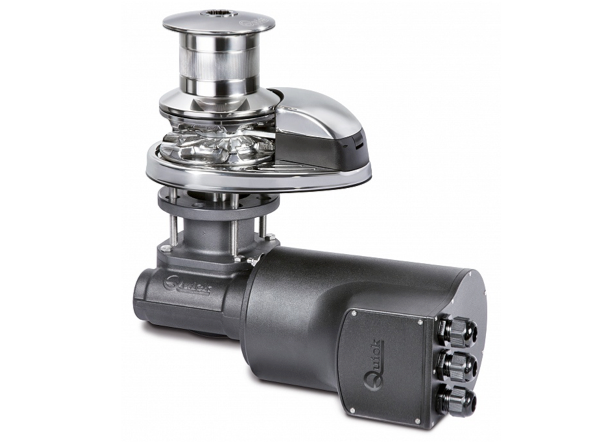

Quick Prince DP2 Windlass 1000W 12V - 8mm Chain - With Drum

£1,065.00 £1,290.00

Stylish and practical the Quick Range of Windlasses suit a vast range of boats. Quality materials and construction mean a long using life. My own windlass on my Jeanneau is now 10 years old and it hasn't missed a beat as they say.

Base in stainless steel AISI 316 and anodized aluminium in hard oxide. Without drum. Integrated sensor and magnet for chain counter.Manual Free-Fall system.Inspection cover. IP66 Watertight motor. Anodized aluminium gearbox.

Suitable for boats upto 10-13m/33-43ft

Key Features

Vertical windlasses
Stainless steel Aisi 316 base
8mm Chain Calibrated
12mm Rope
With drum
Rope and chain on a single gypsy
Integrated sensor and magnet for
chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
IP67 Motor watertight (700 - 1000 W)
IP66 Motor watertight (300 - 500 W)
Anodized aluminium gearbox

Specification

Motor Power: 1000w
Motor Supply Voltage: 12V
Maximum Pull: 930 Kg / 2050 lb
Maximum Working Load: 420 Kg / 926 ib
Working Load: 140 kg / 309 lb
Current Absorption @ Working Load: 130 A
Maximum Chain Speed: 31,2 m/min, 102.4 ft/min
Maximum Chain Speed @ Working Load: 16,5 m/min, 54,1 ft/min
Weight: 16,7 Kg / 36.8 lb

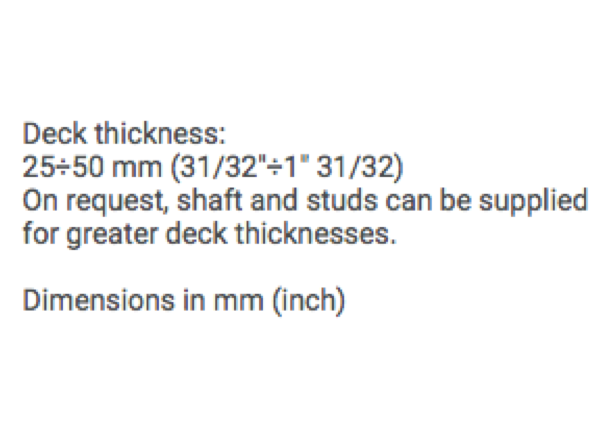

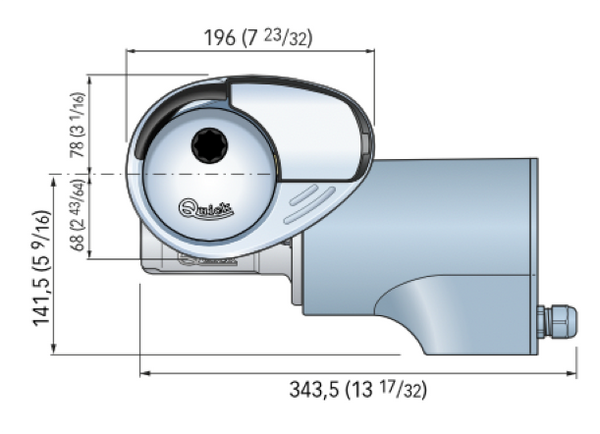

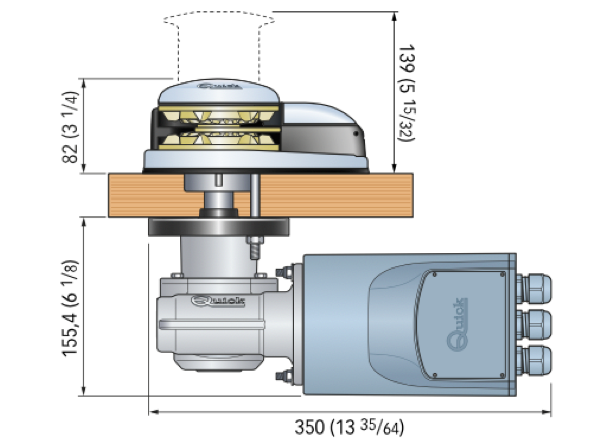

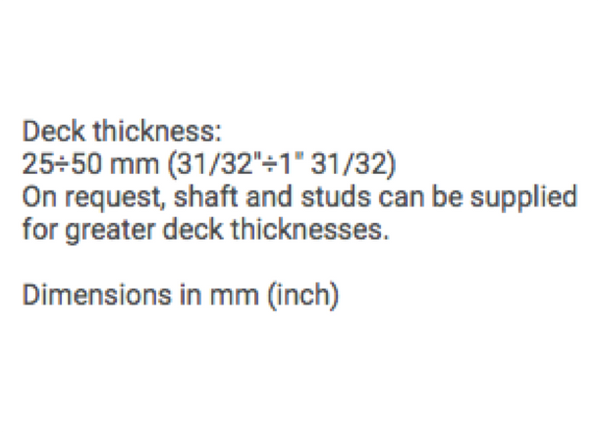

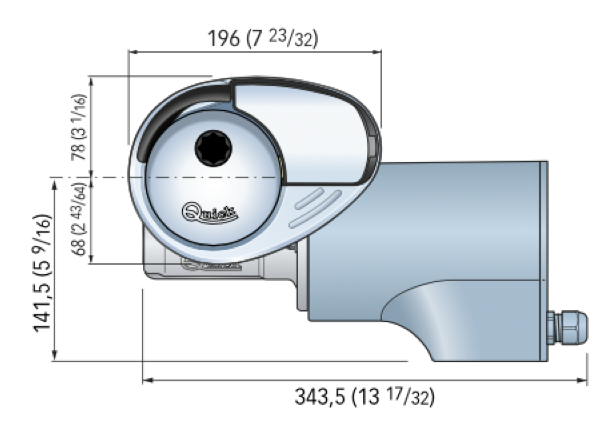

Dimensions

See attached images

Whats in the Box

Windlass
Contactor Box
Manual Lever
Seal Gasket
Drill Template
