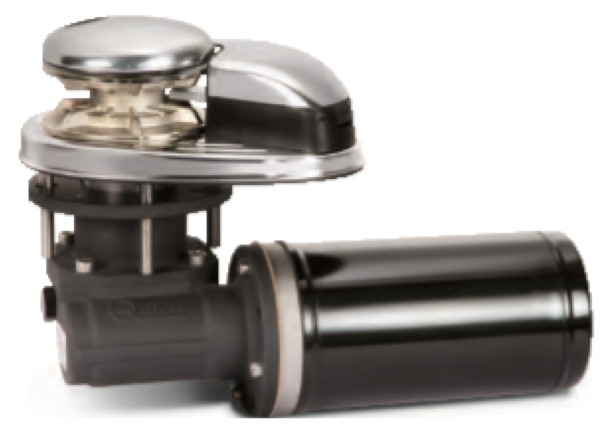

Quick Prince DP1 500W 12V Windlass 6mm Chain - No Drum

£699.00 £899.00

Stylish and practical the Quick Range of Windlasses suit a vast range of boats. Quality materials and construction mean a long using life. My own windlass on my Jeanneau is now 10 years old and it hasn't missed a beat as they say.

Base in stainless steel AISI 316 and anodized aluminium in hard oxide. Without drum. Integrated sensor and magnet for chain counter.Manual Free-Fall system.Inspection cover. IP66 Watertight motor. Anodized aluminium gearbox.

Suitable for boats upto 5-9m/16-29ft

Key Features

Vertical windlasses
Stainless steel Aisi 316 base
6mm Chain Calibrated
10mm Rope
With drum
Rope and chain on a single gypsy
Integrated sensor and magnet for
chain counter
Manual Free-Fall syste6
Inspection cover
IP66 Motor watertight (300 - 500 W)
Anodized aluminium gearbox

Specification

Motor Power: 500w
Motor Supply Voltage: 12V
Maximum Pull: 660 Kg / 1455 lb
Maximum Working Load: 200 Kg / 441 lb
Working Load: 65 kg / 143 lb
Current Absorption @ Working Load: 80 A
Maximum Chain Speed: 25,2 m/min, 82,7 ft/min
Maximum Chain Speed @ Working Load: 18,5 m/min, 59,7 ft/min
Weight: 1,47 Kg / 16.3 lb

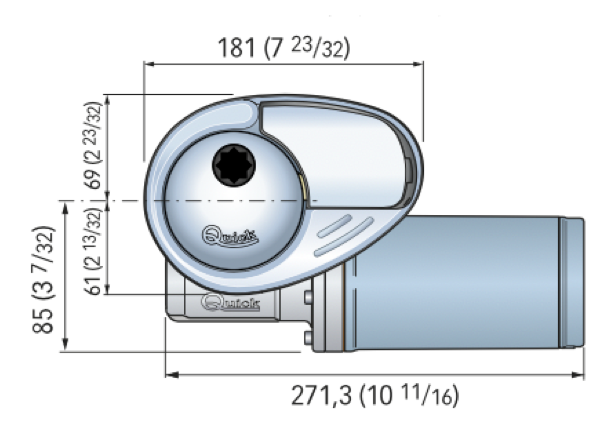

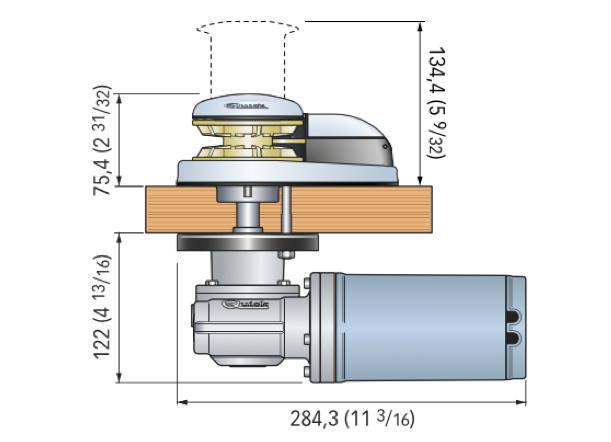

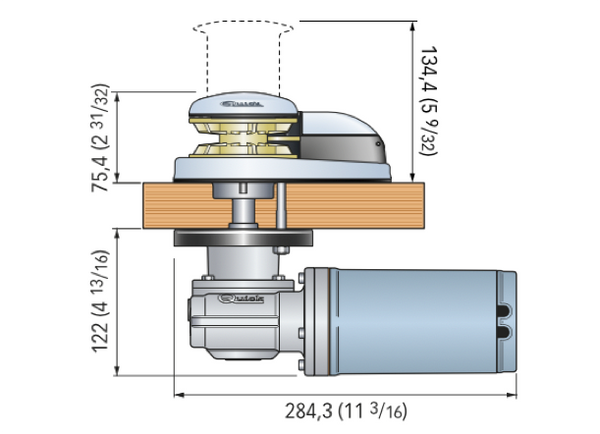

Dimensions

See attached images

Whats in the Box

Windlass
Contactor Box
Manual Lever
Seal Gasket
Drill Template
