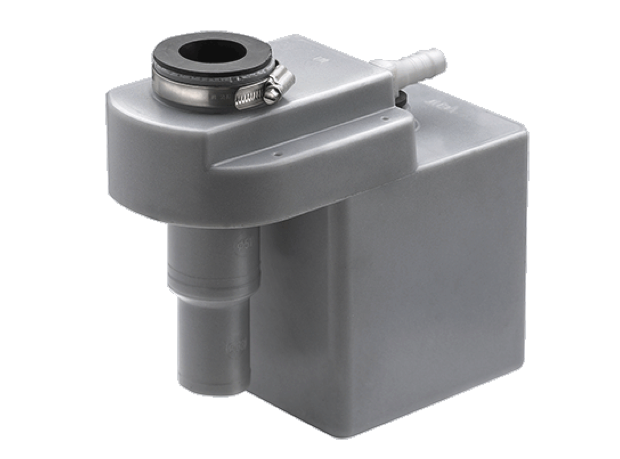

Vetus FS3816 Fuel Splash Stop

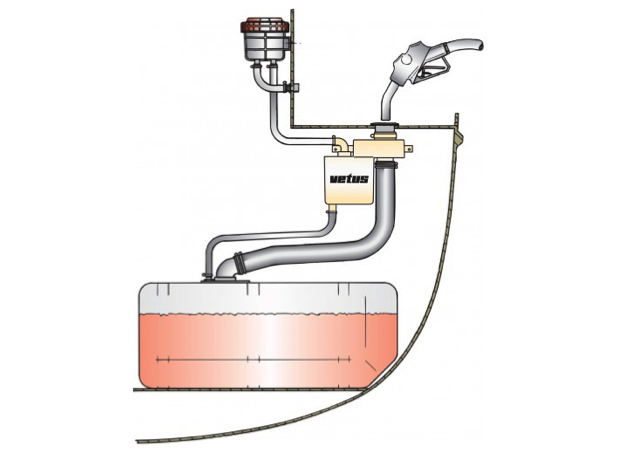

VETUS Splash-Stop model FS3816 is directly connected to a deck entry plate, with a diameter of 38mm. It ensures that overflowing diesel fuel and froth will not come out of the deck entry - soiling your deck and polluting the water -, but will be neatly caught inside the reservoir (with a capacity of approx. 2 litres).

Excessive fuel will flow back into the main tank through the vent connection.

A VETUS diesel smell filter may be installed into this breather line as well. If the diesel smell filter is positioned well above the deck, the breather line may exit below the deck level, if so required.

Supplied with connections for Ø 38 and 51 mm fuel filling hose plus a 16mm vent hose.

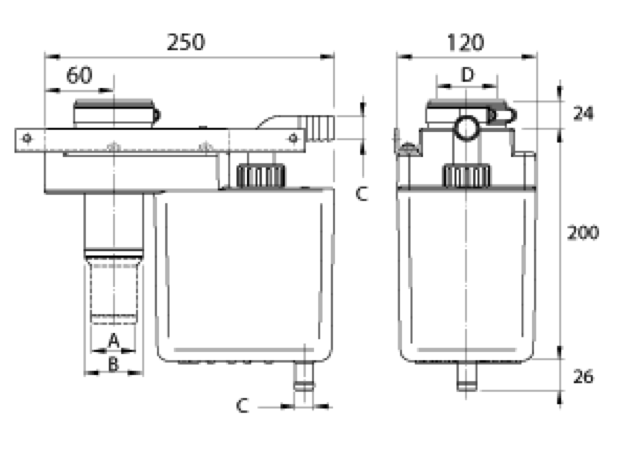

Dimensions

• See attached image
