Ultraflex T67 Steering Helm with Bezel up to 55HP

£63.00 £74.20

Ultraflex Steering Helm for engines up to 55HP with the exception of the Envirude E-TEC 50 for which the use of a t85 or T71FC is recommended

Applications

• For use with outboard engines up to 40kw (55hp)

Features & Technical Specifications

• All stainless steel output end of cable
• Maximum allowable steering wheel diameter: 380mm (15") • Minimum steering cable bend radius: 200mm (7.9")
• Exceeds EN 29775 safety standards

Corrosion resistant materials.

• Standard friction externally adjustable.
• 90° bezel
• Four optional helm positions to facilitate steering cable installation • Lock-to-Lock steering wheel turns: approx. 2.5
• Stroke: 230mm (9")

Unsure what to order gives us a call on 01621 786413 we are here to help

Models

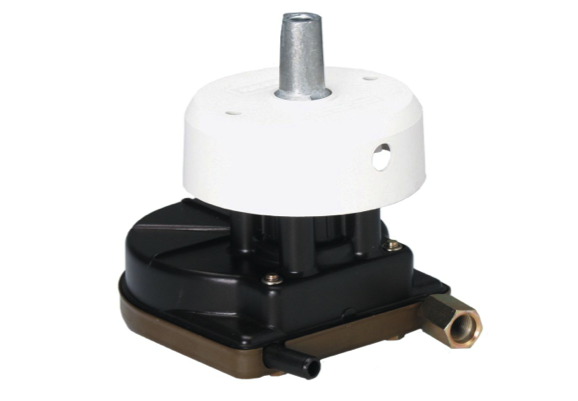

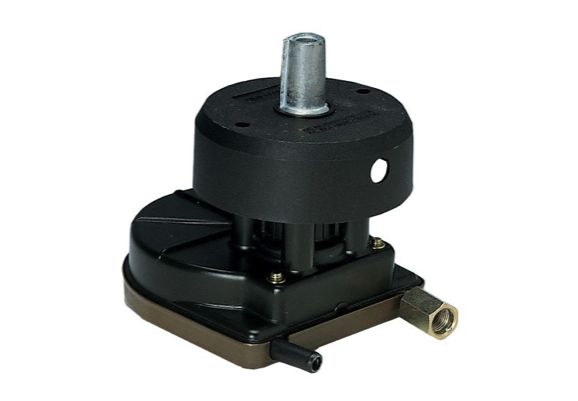

T67 Steering Helm 55HP with Black Bezel
T67 steering Helm 55HP with White Bezel

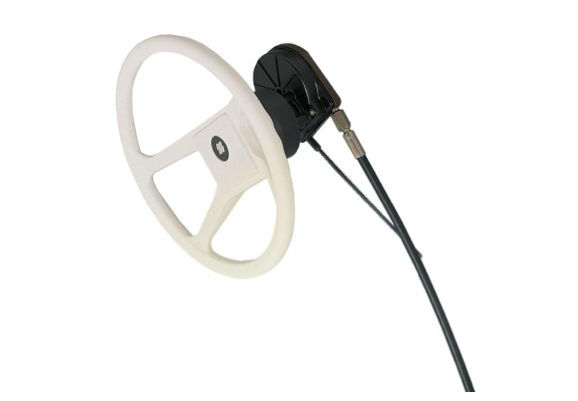

PS Wheel & Cable shown are for illustration purposes only and do not come with the helm unit
