Ultraflex Single Lever + Trim MB Side Mount Control - Positive Lock-In Neutral and Trim Switch

Single lever / dual action control to operate both throttle and gear. Suitable for any type of boat with outboard, inboard or I/O power plants.

Features

• Enables easy & safe gearing by preventing accidental gear engagement unless engine is idling.
• Can be installed horizontally or vertically, on the starboard or port side of the boat.
• Neutral safety switch (optional), prevents in gear starting. Exceeds EN ISO 11547 standards when installed.

Additional Features

• Provided with a brake tension release system, adjustable from outside
• B184 model is provided with power trim switch conveniently located in the handle grip which enables for easy tilting of the engine
• Exceeds EN ISO 11547 standards when 4-X!2 safety switch is fitted
• Pull-out handle disengages gear for warm-up
• Models B183, B184, are provided with positive lock-in neutral to prevent accidental gear engagement
• For use with all Ultraflex engine control cables except C22,C4,C36 & MACH36.
• Ultraflex C5 ,C16 & MACH15 cables requires 4-K35 connection kit

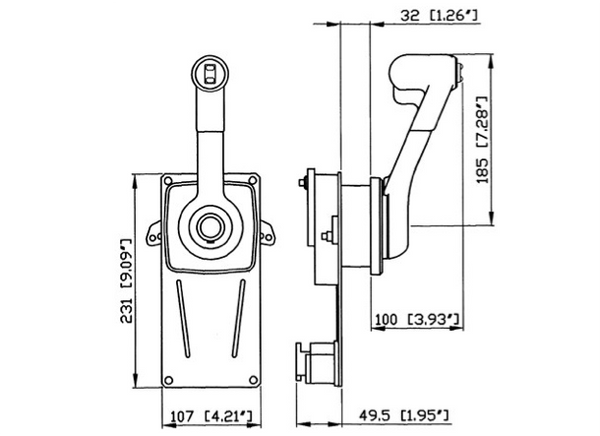

Dimensions

• See attached image
