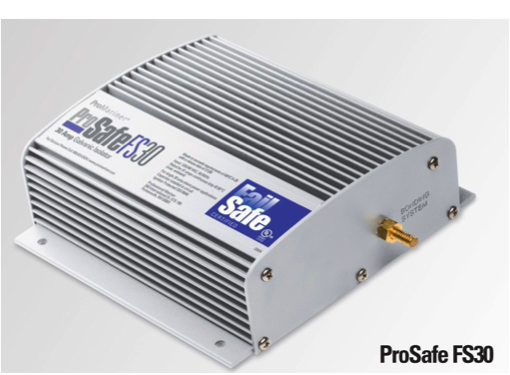

Sterling ProSafe Failsafe Monitor 30 Amp

ProSafe FS installs easily and does not require a dedicated monitor to verify the operational status of the galvanic isolator as required by no Fail Safe Certified galvanic isolators

Built on robust FlatPack semiconductor platforms ensuring that in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC shore power

Key Features

• ABYC a-28 July 08 Compliant and Fail Safe Certified
• Certified by Underwriters Laboratories (UL). Insures shore power safety ground wire is maintained through the isolator.
• Flat Pack High Power Semi-conductors
• Robust high power diodes allow the FS Series to meet the new Fail Safe criteria for conducting inrush currents of 5,000 amps for the required duration period
• Innovative Design
• Ignition protected
• Meets ISO 8846 and can be mounted within an engine compartment
• Gold Plated Terminations
• 30 Amp

Dimensions & Weights

• Length 175mm
• Width 185mm
• Depth 65mm
• Weight 1.5kg
