Raymarine Ray90 VHF Black Box with AIS 700 Tx & Rx

Sold Out

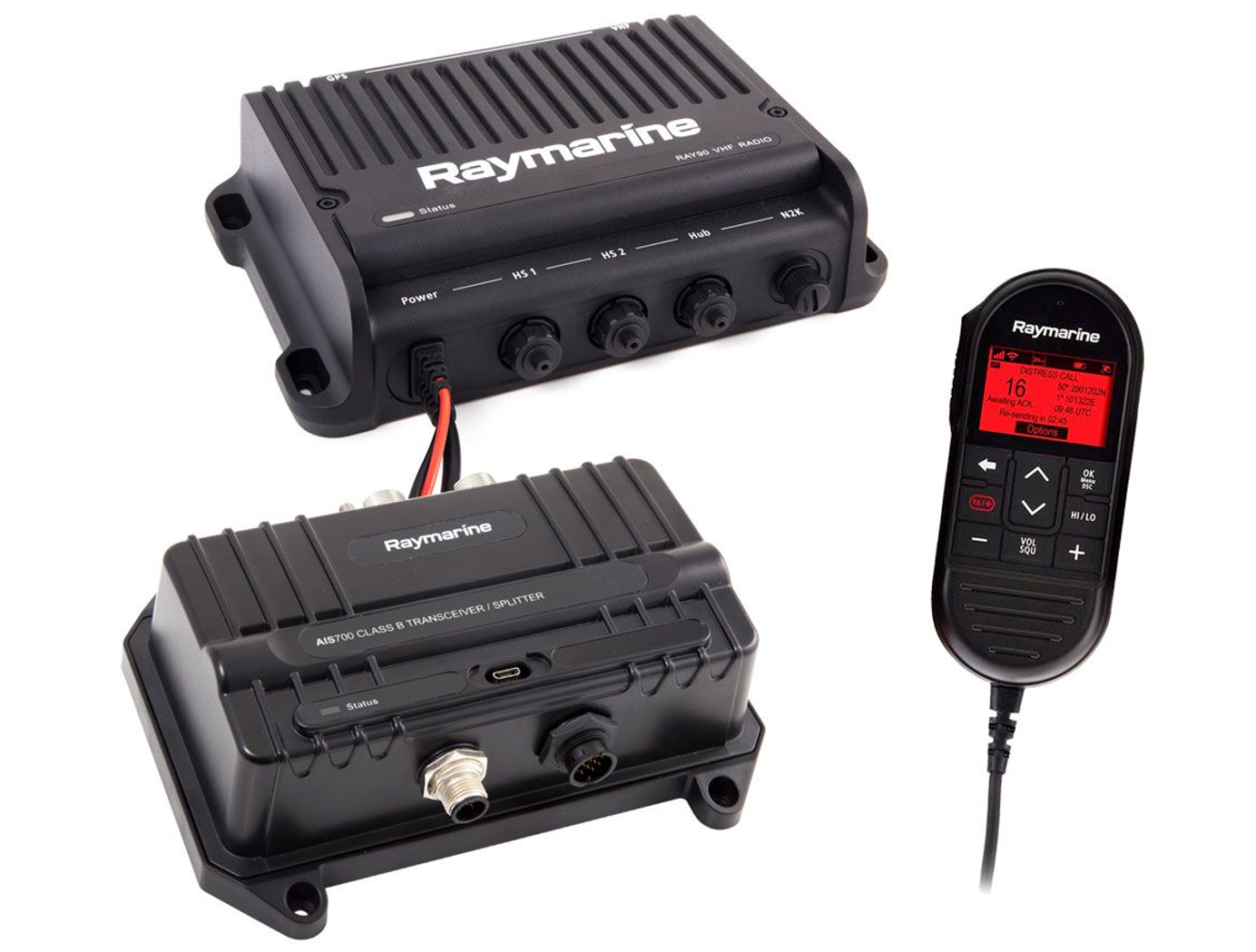

The NEW Raymarine Ray90 Modular Dual-Station VHF Radio System brings multi station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio. The Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard.

Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required. Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

The Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

The Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions. The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker.

For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

GENERAL

Waterproof Rating: Complies with IPX6 & IPX7 | Complies with EN60945
Dimensions: Height - 63mm (2.48 in) | Width - 235mm (9.25 in) max | Depth 160mm (6.30 in) max excl rear cables
Weight: 2.6 Kg (5.7 lbs)
Operating Temperature Range: -25°C to 55°C
Storage Temperature Range: -25°C to 70°C
Humidity: up to 95%
Communications Port: NMEA 0183 (version 4.01) | NMEA2000 (version 3.101)
Nominal Supply Voltage: 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range: 9V DC to 16V DC
Current Consumption: Less than 6A at High Power (13.6V) | Standby: 600 mA | Receive: 2 Amps

TRANSMITTER

Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
Frequency Stability: + / - 1.5 ppm
Channel Spacing: 12.5 kHz
Power Output: High Power = 25 Watt | Low Power = 1 Watt
Spurious Emmission: Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation: +/- 5kHz
Antenna port impedance: 50 ohms typical

RECEIVER

Receiver Type: Double Conversion Super Heterodyne
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity: Less than -2 dBµ EMF
Hum & Noise: Better than -40 dB
Audio Distortion: Less than 10%
Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical | Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity: More than 70 dB
Spurious Response Rejection: More than 70 dB
Inter Modulation Rejection: More than 70 dB

SPEAKER

External Passive Speaker Power: 5W (4Ω) / 2.5W (8Ω)
Hailer Speaker Power Output: 24W (4Ω) / 12W (8Ω)

GPS

Number of channels: 72
Cold Start: 29s
Receiver IC Sensitivity: -167 dBm (Tracking) / -148 dBM (Acquisition)
GNSS Compatibility: GPS | GLONASS | *BeiDou
SBAS Compatibility: WAAS | EGNOS | MSAS
Special Features: Active jamming and interference reduction
Operating frequencies: GPS L1 C/A | GLONASS L10F | Beidou B1
Signal Acquisition: Automatic
Almanac Update: Automatic
Geodetic Datum: WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate: 20 Hz (20 times per second concurrent GNSS)
Positional Accuracy: Without SBAS: <2.5 metres 95% of the time | With SBAS: <2 metres 95% of the time
Raymarine AIS700 Transceiver with Antenna Splitter
Waterproof Rating: IPX6 and IPX7
Operating temperature: -15°C to +55°C
Storage temperature: -20°C to +75°C
Humidity: Up to 93% @ 40°C
Power Supply: 12v and 24 nominal
Power Consumption: <3W
Peak current: 3A
Load Equivalency Number: 1 LEN
DSC Receiver: Implemented by time sharing with one TDMA receiver
Transmitter band | Receiver 1 & 2 band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter | Receiver | Transceiver Specification: To meet IEC 62287-2 relevant sections
GPS receiver: u-blox MAX-M8W
GPS Cold start acquisition time: 26s nominal
Positional source: GPS & GLONASS
AIS performance: 5W SOTDMA
Operating frequency range: 156.0MHz to 162.025MHz Transmitting |1 56.0MHz to 162.025MHz Receiving
VHF, AIS & Antenna port impedance: 50 Ohms
VHF antenna connector type: SO-239 co-axial
VHF radio connector type: SO-239 co-axial
GNSS antenna connector: 50Ω TNC co-axial
NMEA0183 & NMEA2000 Compatible
USB: Micro-B

The NEW Raymarine AIS700 is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems. The AIS700 features a built-in antenna splitter which simplifies installation with existing VHF radio antennae. Other features include latest SO-TDMA networking for longer range and faster performance, NMEA2000, NMEA0183, PC and SeaTalkng Compatibility, Software or hardware switchable Silent Mode for enhanced security when needed.
