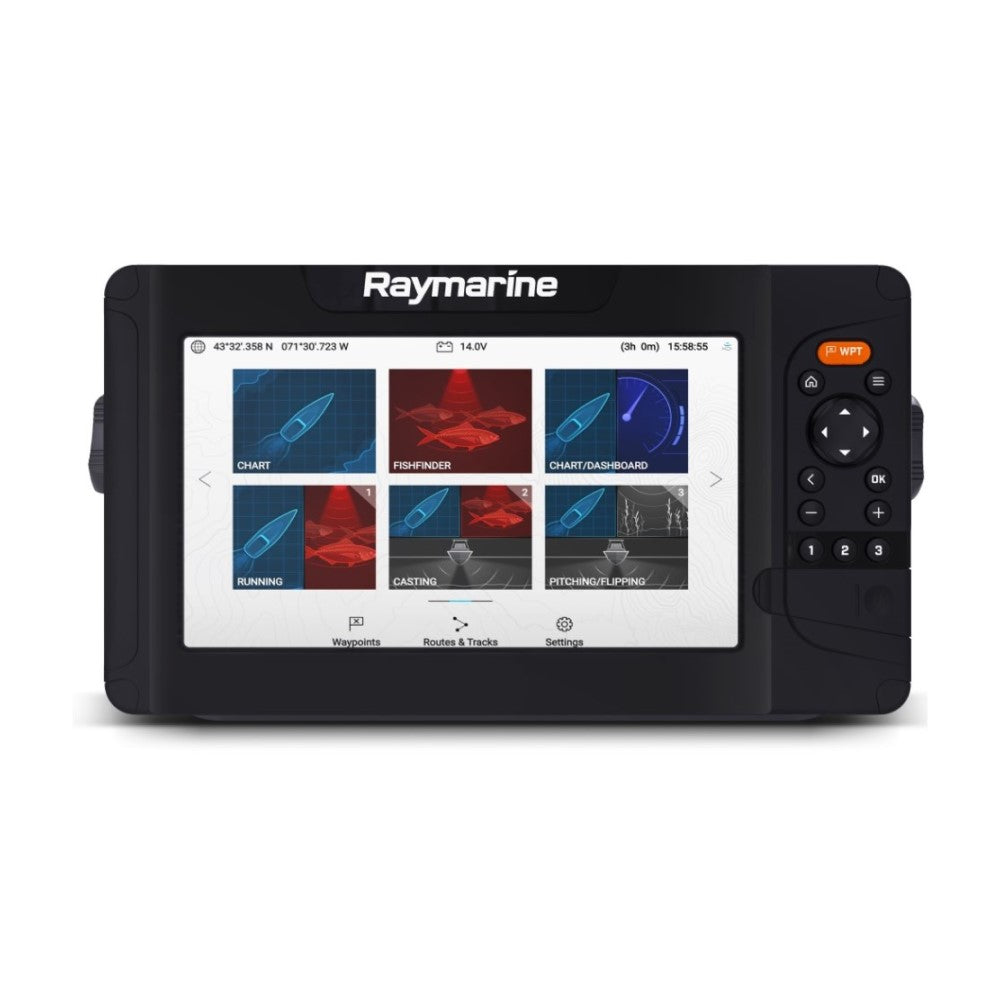

Raymarine Element 7S - Display Only

£389.00 £445.00

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color.

Key Features

Display Size: 7.0\" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Three user-programmable quick keys provide access to favorite pages with one button push
Live menus allows customisation of charts while seeing the navigation display change in real time

Navigate with Confidence

The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance Element will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather sunlight viewable displays deliver chart and navigation data in beautiful color.

Sonar is Standard
Element S comes with a Single channel High CHIRP Sonar with 9 pin connector.

Quad-core performance
The fast quad-core processor allows instantaneous chart re-draw and continuous 3D rendering while running a simple easy-to-learn user interface.

Lighthouse Sport OS
Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation featuring uncomplicated menus.

Intuitive keypad controls
Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally three user-programmable quick keys provide instant access to favored pages and an oversized waypoint button allows quick and easy marking of areas of interest.

Live menus - Change settings or customize charts while seeing the navigation display change in real time.

Live menus
Change settings or customize charts while seeing the navigation display change in real time.

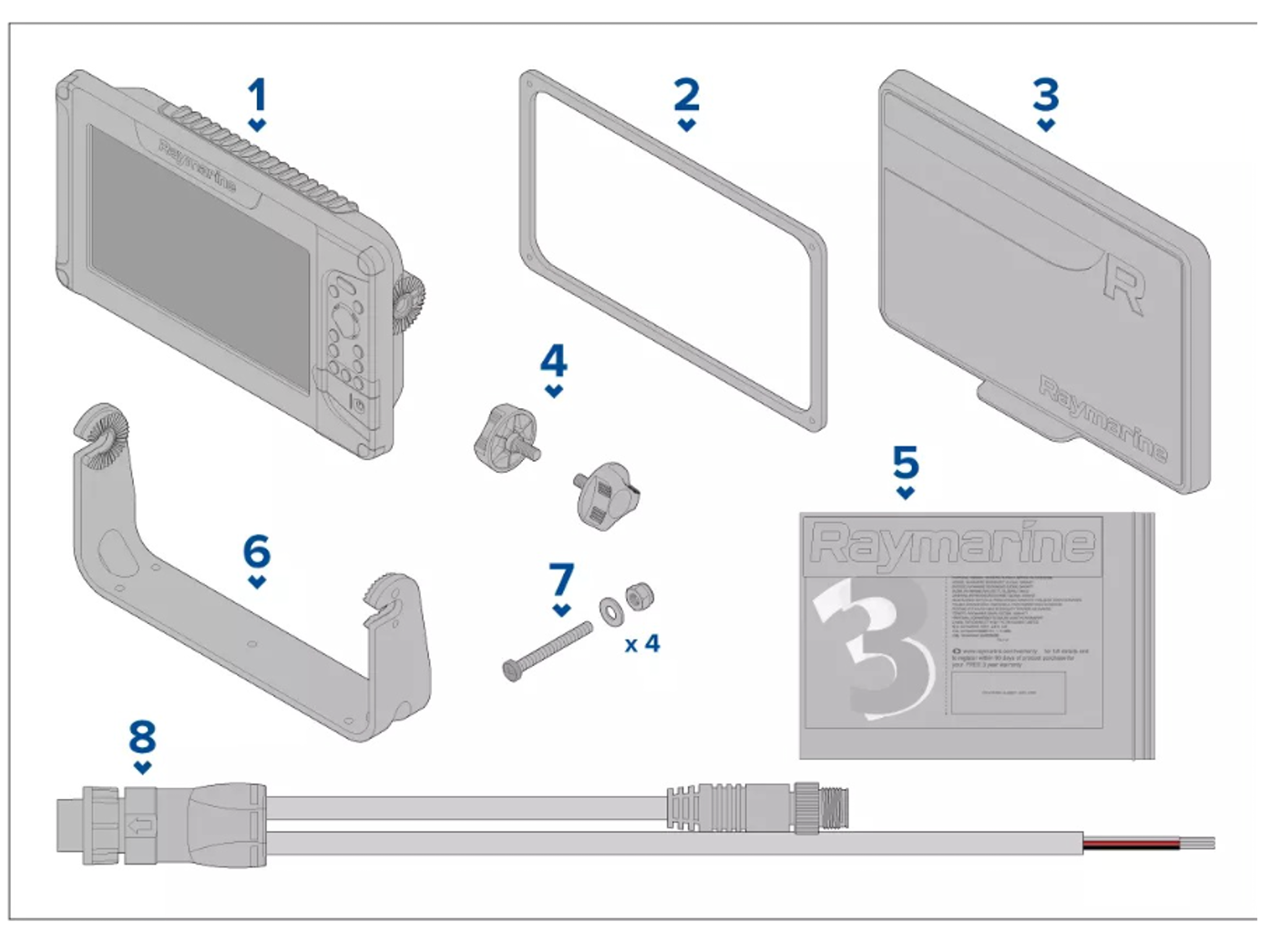

Whats in the Box

Element display
Surface mount gasket
Suncover
Trunnion knobs (x 2)
Documentation

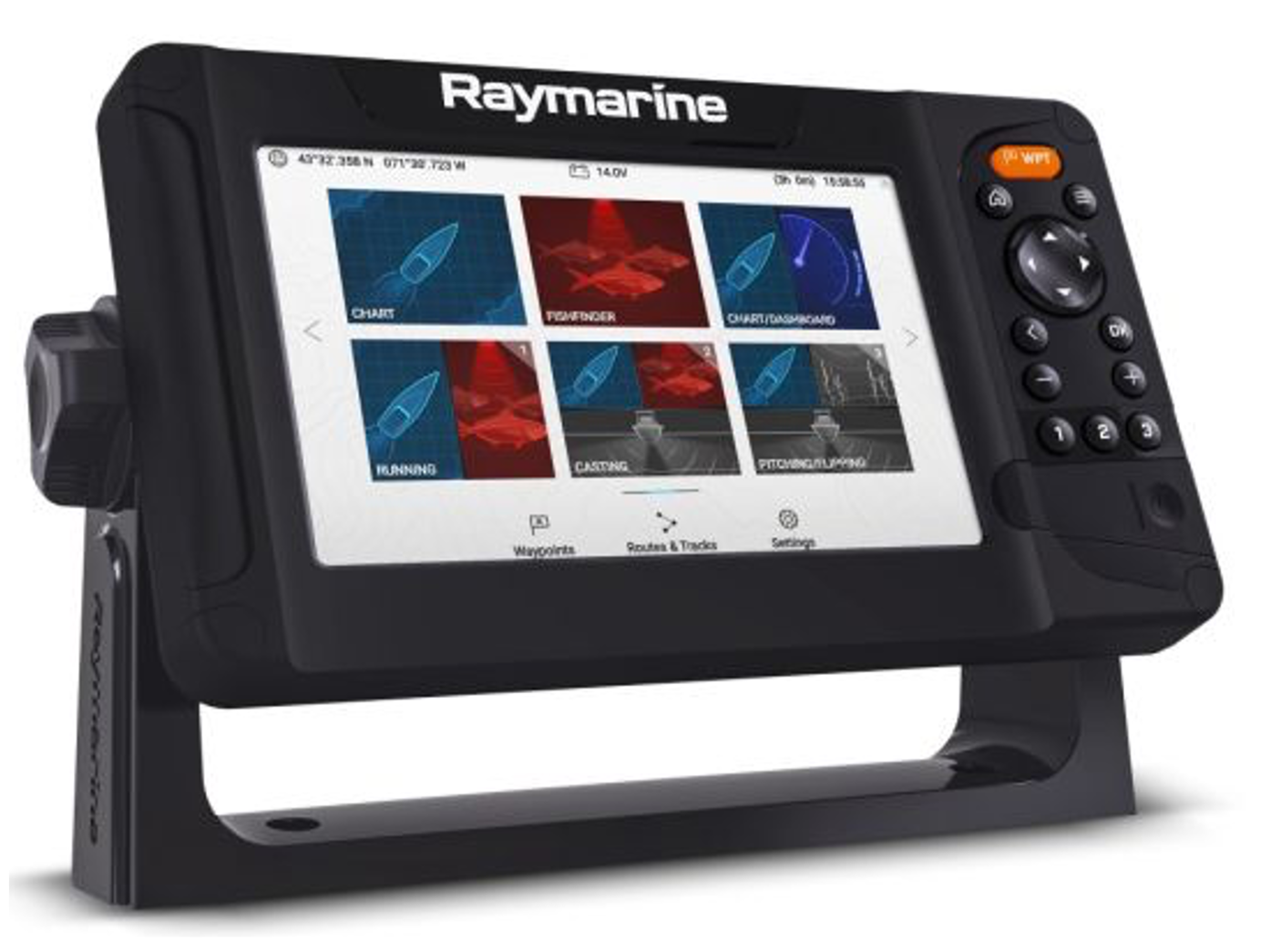

Trunnion bracket
Surface mount stainless steel fixings x 4 (M4 x 40 machine screw M4 flat washer M4 locking nut)
Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Specification

Power
Operating Voltage Range	8 - 16V DC (Protected up to 32V DC)
Power Consumption @ 12V DC	15W
Nominal Supply Voltage	12V DC
Fuse Requirements	Inline fues: 5A, Thermal Breaker: 3A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9V DC nominal voltage

Enviromental
Operating Temperature Range	-25°C - 55°C (-13°F - 131°F)
Storage Temperature Range	-30°C - 70°C (-22°F - 158°F)
Humidity	up to 93% @ 40°C (104°F)
Waterproof Rating	IPX6, IPX7

Physical
Dimensions (Trunion Mounted	162.59 x 263.85 x 149.4mm (6.4" x 9.43" x 5.88")
Dimensions (Surface Mounted)	135.1 x 239.6 x 149.4mm (5.32" x 9.43" x 5.88")
Weight (Display only)	1Kg (2.2lbs)

LCD
Size (diagonal)	7"
Resolution	800 x 480 (WVGA)
Aspect Ratio	5:3
View Angle (T/B/L/R)	50°/60°/70°/70°
