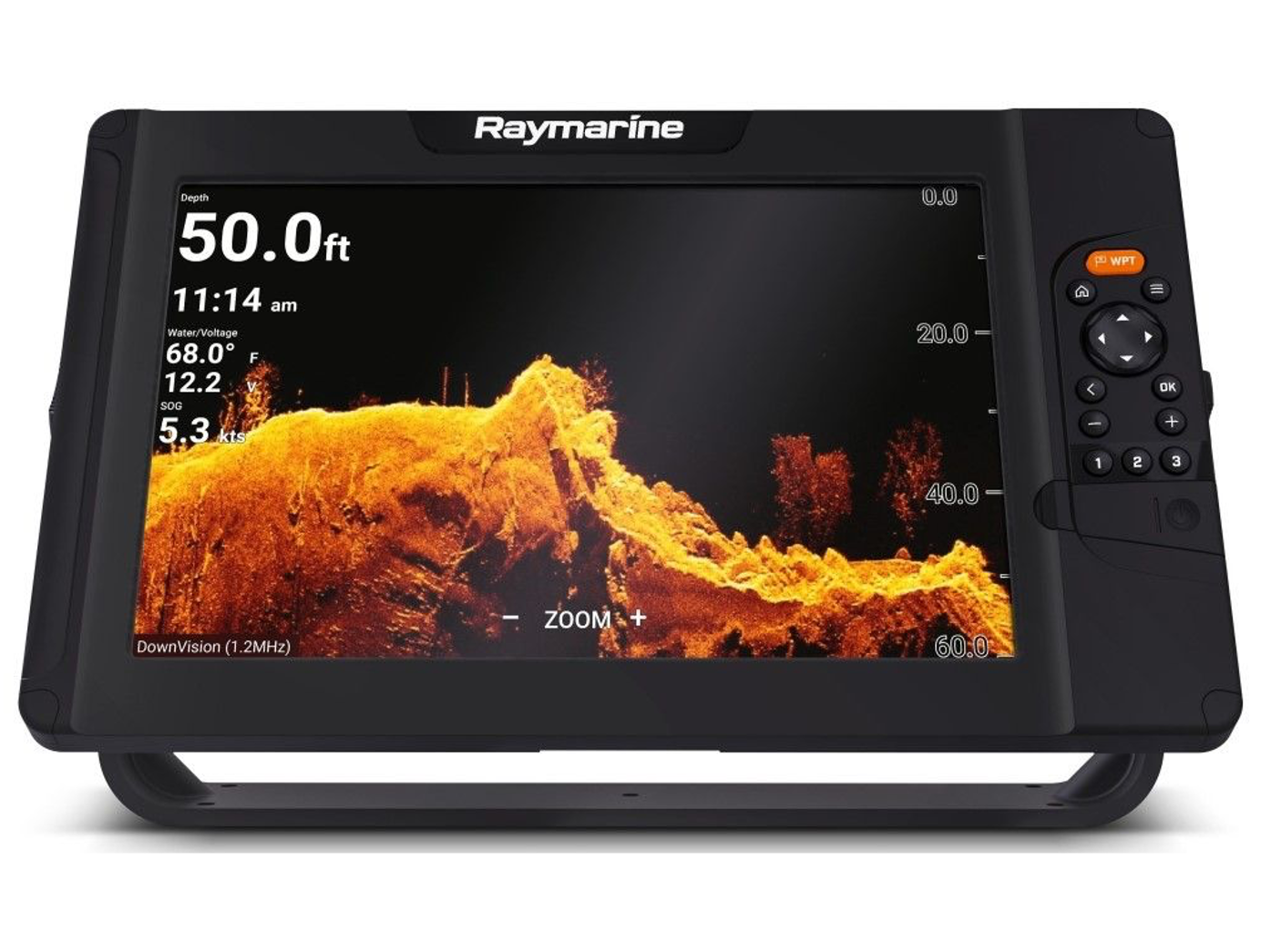

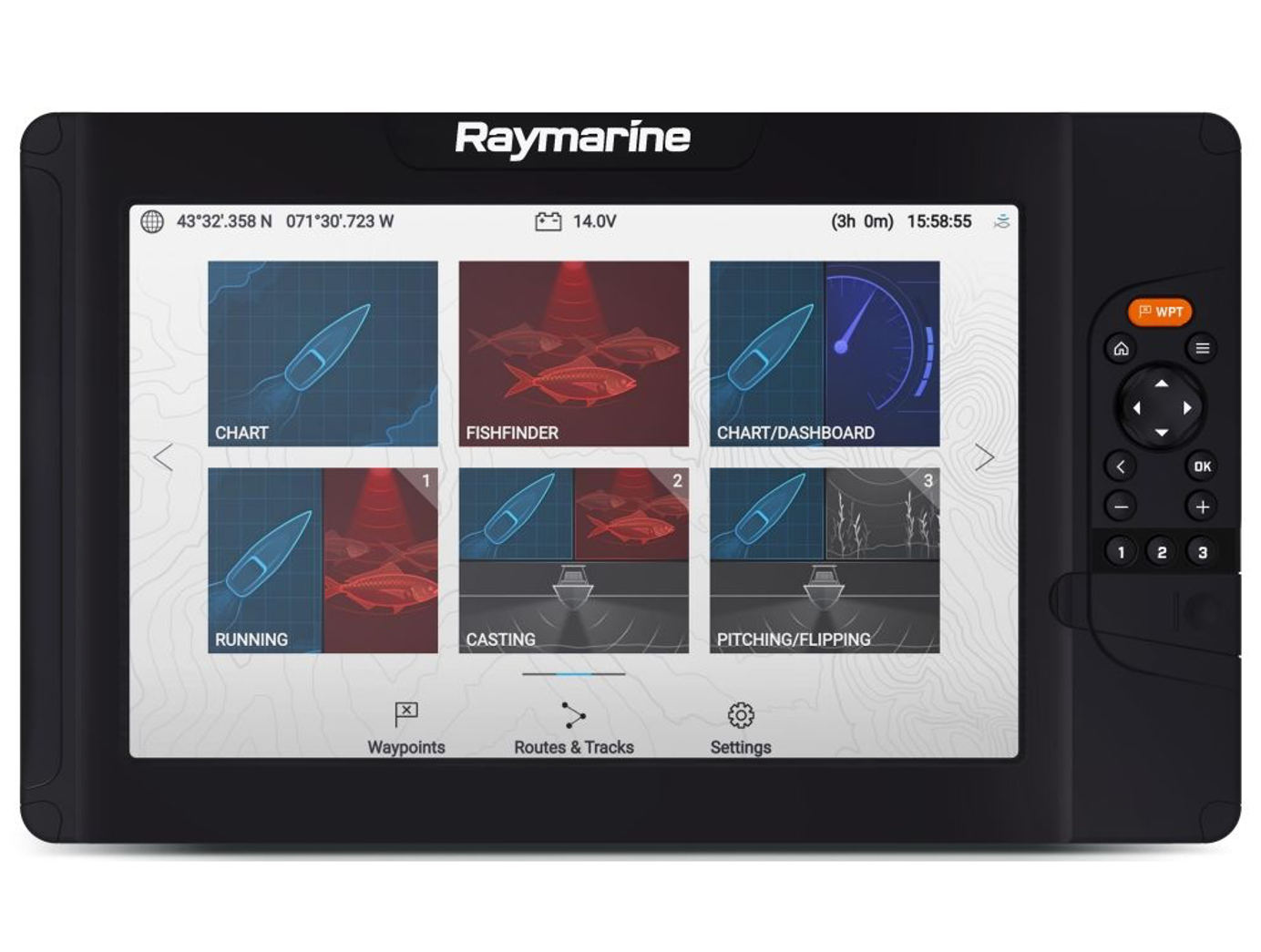

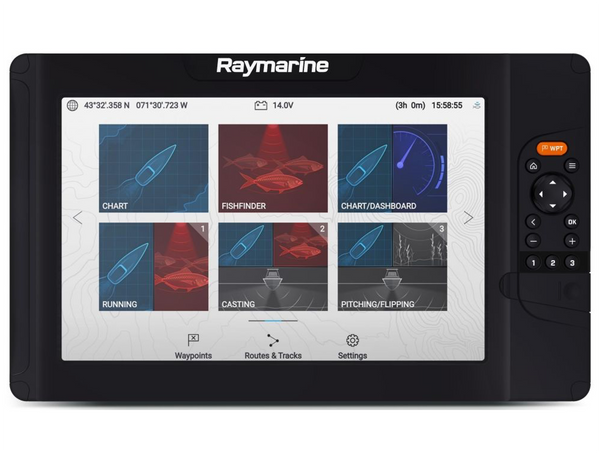

Raymarine Element 12HV Display, HV100+ TDX & Western Europe Chart

£1,185.00 £1,395.00

The Element series of navigation displays gives the freedom to enjoy the open waters, Select a destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element will quickly become a trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color.

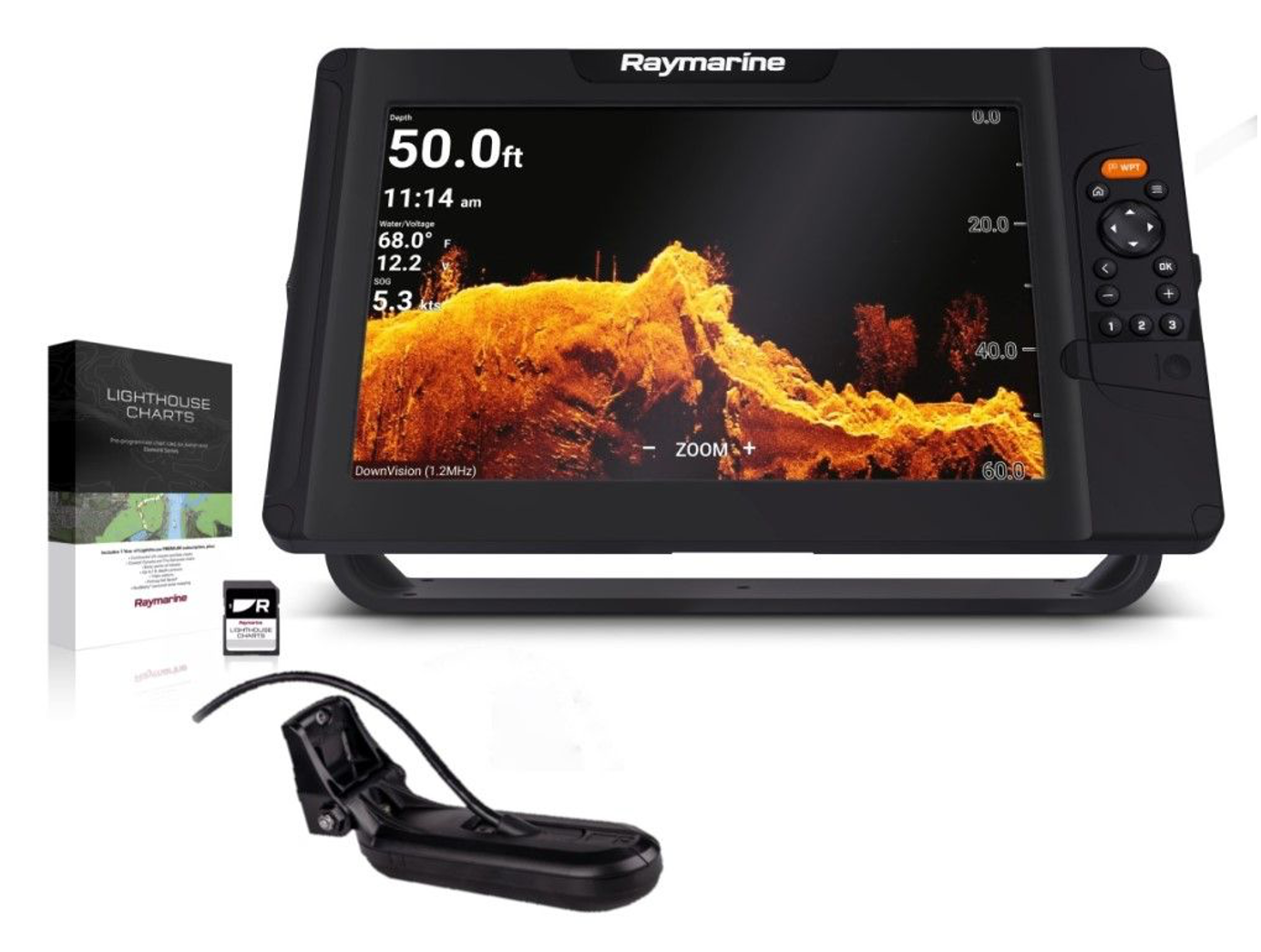

Includes HyperVision HV100+ Trasom Mount Transducer and Western European Lighthouse Chart.

Display Size: 12.0\" Optically Bonded LCD
Display Resolution: 1280 x 800 WVGA
Display Type: Non-Touch
Brightness: 1 500 nits
Viewing Angle: Top 89° / Bottom 89° / Left 89° / Right 89°
Overall Dimensions W x H x D (mm):357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs): 6.5
Water Ingress Protection: IPx7
Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 25 Watts

The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance Element will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather sunlight viewable displays deliver chart and navigation data in beautiful color.

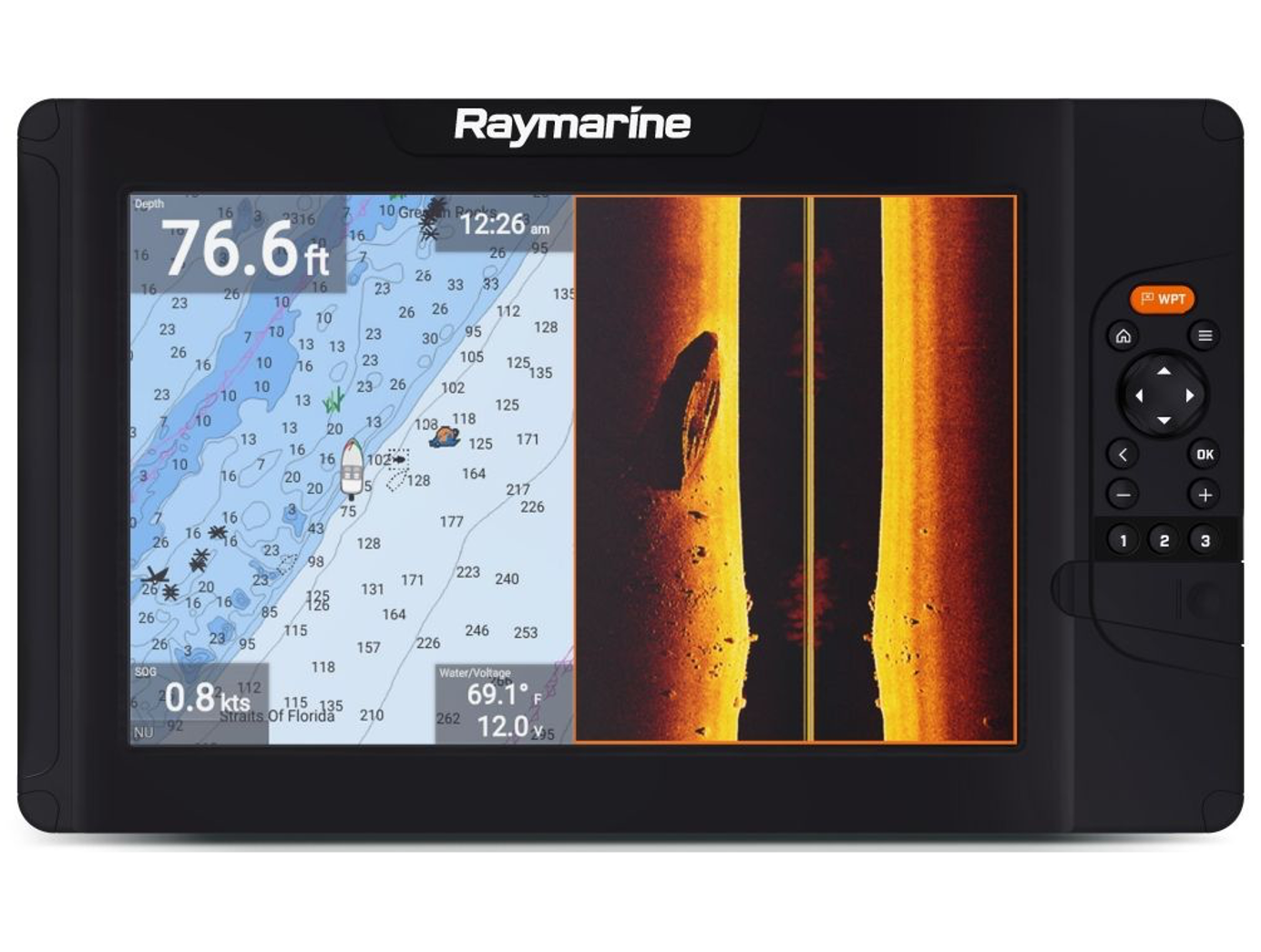

Sonar is Standard

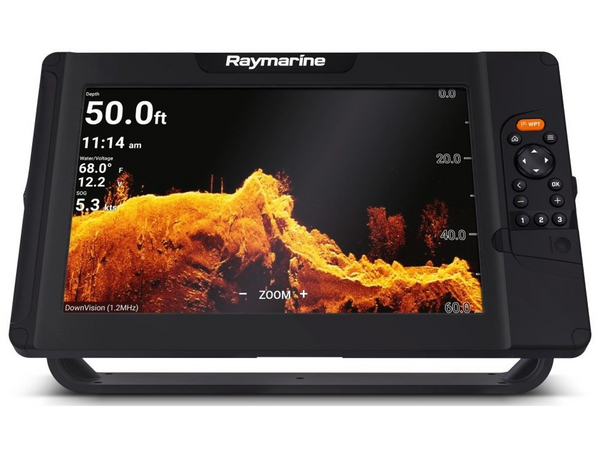

Element HV includes HyperVision a 1.2 megahertz sonar technology which turns up the resolution of DownVision SideVision and RealVision 3D to a new level of precision imaging and fish identification. Letting you see structures vegetation and fish with amazing life-like clarity.

Quad-core performance
The fast quad-core processor allows instantaneous chart re-draw and continuous 3D rendering while running a simple easy-to-learn user interface.

Lighthouse Sport OS
Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation featuring uncomplicated menus.

Intuitive keypad controls
Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally three user-programmable quick keys provide instant access to favored pages and an oversized waypoint button allows quick and easy marking of areas of interest.

Live menus - Change settings or customize charts while seeing the navigation display change in real time.

Includes HV-100+ Transom Mount Transducer - All in one transducer compatable with Raymarine Element HV units 1.2MHz HyperVision provides super high-resolution imaging Up to 125ft in DownVision and SideVision modes. 350kHz Standard imaging for great resolution and exceptional range.

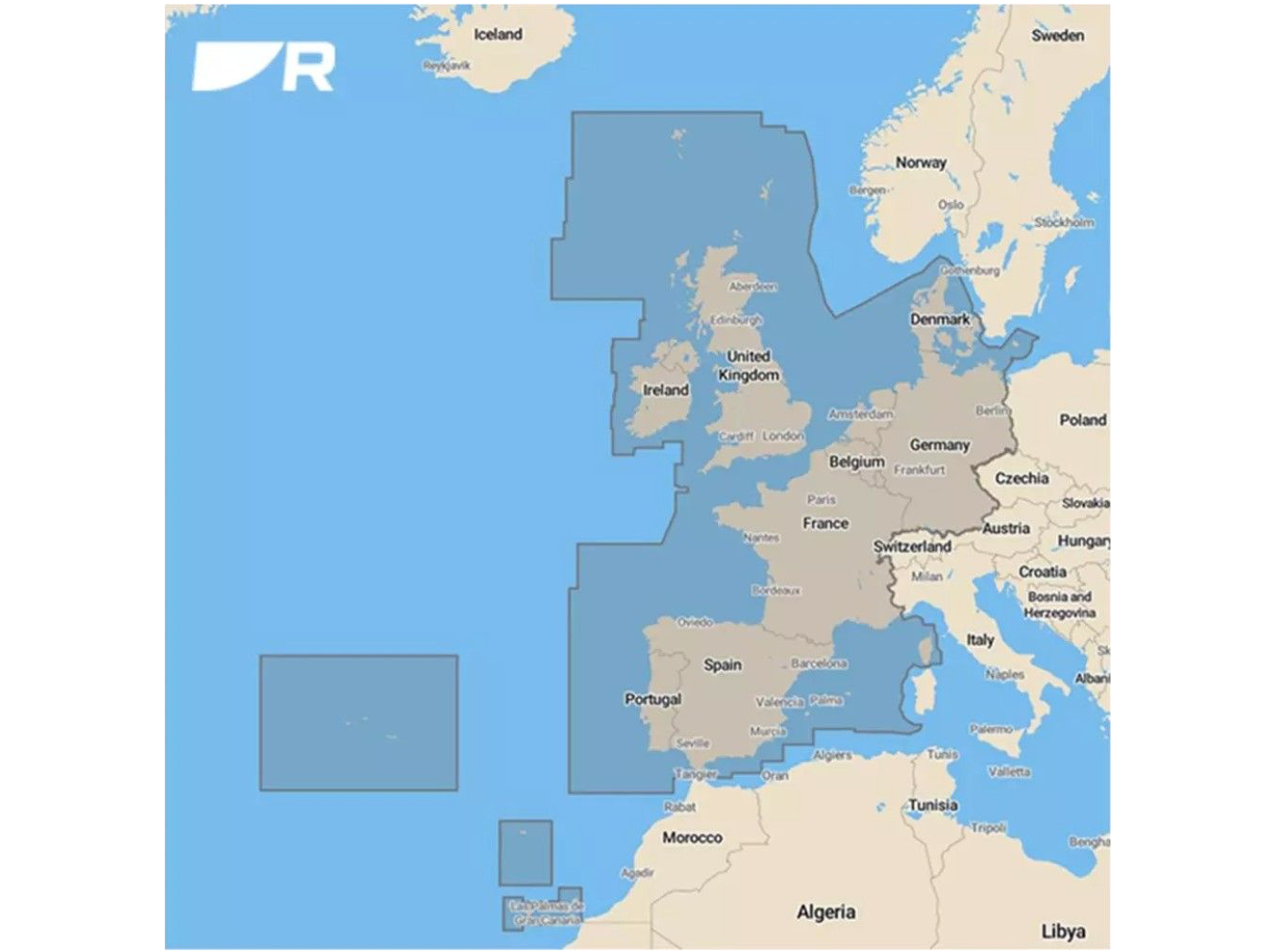

Raymarine LightHouse 2 Chart - Includes Western Europe Lighthouse Chart: coverage area includes Ireland, Great Britain, Portugal, Spain, France, Germany, and Denmark.

Includes HV-100 Transom Mount Transducer

All in one transducer compatable with Raymarine Element HV units 1.2MHz HyperVision provides super high-resolution imaging Up to 125ft in DownVision and SideVision modes. 350kHz Standard imaging for great resolution and exceptional range.

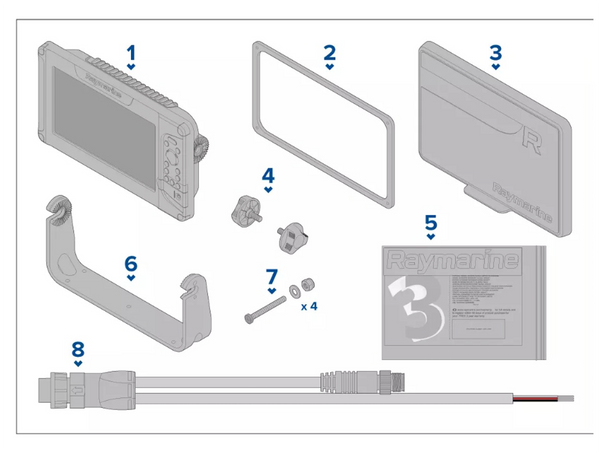

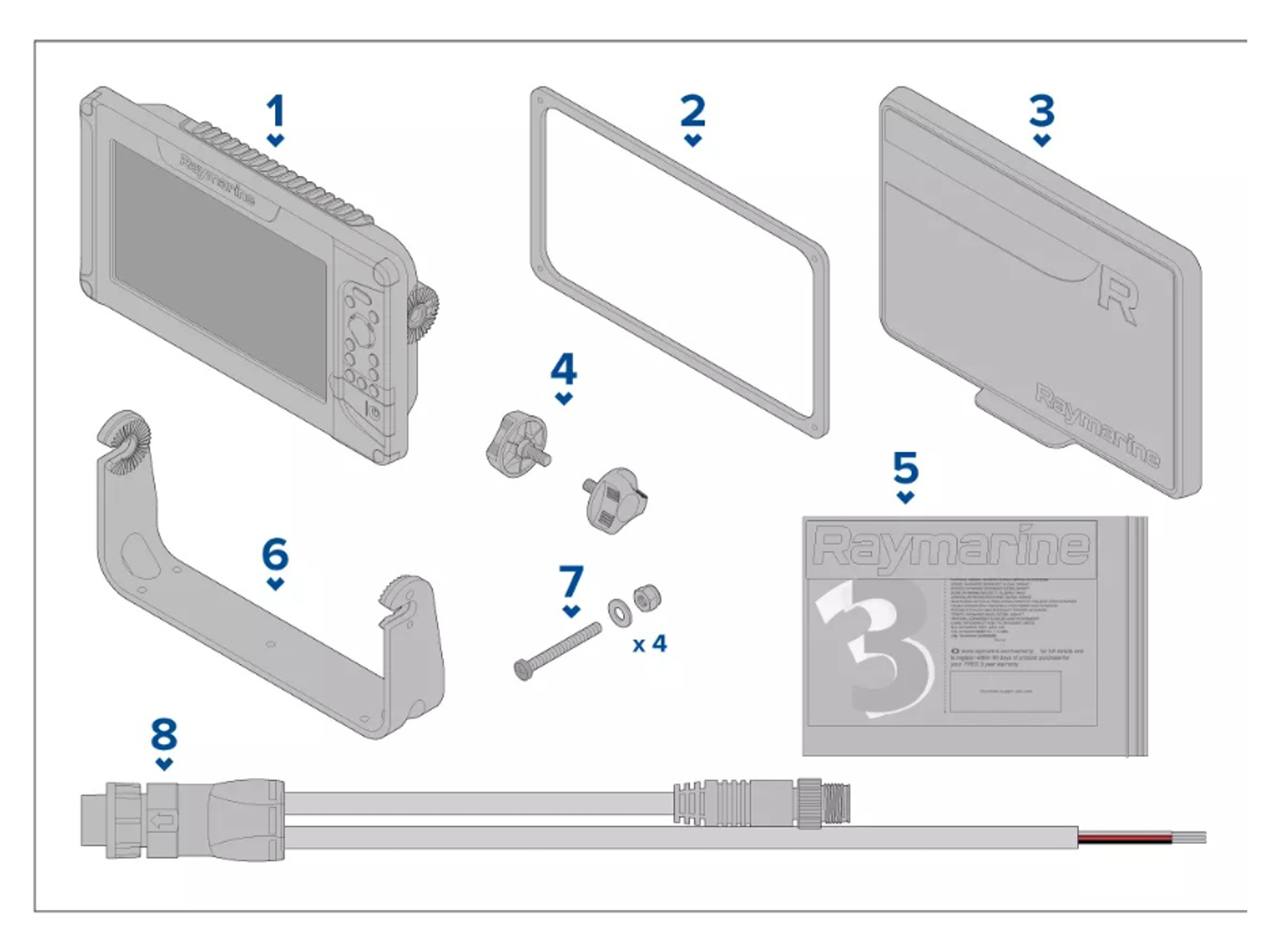

Whats in the Box

Element display
HV-100+ Transom Mount Transducer
Western Europe Lighthouse Chart
Surface mount gasket
Suncover
Trunnion knobs (x 2)
Documentation
Trunnion bracket
Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Technical Specification

Power
Operating Voltage Range	8 - 16V DC (Protected up to 32V DC)
Power Consumption @ 12V DC	25W
Nominal Supply Voltage	12V DC
Fuse Requirements	Inline fues: 5A, Thermal Breaker: 3A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9V DC nominal voltage

Enviromental
Operating Temperature Range	-25°C - 55°C (-13°F - 131°F)
Storage Temperature Range	-30°C - 70°C (-22°F - 158°F)
Humidity	up to 93% @ 40°C (104°F)
Waterproof Rating	IPX6, IPX7

Physical
Dimensions (Trunion Mounted	225.19 x 373.4 x 149.4mm (8.87" x 14.7" x 5.88")
Dimensions (Surface Mounted)	215.2 x 357.2 x 149.4mm (8.47" x 14.06" x 5.88")
Weight (Display only)	2Kg (4.4lbs)

LCD
Size (diagonal)	12.1"
Resolution	1280 x 800 (WXGA)
Aspect Ratio	8:3
View Angle (T/B/L/R)	89°/89°/89°/89°
Display Type	IPS
Colour Depth	24-bit
Maximum Illumination	1,500nits / 1,500 cd/m2

Data Connections
SeaTalkng / NMEA 2000	1 x DeviceNet femal connector (Built into power cable)
2.4 GHz Wi-Fi	802.11/b/g/n
Transducer	1 x 15-pin HyperVision connector

GPS Receiver
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Channels	Multiple - ability to simultaneously track up to 28 satellites
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
SBAS compatibility	EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition	Automatic
Almanac Update	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Cold start	< 2 minutes

Storage
External	1 x MicroSDXC card slot
