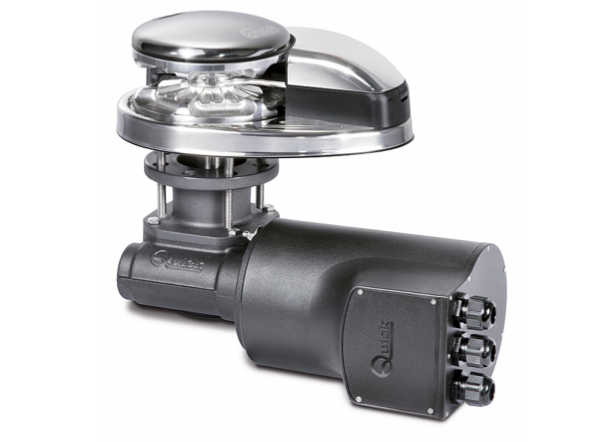

Quick Prince DP3 Windlass 1500W 12V with 10mm ISO Gypsy - No Drum - 2022 Model

Stylish and practical the Quick Range of Windlasses suit a vast range of boats. Quality materials and construction mean a long using life. My own windlass on my Jeanneau is now 10 years old and it hasn't missed a beat as they say.

Base in stainless steel AISI 316 and anodized aluminium in hard oxide. Without drum. Integrated sensor and magnet for chain counter.Manual Free-Fall system.Inspection cover. IP67 Watertight motor.  Anodized aluminium gearbox.

Suitable for boats from 7 to 15 metres ( 23 - 49 ft )

Key Features

  • Vertical windlasses
  • Stainless steel Aisi 316 base
  • 10mm ISO Chain Calibrated
  • 12/14/16mm Rope
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for
    chain counter
  • Manual Free-Fall syste6
  • Inspection cover
  • IP67 Motor watertight (1500 W)
  • Anodized aluminium gearbox
Specification
  • Motor Power: 1500w
  • Motor Supply Voltage: 12V
  • Maximum Pull: 1100 Kg / 2425 lb
  • Maximum Working Load: 470 Kg / 1036 lb
  • Working Load: 160 kg / 353 lb
  • Current Absorption @ Working Load: 155 A
  • Maximum Chain Speed: 29,2 m/min, 95.8 ft/min
  • Maximum Chain Speed @ Working Load: 16,3 m/min, 53,5 ft/min
  • Weight: 20.4 Kg / 45 lb

Dimensions

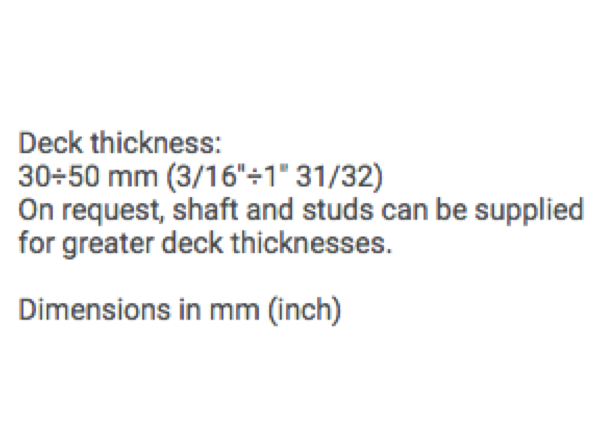

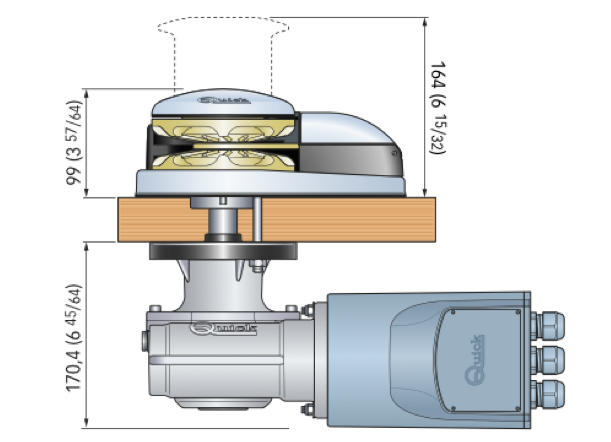

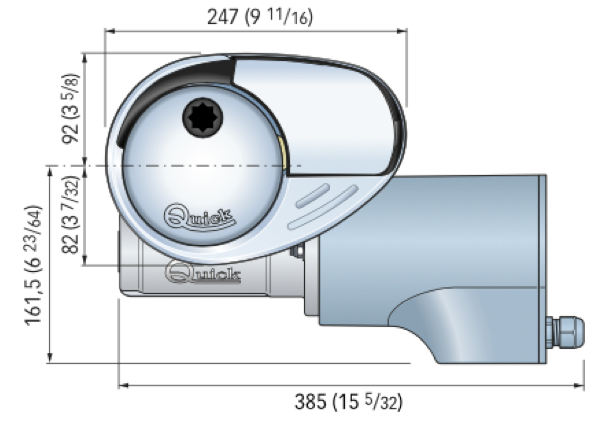

  • See attached images

Whats in the Box

  • Windlass
  • Contactor Box
  • Manual Lever
  • Seal Gasket
  • Drill Template
