Lowrance HOOK Reveal Fishfinder 7" Display Tripleshot ROW - SPECIAL OFFER WHILST STOCKS LAST

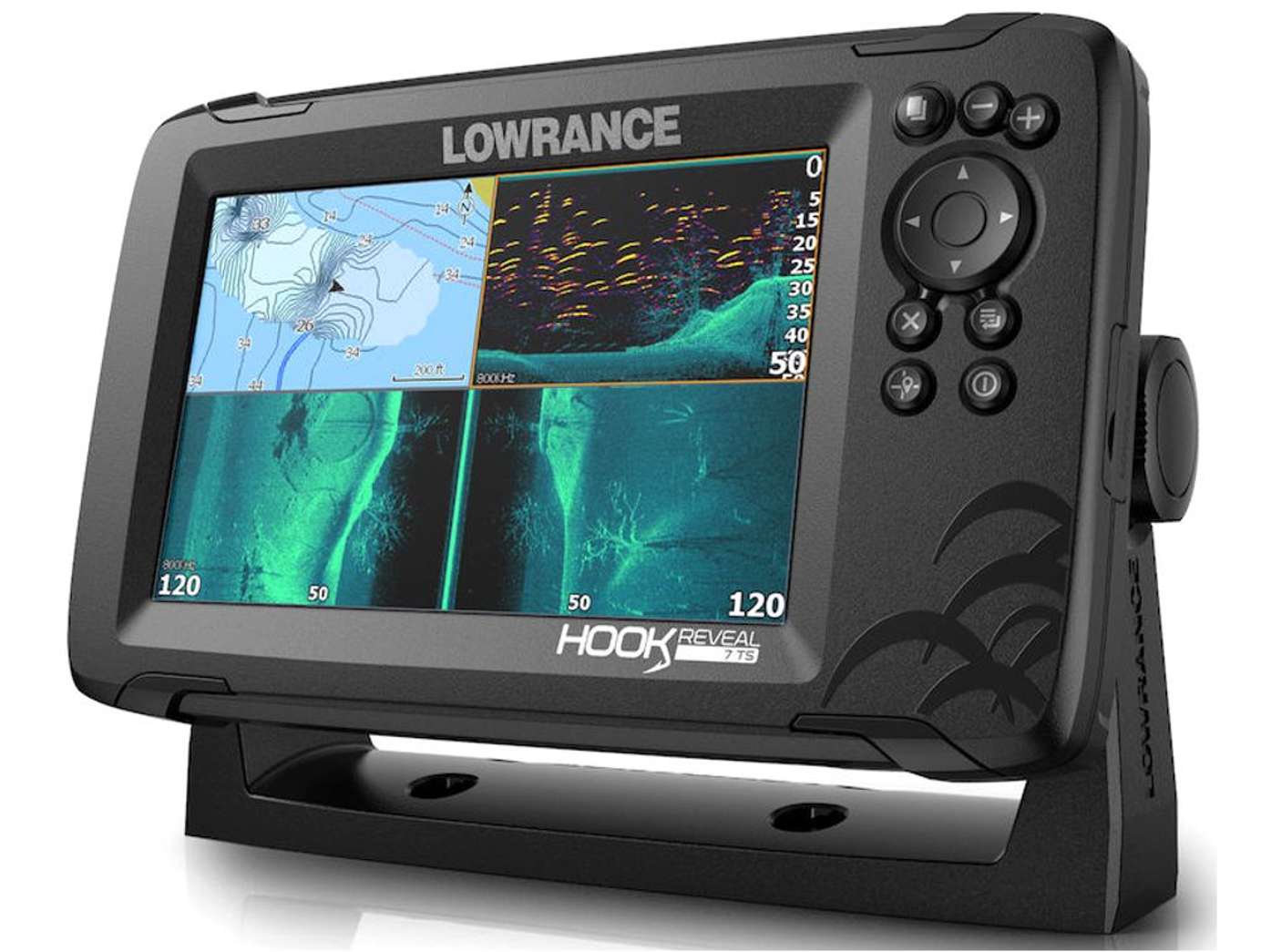

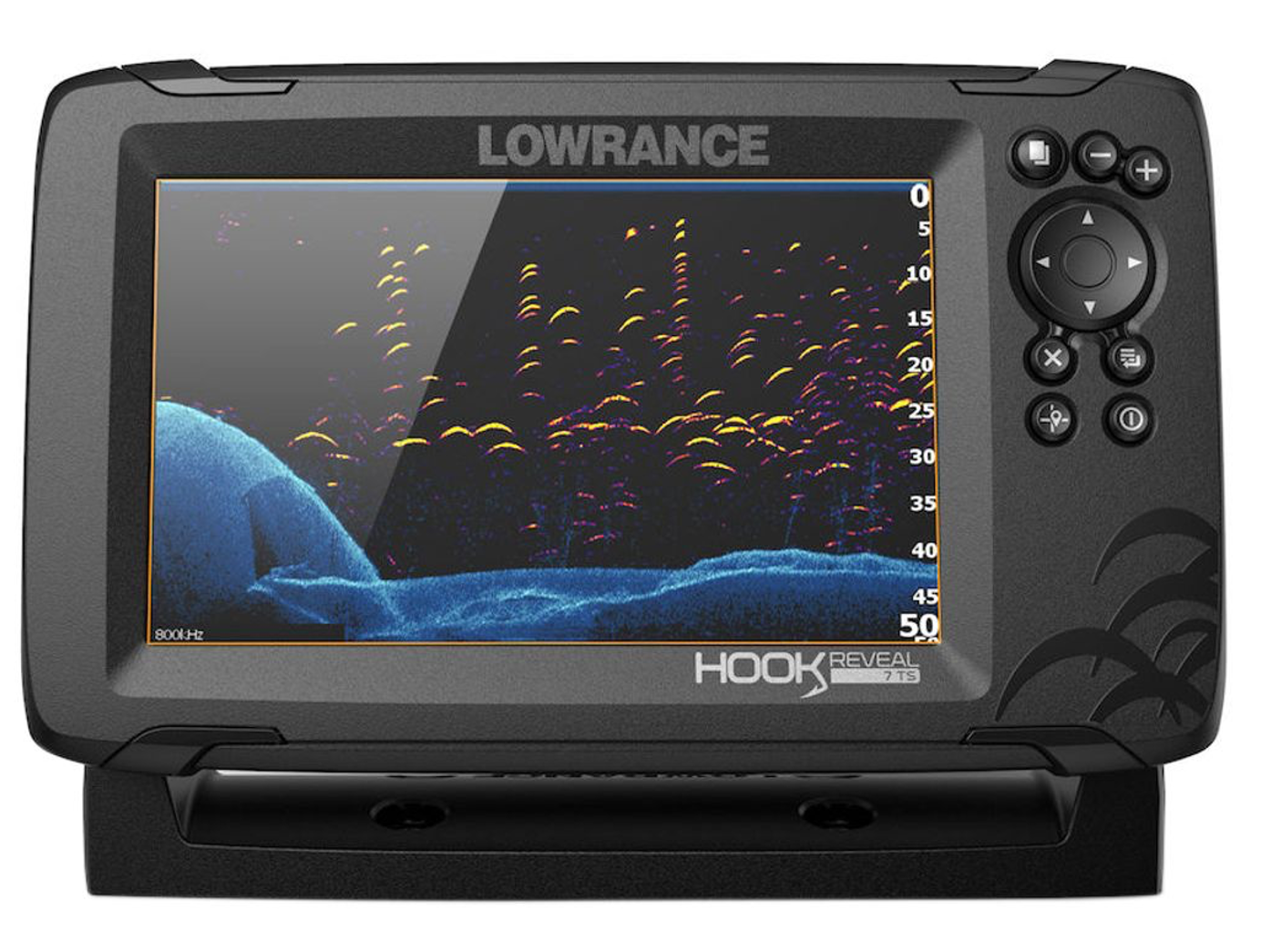

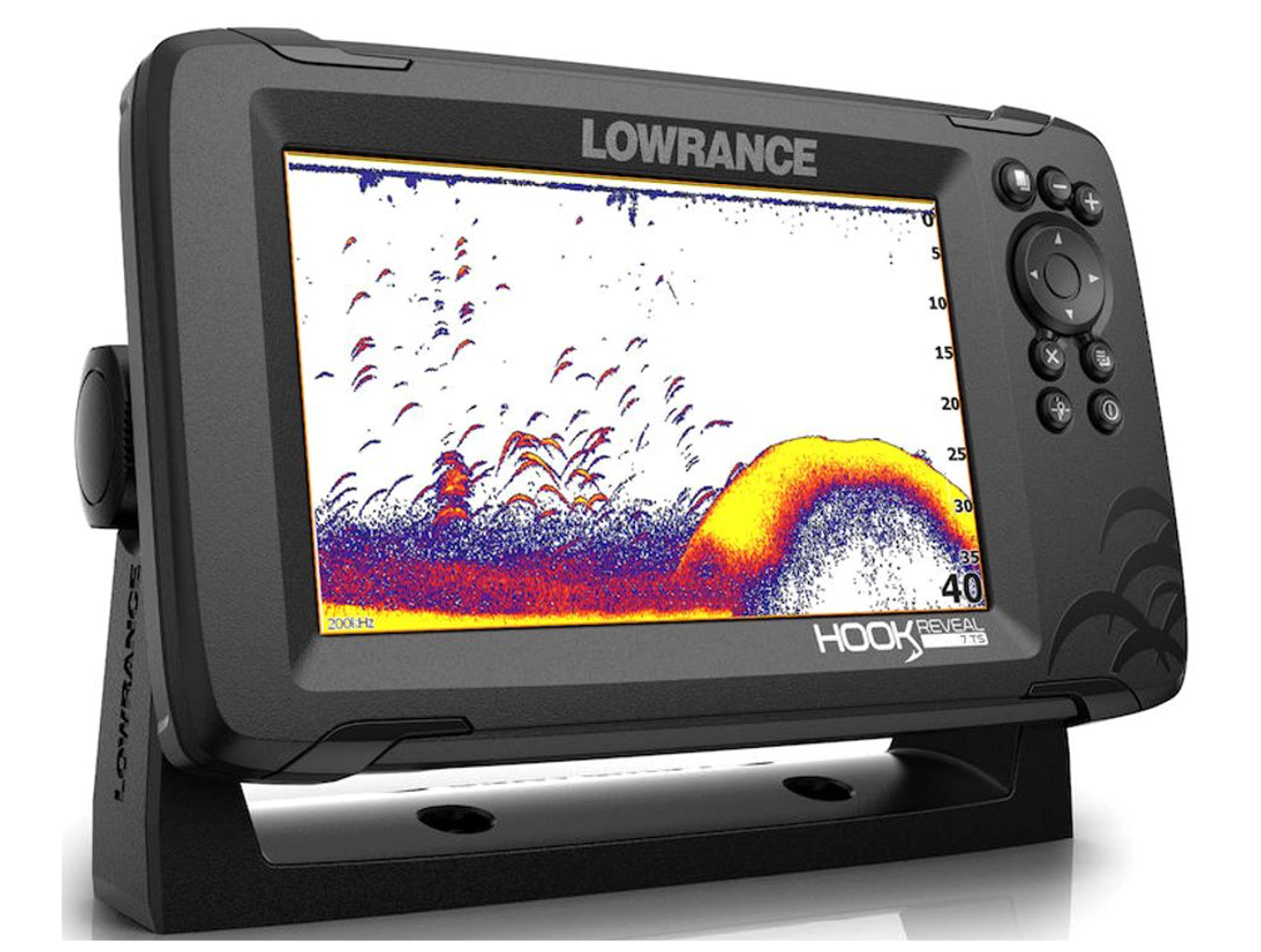

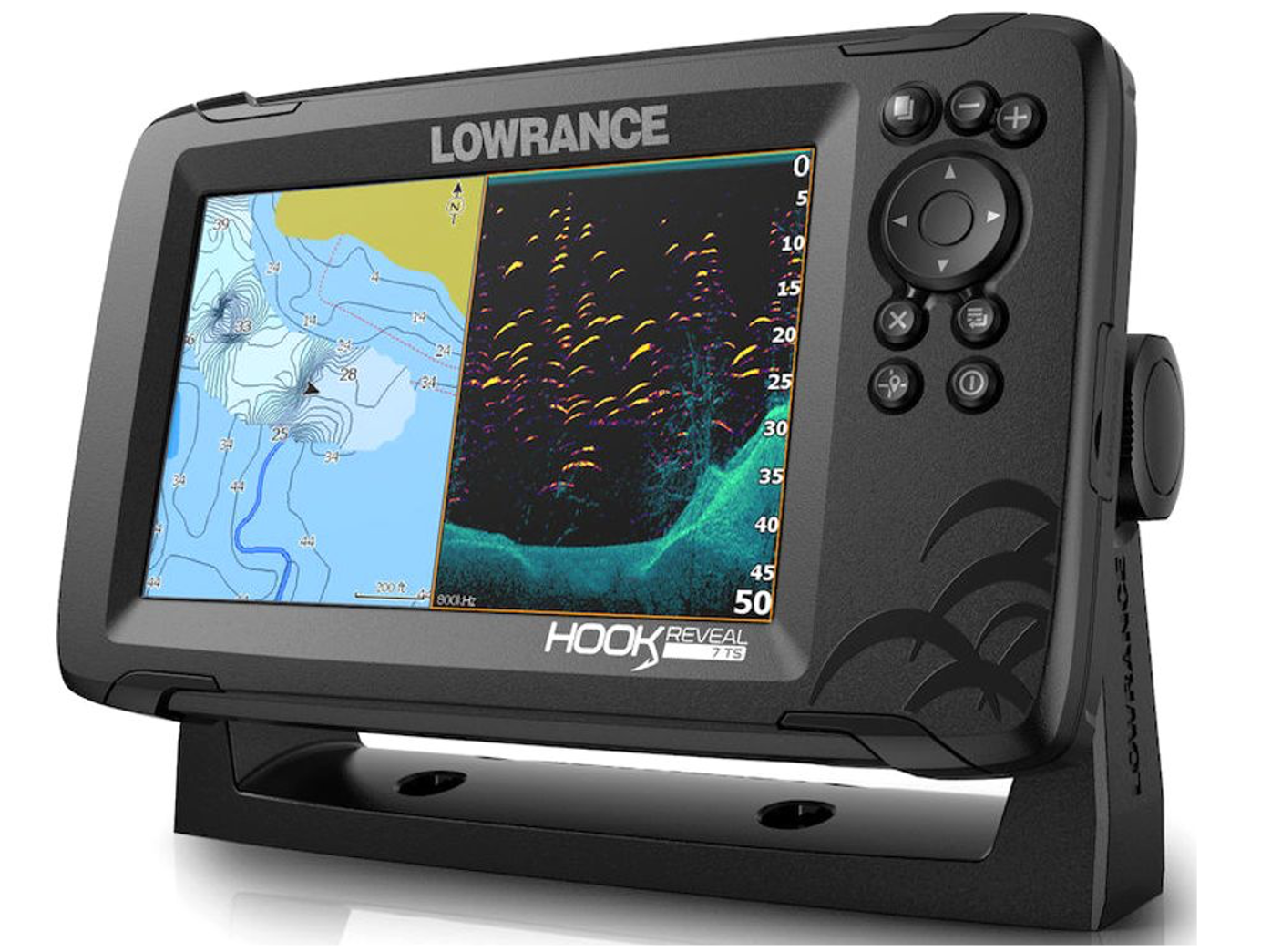

The Hook Reveal 7 Triplshot Row is one of Lowrance’s best-selling series of fishfinders/chartplotters with popular FishReveal™ feature and a seven-inch display.

The powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. Together, these provide the ultimate fishing view, allowing the angler to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.

Hook Reveal offers the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change.

This TripleShot model enables more water to be covered in less time with double the sonar coverage of other fishfinders. This model also comes with C-MAP chart compatibility, as well as Genesis Live real-time mapping allowing the user to map uncharted areas down to 1/2-foot contours.

Key Features

FishReveal™

7-inch display

Genesis Live Real-Time Mapping

Autotuning sonar

Double the sonar coverage of other fish finders

Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™

Preloaded worldwide basemap

SolarMAX™ Display

Fish-finding colour palettes

Optimised keypad with one-touch access to key features

Mapping options include C-MAP, C-MAP Genesis, Navionics® and more

microSD card slot

Easy front-dash or gimbal-bracket mount

Whats in the Box

• Hook Reveal 7 Fishfinder

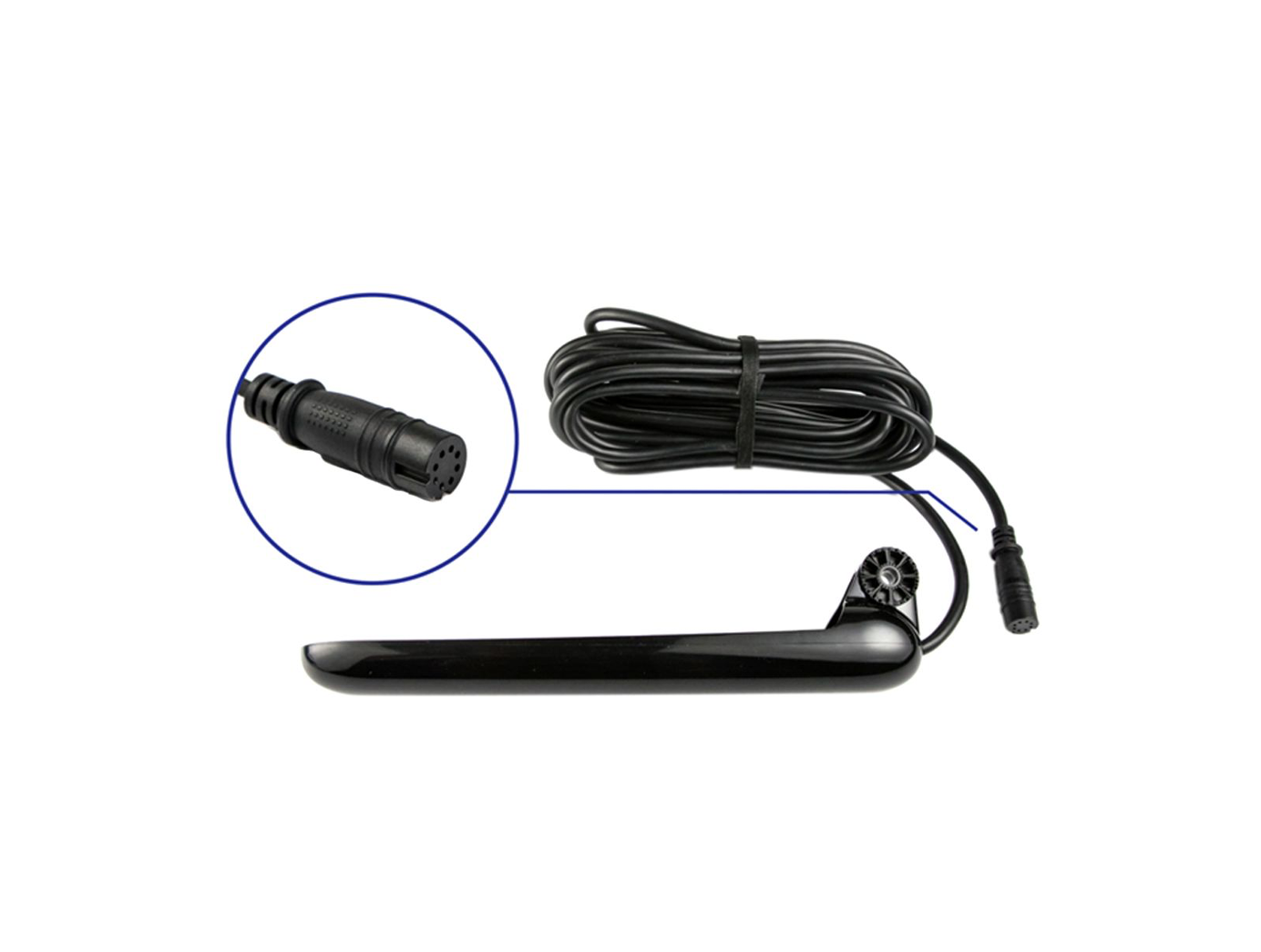

• TripleShot Skimmer Transducer (000-14029-001)

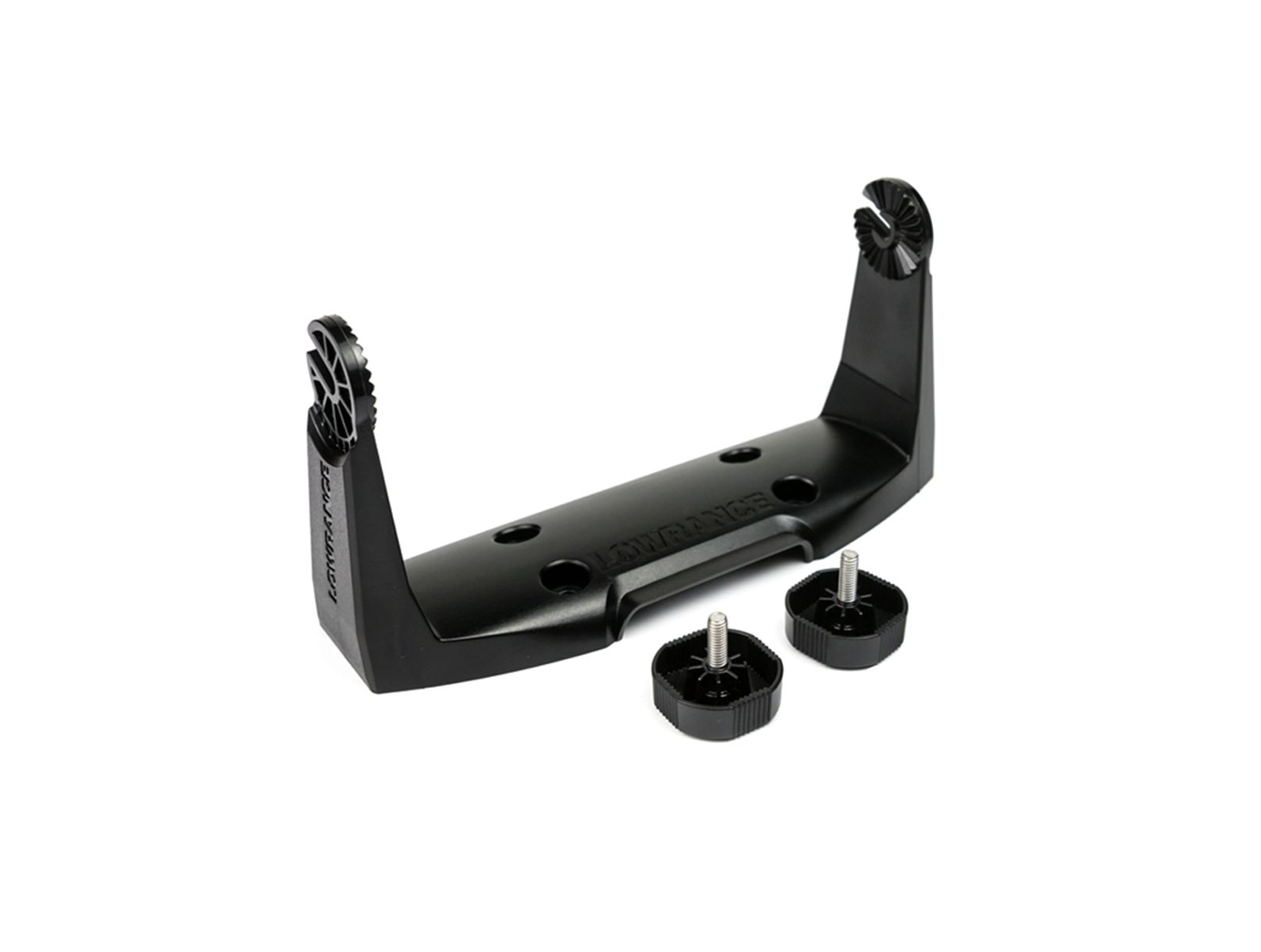

• Bracket & Knobs (000-11019-001)

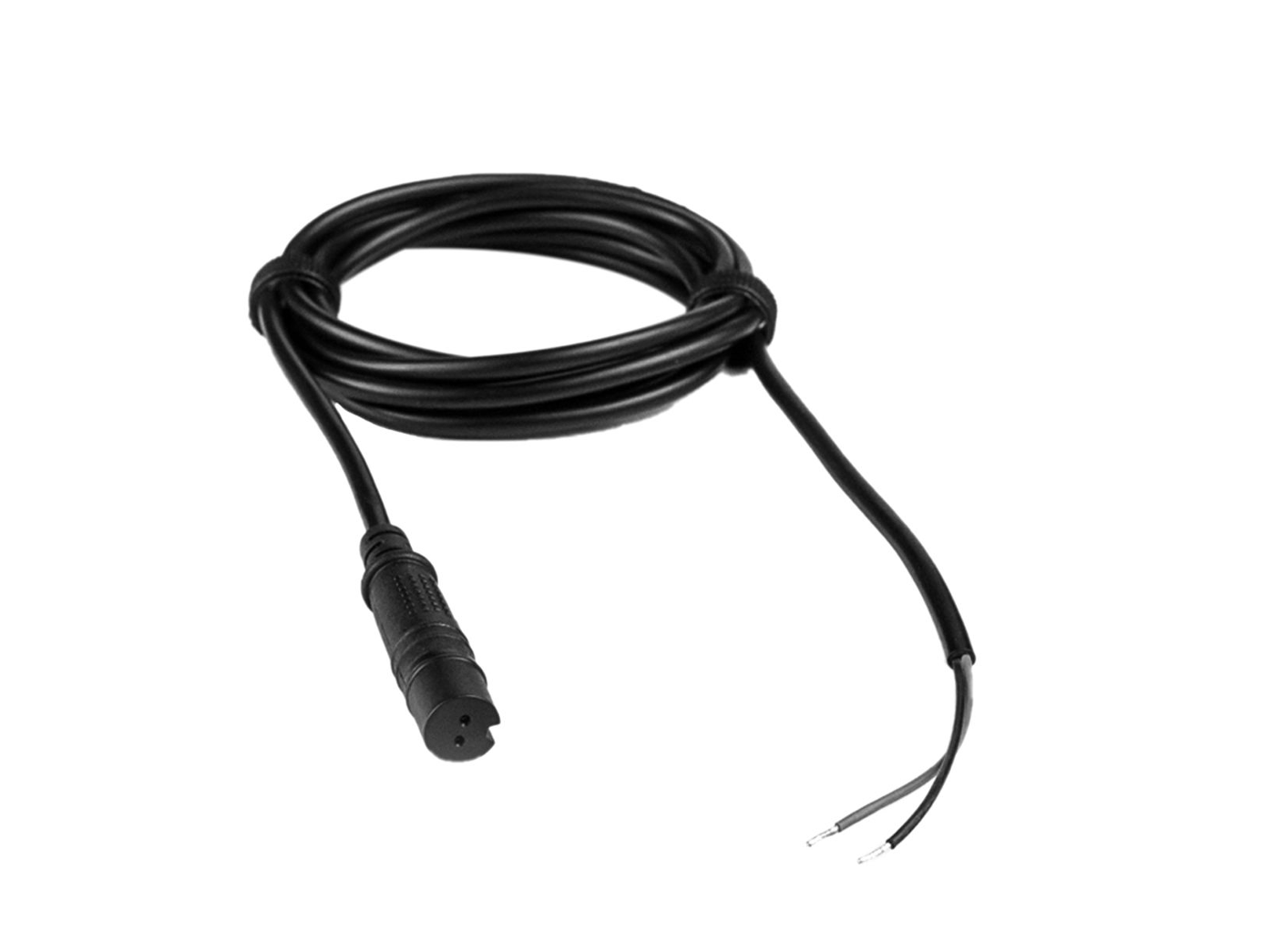

• Power Cable (000-14172-001)

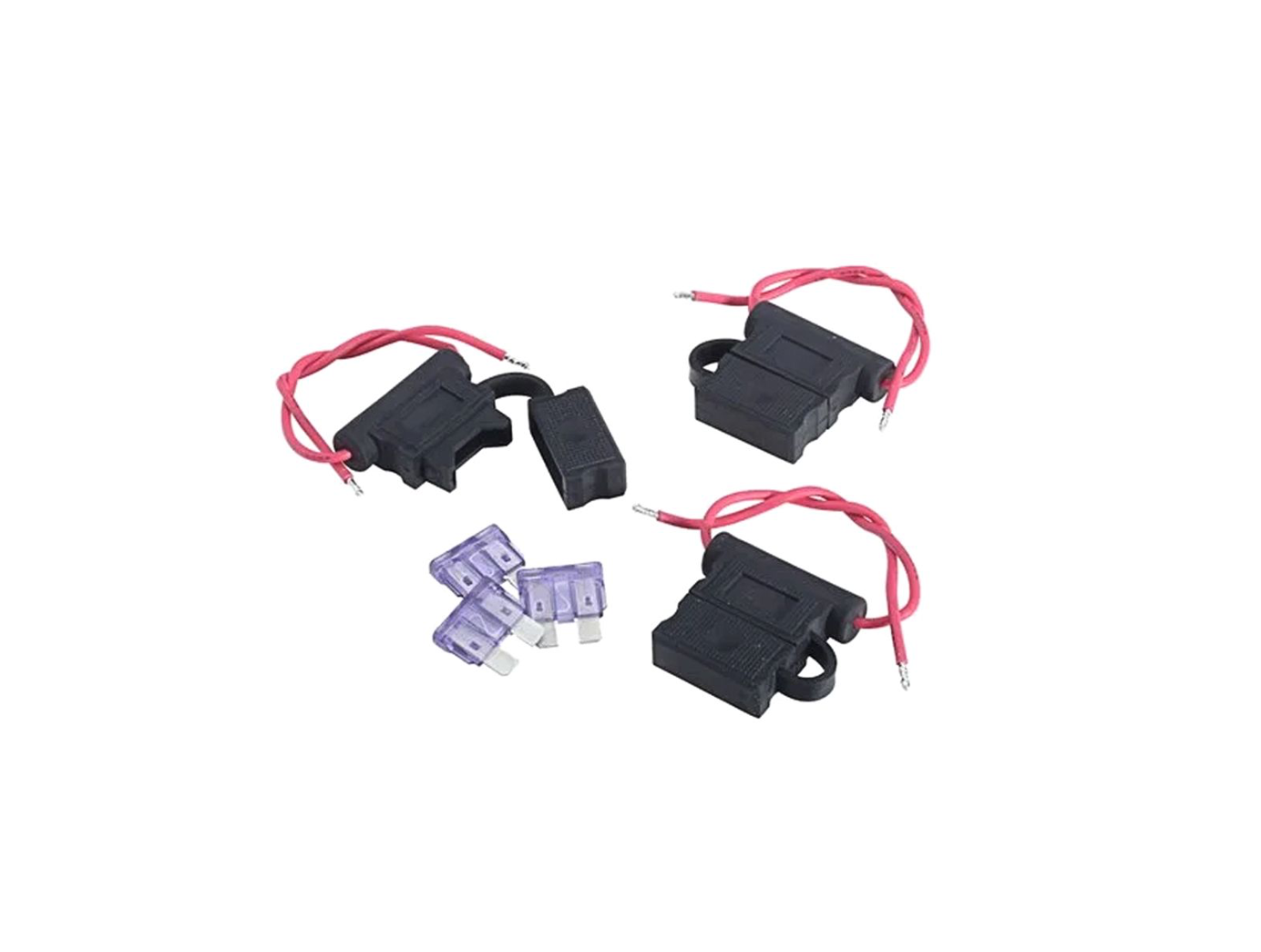

• HDS Fuse & Fuse Holder (000-0127-50)

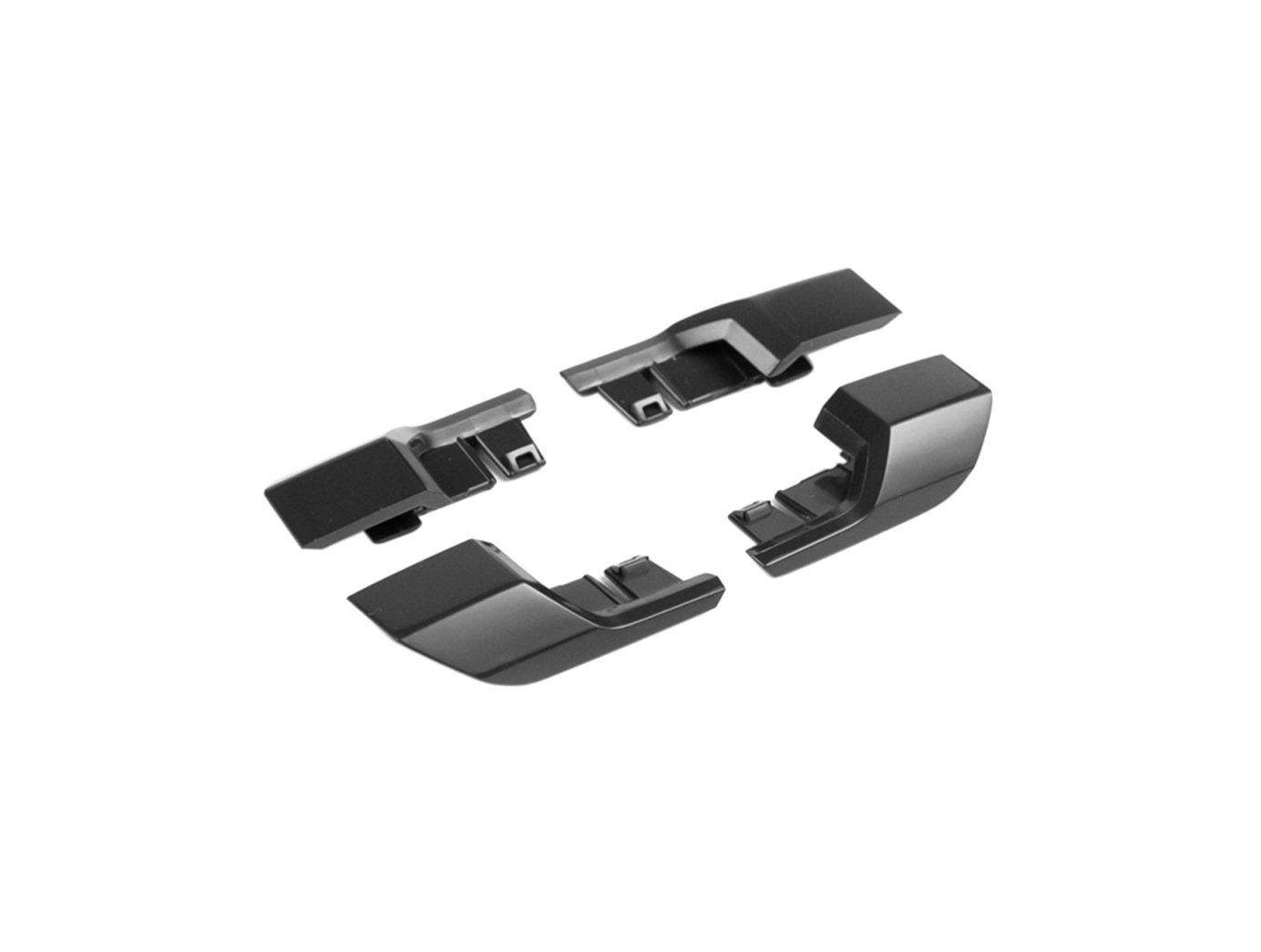

• Corner Clips (000-14191-001)

• Screen size: 7”

• Screen brightness: >1000 Nits

• Display resolution: 800 x 480

• Map: Preloaded Basemap

• Transducer: TripleShot

• Backlight Colour: Pure White LED

• GPS: 1 Hz GPS GLONASS WAAS EGNOS MSAS

• Shock vibration: 100,000 cycles of 20G

• Compass safe: 12" (300mm)

• Waypoints, routes, tracks: 3000 Waypoints, 100 Routes, 100 Trails

• Time to first fix: 30s

• Humidity: 60°C, 95% relative humidity (RH) for 18 hours

• Viewing Angles: 80° top/bottom, 85° left/right

• Charts supported: C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+) C-MAP Genesis Genesis Live C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners (No Photo/Satellite Overlay)

• Cartography included: C-Map World Base Map

• Correction: DGPS, WAAS

• Mounting type: Gimbal Bracket Front Dash Flush Mount

• Sonar Compatibility: Integrated: CHIRP Broadband DownScan SideScan

• Interface keypad: Keypad: 8-way directional keypad Zoom +/- Exit Enter/Menu Waypoint/Cursor Power/Light Pages

• SD Card Storage: Micro SD Card (32GB Max)
