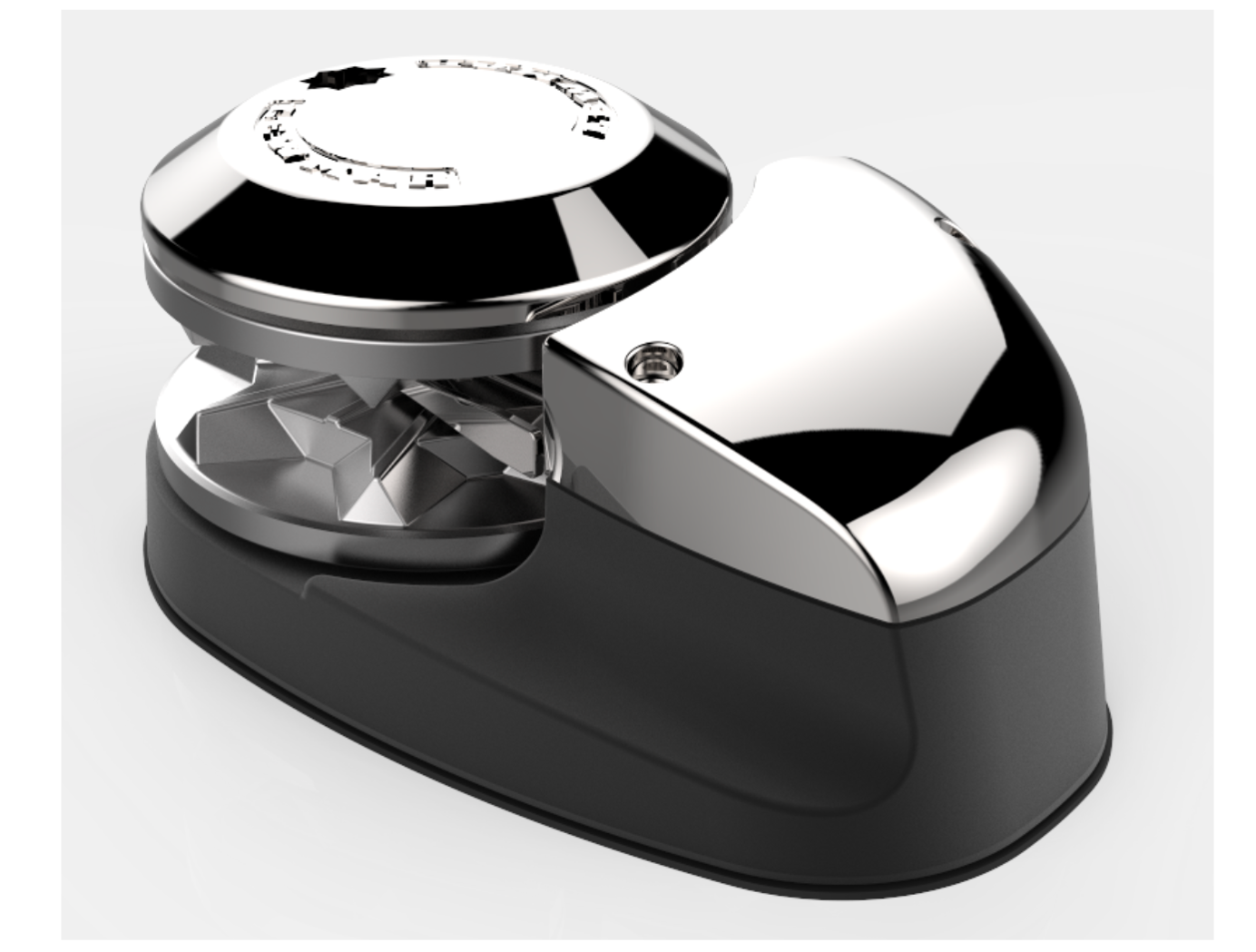

Lewmar CPX Go Vertical Windlass Gypsy Only - Complete Kits - 4 Models

£1,329.00 £1,752.53

The CPX vertical lightweight windlass range compliments the current V Range.
These windlasses feature the tried and tested worm-wheel gearbox architecture and use quality materials throughout - hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.

Key Features

15% lighter than comparable all-stainless windlass
New architecture with reduced parts
Easier to service
Highly reliable, light weight, high performance windlass • IP68 motor gearbox available on request

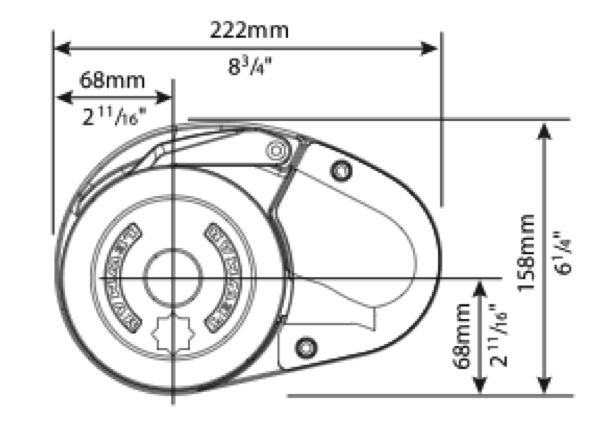

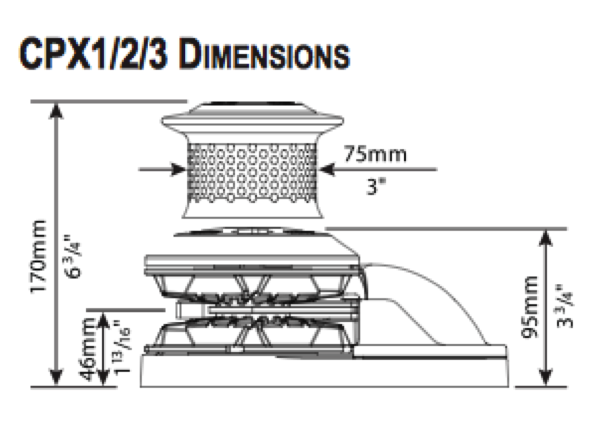

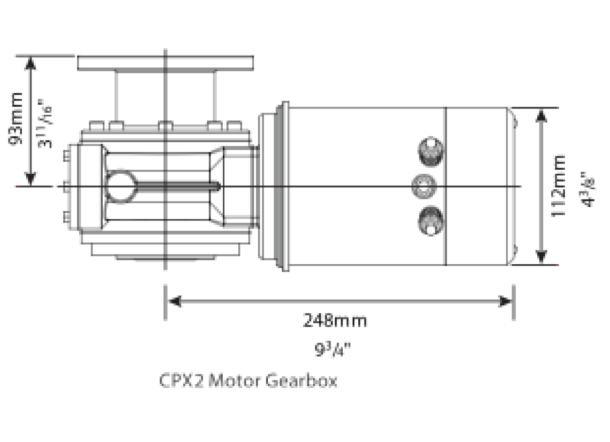

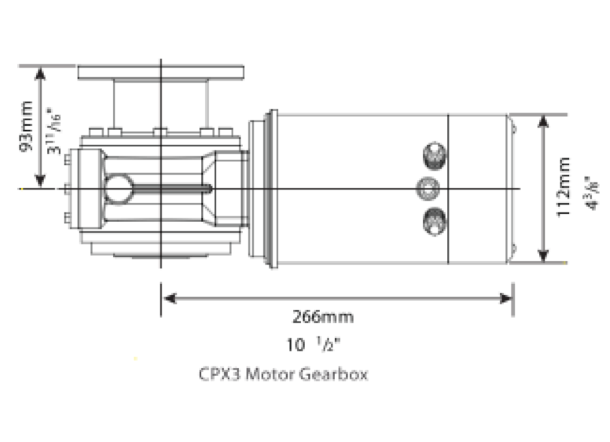

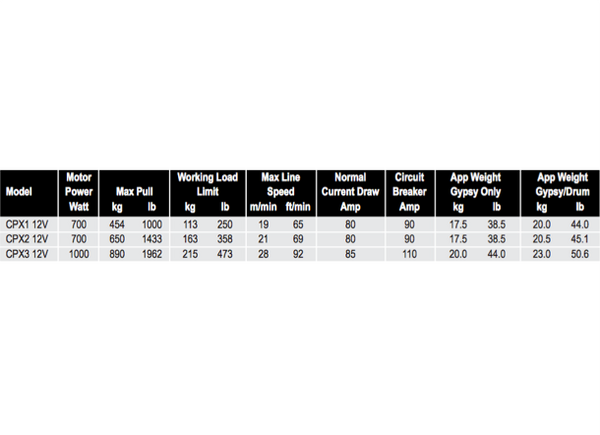

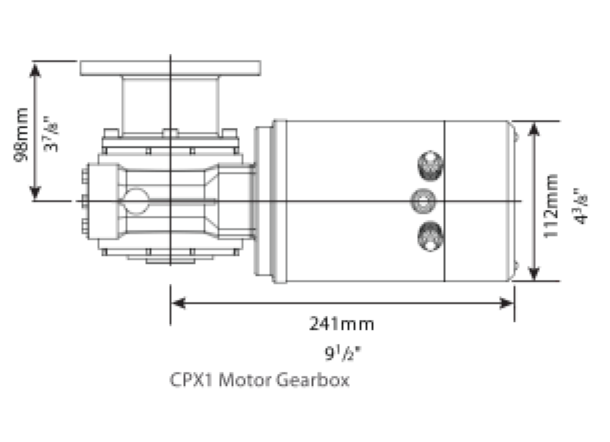

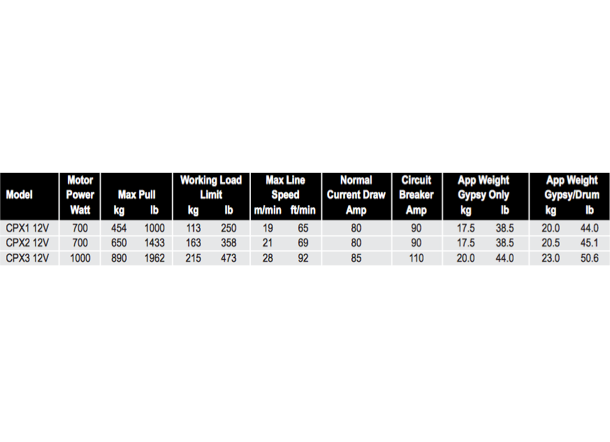

Specification, Dimensions & Weights

See attached images

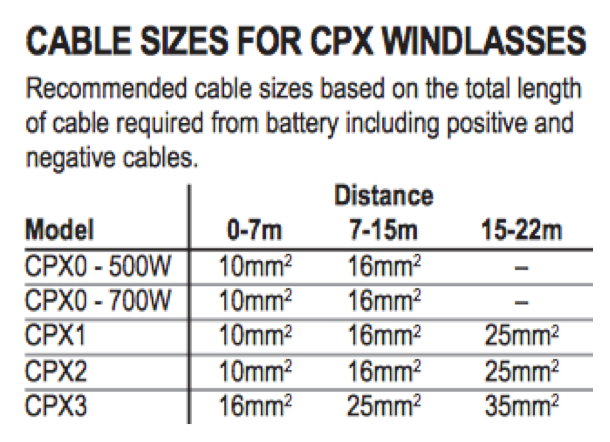

Electrical Cable Size: See attached image
Chain: 8mm DIN 766, 8mm ISO 4565, 5/16" G40
Chain: 10mm DIN 766, Campbell 3/8" S4

Models

Lewmar CPX1 Go Vertical Windlass Gypsy Only Kit 12V, 700W, 8mm Chain
Lewmar CPX2 Go Vertical Windlass Gypsy Only Kit 12V, 700W, 8mm Chain
Lewmar CPX3 Go Vertical Windlass Gypsy Only Kit 12V, 1000W, 8mm Chain
Lewmar CPX3 Go Vertical Windlass Gypsy Only Kit 12V, 1000W, 10mm Chain
