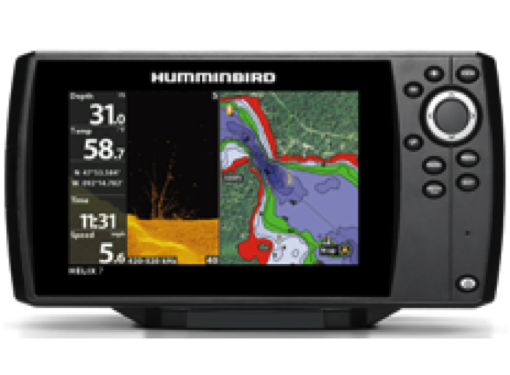

Discover fish and structure, then track their every move with the HELIX 7™ CHIRP DI GPS G2. See fish and vertical lure presentations by viewing CHIRP Down Imaging® and SwitchFire® Sonar side-by-side on the wide, 16-bit display. The reliable, internal GPS offers 2500 waypoints and 50 routes, so you can return to your most productive spots time and time again. A single, micro SD card slot delivers Humminbird® LakeMaster®, AutoChart™ and AutoChart™ Pro, as well as Navionics® +. Also has our new user interface and operating system.
Key Features, Techy Bits & Dimensions
Display Size - Diagonal: 7"
Display Pixel Matrix: 800H x 480V
Display Type: Color TFT
Display Colors Grayscale: 16-bit
Sonar Standard: CHIRP/Down Imaging/DualBeam PLUS
Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db
Standard Sonar Frequency: 200/455/455/800 kHz
Sonar Optional: 50/83 kHz
Target Separation: 2.5"
Power Output RMS: 500 Watts*
Power Output Peak to Peak: 4000 Watts*
Depth Capability: 600 ft
Temperature: Built In Transducer
Speed: GPS Speed Included
Backlight: LED
Unit Size - Gimbal Mount: 10.54"W x 5.44"H x 1.13"D
Mount A Type: Gimbal Mount
Unit Size - Indash Mount: 10.54"W x 5.80"H x 3.68"D
Mount B Unit Size2: Optional In-Dash
Mounting Options: Gimbal or Optional In-Dash
Transducer Standard: XNT 9 DI T
Transducer Mounting: Transom
Power Input: 10.8-20 VDC
Power Draw: 850 mA
GPS Receiver: Included
GPS Tracking: Included
GPS Chartplotting: Included
Waypoints, Routes, Tracks/Points: 2,500, 50, 50/20,000
Humminbird Mapping: Optional
Navionics+: Optional
Navionics Platinum+: Optional
Platinum Capable: Optional
C-Map 4D: Not Supported
360 Imaging: Not Supported
i-Pilot Link: Not Supported
HD Radar: Not Supported
NMEA 2000: Not Supported
5 Port Expansion Module: Not Supported
Precision GPS: Included
PC Connect: Optional
SwitchFire Sonar: Included
Screen Snap Shot: Not Supported
Sonar Recording: Included
Humminbird PC: Included
Upgradable Internal Software: Included
Split Screen Zoom: Included
Split Screen Bottom Lock: Included
3D Chart View: Included
Large Digits View: Included
Wide/Narrow Cone Split Screen: Included
Custom View Selections: Included
Custom Digital Readout: Included
View Preset Keys: Not Supported
Temperature Graph: Not Supported
Temperature Alarm: Included
Freeze Frame: Included
Instant Image Update: Included
Mark Structure on Sonar: Included
Selective Fish ID+: Included
Real Time Sonar: Included
Triplog: Included
X-Press Menu System: Included
Card Reader Available: Yes
# Card Slots: 1
