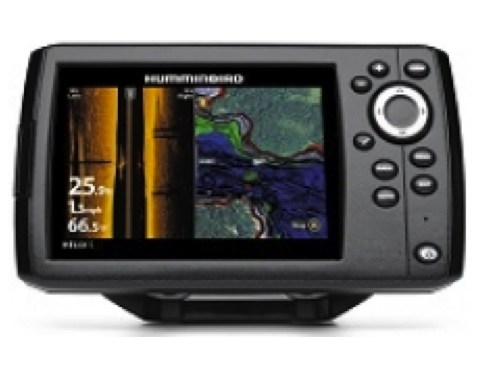

Humminbird HELIX 5 SI GPS G2 Fishfinder/Plotter 5"

£539.99 £569.99

The HELIX 5 CHIRP SI GPS G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. CHIRP Side Imaging/Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with built-in UniMap cartography with a micro SD card slot for optional maps or for saving waypoints. Maximize your angling experience with the Humminbird HELIX 5 CHIRP SI GPS fishfinder GPS system

What’s in the Box

Display with Gimbal Mount (Optional Flush Mount available)
XNT 9 SI 180T Transom Mount Transducer with 6m (20ft) cable
Power/NMEA Leads
Instruction & Fitting Manual

Key Features / Techy Bits

Interface : Keypad Control (X- Press Menu System)
Display Size : 12.7cm Diagonal
Display Pixel Matrix : 800H x 480V
Display Type : Colour TFT
Display Colours / Greyscale : 256 Colours
Sonar - Standard : Side Imaging, Down Imaging, Dual Beam Plus
Sonar Coverage : 20°, 60 & (2) 85°@ - 10db (Total of 180°)
Sonar Frequency : 200/83/455khz
Target Seperation : 6cm
Power Output (Max) : 500 Watts (RMS), 4000 Watts ( Peak to Peak)
Power Draw : 615 mA
Depth Capability : 30 . 48 M (SI), 457.2 M
Water Surface Temperature : Built-In-Transducer
Speed : GPS Speed Included
Backlight : LED
Waterproof Class : IPX5
Unit Size - Gimbal Mount : Width 19.7 cm, Height 17.1 cm, Depth 8.38 cm
Weight : 1.65kg (3.6lb)
Transducer : XNT 9 SI 180 T Transom Mount
Power Input : 10 - 20 VDC
GPS Receiver : Internal
GPS Trackplotting : Included
GPS Chartplotting : Included
Waypoints, Routes, Tracks/Points : 2,500, 45, 50/20,000
Humminbird Unimap : Included
Humminbird Lakemaster : Optional
Humminbird Autochart Pro : Optional
Humminbird Autochart : Optional
Navionics Gold/ Hotmaps : Optional
Switchfire Sonar : Included
Screen Snap Shot to Memory Card : Included
Wide/Nar
Humminbird PC : Included
Upgradeable Internal Software : Included
Split Screen Zoom : Included
Split Screen Bottom Lock : Included
3D Chart View : Included
Wide/Narrow Cone Split Screen : Included
Large Digit Views : Included
Custom View Selections : Included
Custom Digital Readout Selection : Included
Selectable Display Colours : Included
View Pre-Set Keys : Included
Temperature Alarm : Included
Freeze Frame : Included
Mark Structure on Sonar : Included
Selective Fish ID+ : Included
Real Time Sonar : Included
Sonar Echo Enhancement : Included
Trip Log : Included
Large Digit View : Included
