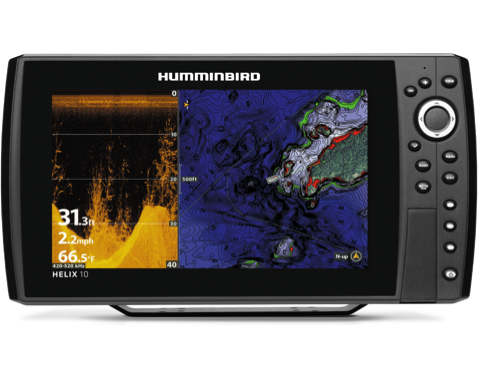

The HELIX 10 CHIRP DI GPS G2N features a large 10.1" display with LED backlight, CHIRP Down Imaging and CHIRP 2D sonar. Includes GPS chartplotting with built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping, and unit cover.
Key Features & Dimensions
Display Size - Diagonal: 10.1"
Display Pixel Matrix: 600V x 1024H
Display Type: Color TFT
Display Colors Grayscale: 16-bit
Sonar Standard: CHIRP Down Imaging/CHIRP Digital Sonar, DualBeam PLUS
Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db
Standard Sonar Frequency: 200/455/800 kHz
Sonar Optional: 50kHz, 83kHz & 50/Low Airmar CHIRP
Target Separation: 2.5"
Power Output RMS: 1000 Watts*
Power Output Peak to Peak: 8000 Watts*
Depth Capability: 350 ft (DI), 600 ft, 3500 ft*
Temperature: Built-In Transducer
Speed: GPS Speed Included
Backlight: LED
Unit Size - Gimbal Mount: 13.44"W x 7.12"H x 4.20"D
Mount A Type: Gimbal Mount
Unit Size - Indash Mount: 13.44"W x 7.12"H x 3.99"D
Mounting Options: Optional In-Dash Mounting Kit
Transducer Standard: XNT 9 DI T
Transducer Mounting: Transom
Power Input: 10.8-20 VDC
Power Draw: 2.7 Amps
i-Pilot Link: Optional
HD Radar: Optional
NMEA 2000: Optional
5 Port Expansion Module: Optional
Precision GPS: Included
Heading Sensor GPS: Optional
PC Connect: Optional
External GPS Receiver: Optional
AIS Compatability: Optional
SwitchFire Sonar: Included
Screen Snap Shot: Included
Sonar Recording: Included
Humminbird PC: Included
Upgradable Internal Software: Included
Split Screen Zoom: Included
Split Screen Bottom Lock: Included
3D Chart View: Included
Large Digits View: Included
Wide/Narrow Cone Split Screen: Included
Custom Digital Readout: Included
View Preset Keys: Included
Temperature Graph: Included
Temperature Alarm: Included
Freeze Frame: Included
Instant Image Update: Included
Mark Structure on Sonar: Included
Selective Fish ID+: Included
Real Time Sonar: Included
Triplog: Included
X-Press Menu System: Included
Card Reader Available: Yes
# Card Slots: 2
GPS Receiver: Included
GPS Tracking: Included
GPS Chartplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
Humminbird Mapping: Optional
Navionics+: Optional
Navionics Platinum+: Optional
Platinum Capable: Optional
C-Map 4D: Not Supported
360 Imaging: Optional
