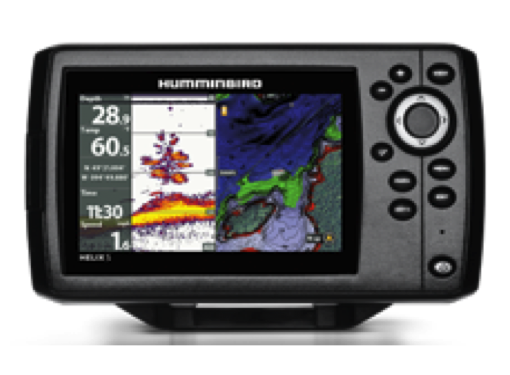

The HELIX 5 CHIRP GPS G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. CHIRP DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with built-in UniMap cartography with a micro SD card slot for optional maps or for saving waypoints. Maximize your angling experience with the Humminbird HELIX 5 CHIRP GPS G2 fishfinder system.
Key Features
Display Size - Diagonal: 5"
Display Pixel Matrix: 800H x 480V
Display Type: Color TFT
Display Colors Grayscale: 16-bit
Sonar Standard: CHIRP/DualBeam PLUS
Standard Sonar Coverage: 20° & 60° @ -10db
Standard Sonar Frequency: 200/83 kHz
Sonar Optional: 50/200 kHz
Target Separation: 2.5"
Power Output RMS: 500 Watts
Power Output Peak to Peak: 4000 Watts
Depth Capability: 1500 ft
Temperature: Built-In Transducer
Speed: GPS Speed Included
Backlight: LED
Unit Size - Gimbal Mount: 7.55"W x 4.64"H x 3.3"D
Mount A Type: Gimbal Mount
Unit Size - Indash Mount: 7.55"W x 4.28"H x 1.13"D
Mount B Unit Size2: Optional In-Dash
Mounting Options: Gimbal or Optional In-Dash
Transducer Standard: XNT 9 20 T
Transducer Mounting: Transom
Optional Sonar: CHIRP
Power Input: 10.8-20 VDC
Power Draw: 600 mA
GPS Receiver: Included
GPS Tracking: Included
GPS Chartplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
Humminbird Mapping: Optional
Navionics+: Optional
Navionics Platinum+: Optional
SwitchFire Sonar: Included
Humminbird PC: Included
Upgradable Internal Software: Included
Split Screen Zoom: Included
Split Screen Bottom Lock: Included
Large Digits View: Included
Wide/Narrow Cone Split Screen: Included
Custom View Selections: Included
Custom Digital Readout: Included
Temperature Alarm: Included
Freeze Frame: Included
Instant Image Update: Included
Selective Fish ID+: Included
Real Time Sonar: Included
Triplog: Optional
X-Press Menu System: Included
MMC Others: Micro SD
Card Reader Available: Yes
# Card Slots: 1
