£913.00

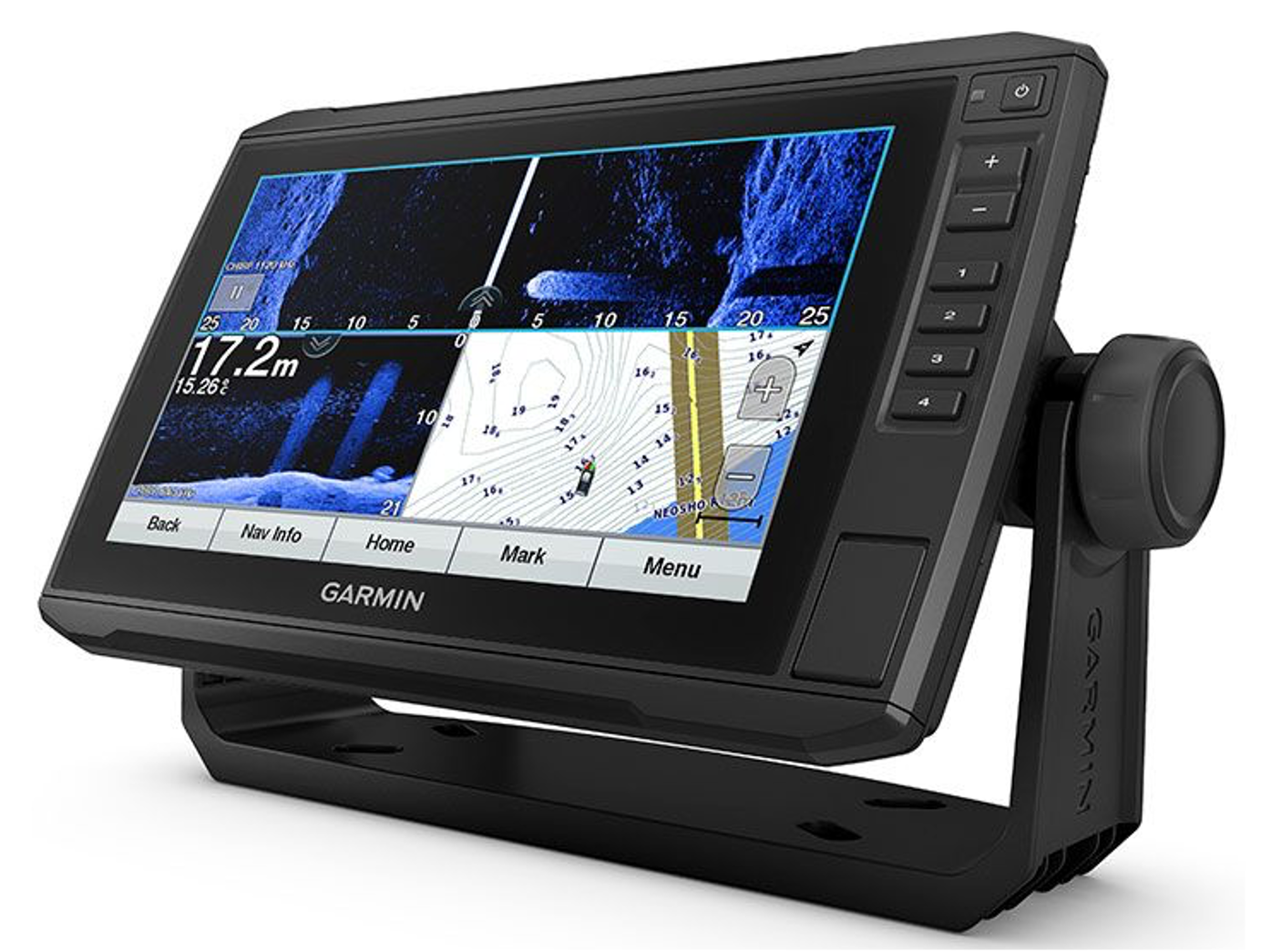

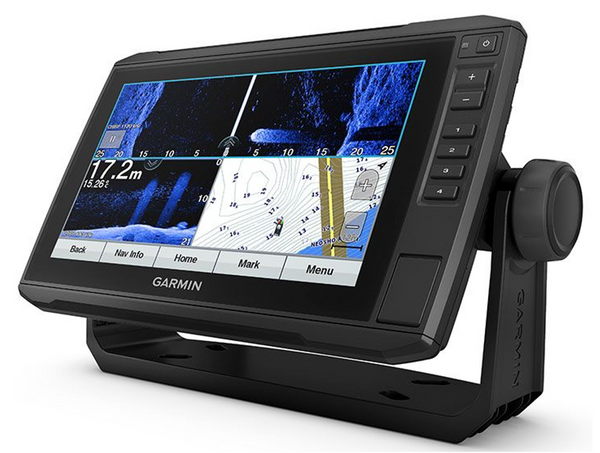

Find more fish using the ECHOMAP UHD 95sv combo. It features a bright, sunlight-readable 9” touchscreen with keyed assist plus support for Ultra High-Definition ClearVü and SideVü scanning sonars and Garmin CHIRP traditional sonar.
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded Navionics+ charts for the United Kingdom, Ireland and Northwest mainland Europe coast featuring integrated Garmin and Navionics content.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information - such as sonar, user data and charts - among them.
NMEA 2000 AND NMEA 0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.
ActiveCaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin QuickDraw Community data and more.
Force Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Specification
| General | |
|---|---|
| Dimensions | 26.3 x 16.5 x 6.5 cm |
| Touchscreen | ✓ |
| Input | Touchscreen with Keyed Assist |
| Display Size | 19.9 x 11.3 cm, 22.9cm (9") Diagonal |
| Display Resolution | 400 x 800 pixels |
| Display Type | WVGA Display |
| Weight | 1 Kg |
| Water Rating | IPX7 |
| Mounting Options | Bail, or Flush |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 1 microSD Card, Max: 32GB |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Built-in Receiver | ✓ |
| Receiver | 5 Hz |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| GPS | ✓ |
| Supports WAAS | ✓ |
