Frigomatic Milano 12-24v Air Cooled Condensing Set

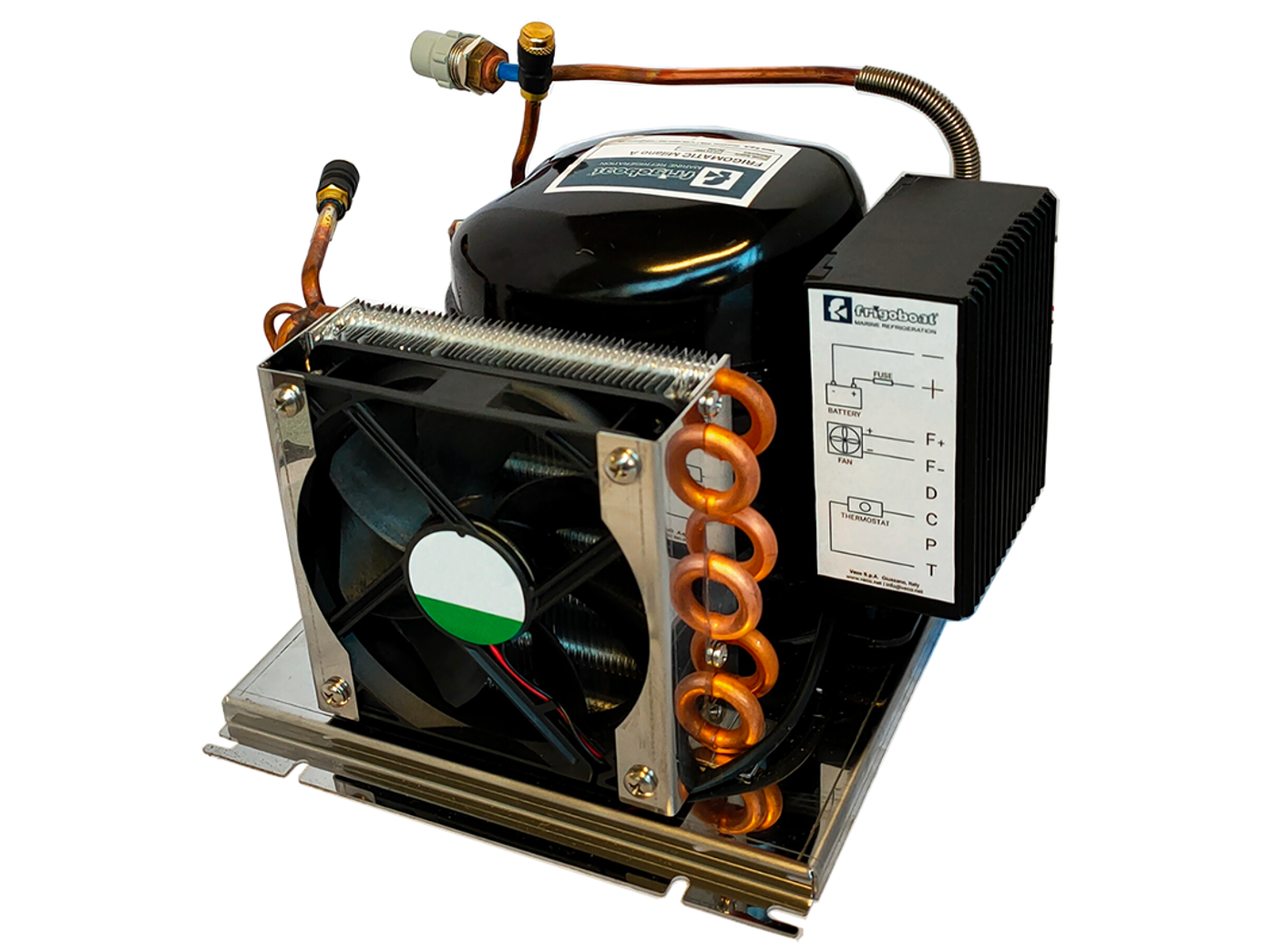

Frigomatic MIlano 12/24V air cooled compressor with horizontal forced air aluminium condenser, pre-charged with Frigoboat self sealing couplings.

Frigomatic’s most versatile condensing set. Compatible with all Frigomatic evaporator plates, the Milano range can be used for fridges from 40 litres to 340 litres and freezers from 20 litres to 120 litres.

Key Features:

  • Extremely compact dimensions
  • Supplied with stainless steel base/mounting bracket
  • Highly efficient copper coil aluminium finned forced air condenser
  • Horizontal condenser configuration
  • Pre-charged with R134a using Frigoboat self-sealing couplings
  • Stainless steel springs to reinforce all briased joints
  • 4 speed settings set by Frigomatic speed regulator board (from 2,000 – 3,500 rpm)

Direct Replacement for

  • Direct replacement for FM100 (E52270) FM200 (E52375) and Paris (E51135), Roma (E51275) or Madrid (E51380) condensing sets
  • Can also be used on non Frigoboat systems if a refrigeration engineer brazes the connections

Key Checks Before Purchase

  • Check evaporator plate is compatible/li>
  • Check refrigerant is R134a
  • Check Couplings are Frigoboat

 Technical Information

Weight 6 kg

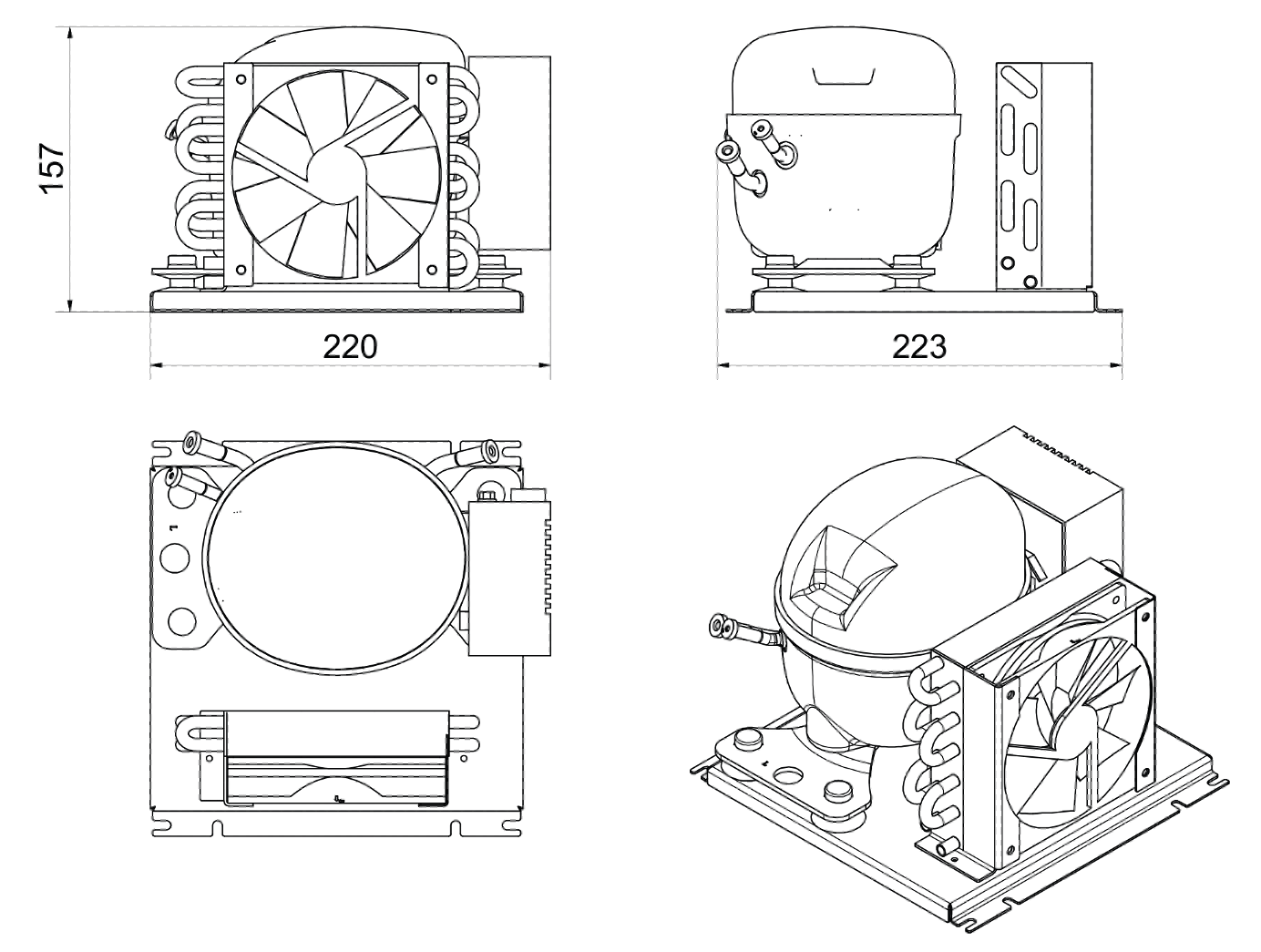

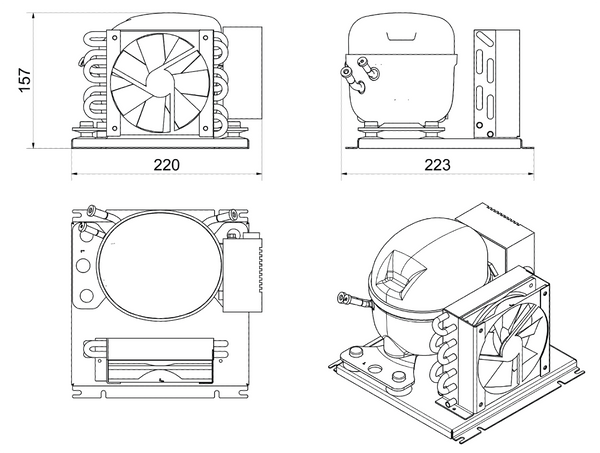

Dimensions 157mm (h) x 220mm (w) x 223mm (d)
Brand

Frigoboat

Max Volume Fridge

380

Max Volume Freezer

120

Voltage

12/24V

Refrigerant Charge

50 gr

Refrigerant

r134a
