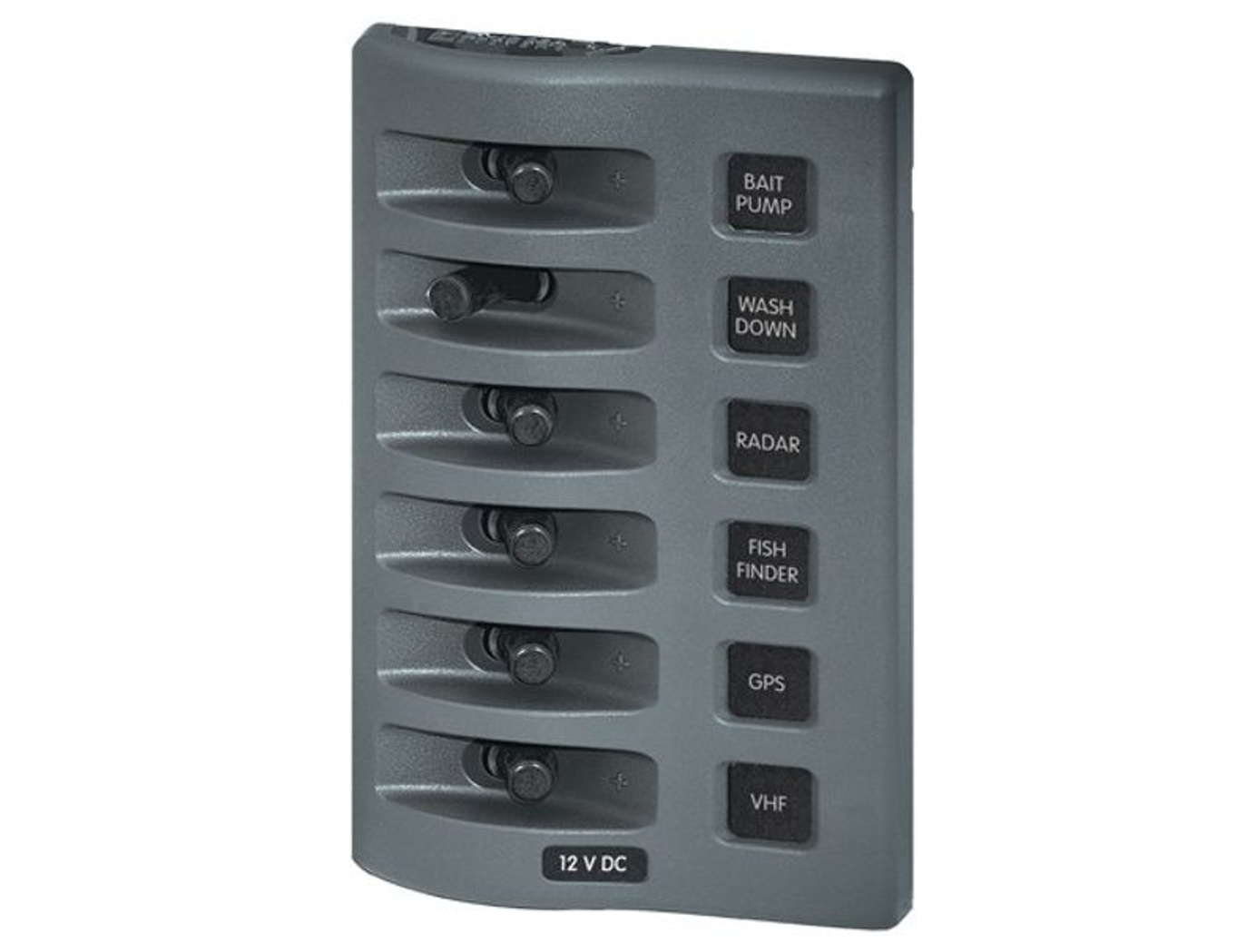

Blue Sea WeatherDeck 6-Position Waterproof Switch Panel (No Fuse/CB)

Designed for flybridge and open cockpit applications

Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck Switch Panel has all the rugged features of the proven WeatherDeck Panel family however does not have the added cost of backlighting and circuit protection.

Integrated switch guards reduce the risk of accidental switching

Panel can be mounted in four different orientations

Panel front rated IP67 when properly mounted with watertight mounting gasket

IP67 – protected against immersion up to 1 meter for 30 minutes

UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws

Contains Blue Sea:

6x 4138 WeatherDeck Toggle Switch Boot - Black

6x 4150 WeatherDeck Toggle Switch SPST - ON-OFF

4215 Waterproof DC Label Kit - 30 Black Square Labels

Specification

• MaterialReinforced PolycarbonateBrand
• Blue SeaSystems
• Voltage12V / 24V DC
• AmpsMax Operating: 15A @ 12V DC (per circuit), Panel Cumulative: 45A, Switch: 15A maximum
• Height152.40mm (6.00")
• Width98.55mm (3.88")
• Depth63.50mm (2.50")
• Dimensions Distance Between Mounting Centres Width 84.07mm (3.31"), Height 138.18mm (5.44")Protection
• RatingIP67
