Airmar DST800 P17 Smart Sensor 235kHZ NMEA 0183

£564.00 £644.96

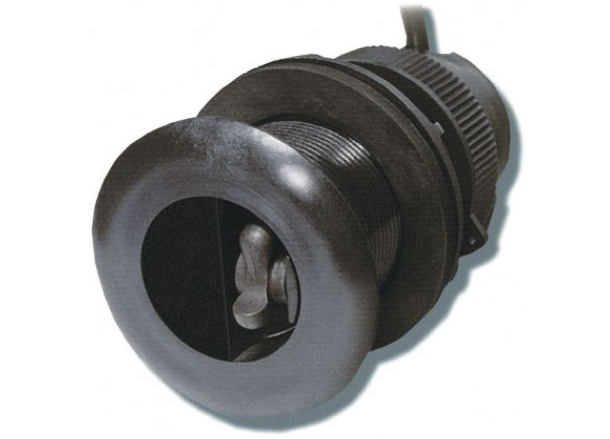

Airmar 44-072-2-41 DST800 P17 Smart Sensor NMEA 0183 With Bare Cable Ends

The DST800 is a Smart, TRIDUCER® Multisensor that offers depth, speed, and temperature functions in one compact thru-hull fitting. The DST800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA2000® display or network. Airmar's Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible network or display.

The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.

Specification

Depth, speed, and temperature in one compact housing
235 kHz frequency prevents mutual interference with other echosounders on the vessel
Depth performance from 500 mm (1.6') to 185 m (600')
A wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled
Plastic, bronze, or stainless steel housings available
Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Available as a Smart™ Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
Available in low-profile, countersunk, or beveled-edge housings
Cable Length 10 Metres

Category: Airmar DST800 P17 Smart Sensor 235kHZ NMEA 0183, depth transducer, marine electronics, speed transducer

Type: Airmar DST800 P17 Smart Sensor 235kHZ NMEA 0183
