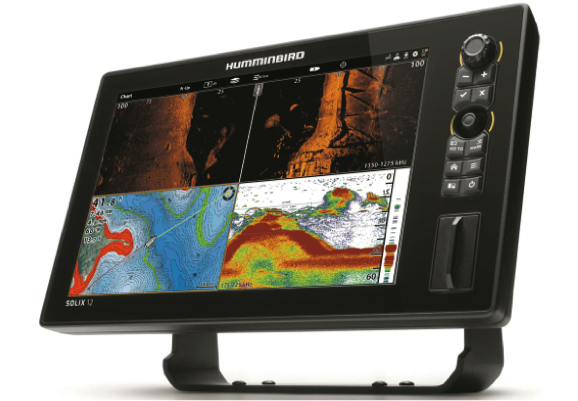

Humminbird Solix 12 Chirp Mega SI GPS - Plotter/Fishfinder

The SOLIX 12 SI features a large 12.1" display with LED backlight, CHIRP-ing MEGA Side Imaging, MEGA Down Imaging and 2D sonar. Includes GPS chartplotting, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping, and unit cover.

Key Features

• 455kHz Side Imaging provides 800 ft of side to side coverage.
• 455kHz Down Imaging works to a depth of 400 feet.
• 1.2 MHz Side Imaging provides 250 feet of side to side coverage.
• 1.2 MHz Down Imaging works to a depth of 125 feet *Optional 50 kHz transducers available for extreme deepwater.

Specification

• Display Size - Diagonal:12.1"
• Display Pixel Matrix:800H x 1280V
• Display Type:TFT Color
• Display Colors Grayscale:16 bit
• Sonar Standard:MEGA Side Imaging/MEGA Down Imaging, CHIRP Digital Sonar/DualBeam PLUS
• Standard Sonar Coverage:20°, 60° & (2) 86° & (2) 55° @ -10db (Total of 180°)
• Standard Sonar Frequency:83/200/455/800 kHz & 1.2 MHz
• Sonar Optional:50kHz, 50/Low Airmar CHIRP and SM3000
• Target Separation:2.5"
• Power Output RMS:1000 Watts*
• Power Output Peak to Peak:8000 Watts*
• Depth Capability:125 ft(DI) 400 ft(DI-455kHz)1500 ft, 3500 ft* & 5000 ft*
• Temperature:Built In Transducer
• Speed:GPS Speed Included
• Backlight:LED
• Unit Size - Gimbal Mount:13.82"W x 9.55"H x 4.79"D
• Mount A Type:Gimbal Mount
• Unit Size - Indash Mount:13.82"W x 8.21"H x 4.79"D
• Mount B Unit Size2:In-Dash
• Mounting Options:Gimbal or Optional In-Dash
• Transducer Standard:XM 14 20 MSI
• Transducer Mounting:Transom
• Optional Sonar:50kHz, 50/Low Airmar CHIRP and SM3000
• Power Input:10.8-20 VDC
• Power Draw:3.9 Amps
• GPS Receiver:Included
• GPS Tracking:Included
• GPS Chartplotting:Included
• Waypoints, Routes, Tracks/Points:10,000, 50, 50/20,000
• Humminbird Mapping:Optional
• Navionics+:Optional
• Navionics Platinum+:Optional
• Platinum Capable:Optional
• C-Map 4D:Not Supported
• 360 Imaging:Optional
• i-Pilot Link:Optional
• HD Radar:Optional
• NMEA 2000:Included
• 5 Port Expansion Module:Optional
• WeatherSense:Not Supported
• Precision GPS:Included
• Heading Sensor GPS:Optional
• PC Connect:Not Supported
• External GPS Receiver:Optional
• AS Interlink:Not Supported
• AIS Compatability:Optional
• SwitchFire Sonar:Included
• Screen Snap Shot:Included
• Sonar Recording:Included
• Humminbird PC:Included
• Upgradable Internal Software:Included
• Split Screen Zoom:Included
• Split Screen Bottom Lock:Included
• 3D Chart View:Included
• Large Digits View:Not Supported
• Wide/Narrow Cone Split Screen:Included
• Custom View Selections:Included
• Custom Digital Readout:Included
• View Preset Keys:Not Supported
• Temperature Graph:Included
• Temperature Alarm:Included
• Freeze Frame:Included
• Instant Image Update:Included
• Mark Structure on Sonar:Included
• Selective Fish ID+:Included
• Real Time Sonar:Included
• Triplog:Included
• X-Press Menu System:Included
• Card Reader Available:Yes
• # Card Slots:2
