Glomex RA111AIS Regatta VHF Antenna 9M Cable

The Automatic Identification System (AIS) is a monitoring system of naval traffic, useful for navigation safety with difficult meteorological conditions (fog or nocturnal navigation.) The AIS system operates on 2 expressly dedicated VHF channels (161.975 and 162.025 MHz) and allows the user to receive real time information about the traffic in the surrounding area. Glomex has planned and produced a range of calibrated antennas exactly for the specific VHF frequencies and for the AIS standards.

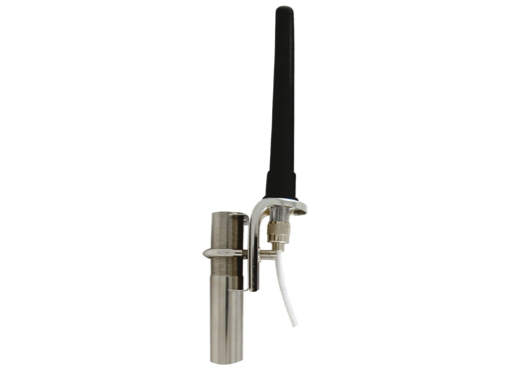

The RA111AIS antenna is protected by a tapered synthetic rubber tube and can be installed, on either sailboats or motorboats. Thanks to the V9181 support supplied, the RA111AIS can be installed in a vertical or horizontal position, on the mast or on the pulpit.

 Techy Bits, Dimensions & Weights

• Frequency Range: 161.975 - 162.o25 MHz
• Gain Average: 1 dB
• Impendance: 50 ohms
• Polarization: Vertical
• SWR: 1,2 at 162MHz
• Max input power: 50 W
• DC Ground: No
• Antenna Length: 140mm /5’’
• Antenna weight: 220g/7,76oz
• Termination: SO239 for PL259 male connector
• Warranty: LIFETIME

 Whats in the Package

• Aerial with S/S "L" Bracket
• Coaxial Cable 9M
• RA138 Threaded Protection
• BCN F to TNC M adaptor
• V9181 Stainless Steel Bracket
