B&G Vulcan 9" Chartplotter with Global Basemap

£990.00 £1,090.00

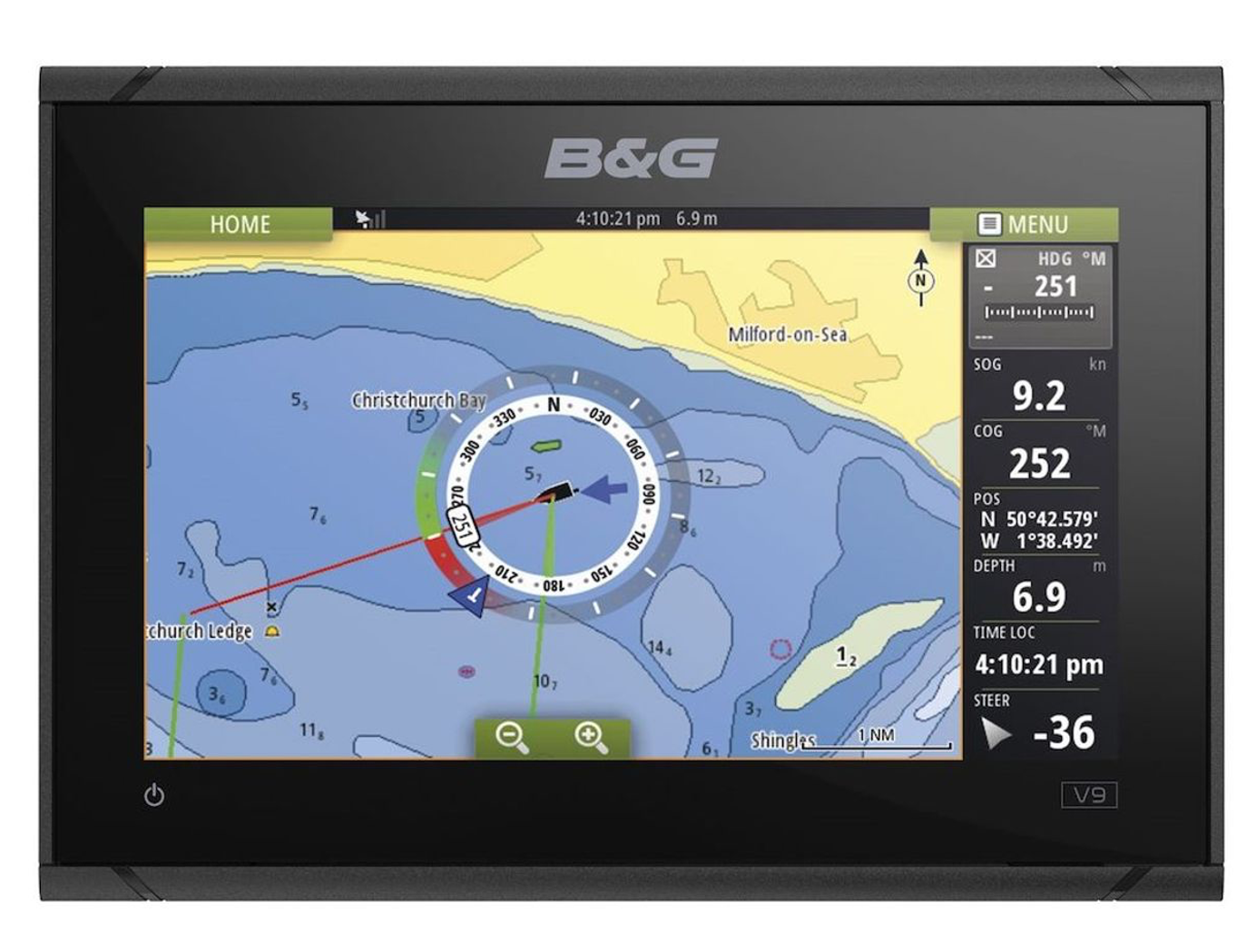

The Vulcan 9-inch sailing chartplotter from B&G features an easy-to-use, intuitive, multi-touch screen, using the familiar pinch to zoom and swipe to view functions.

The device’s award-winning sailing functions allow the user to see all key sailing data together on one screen or overlaid on charts for the ultimate navigational view.

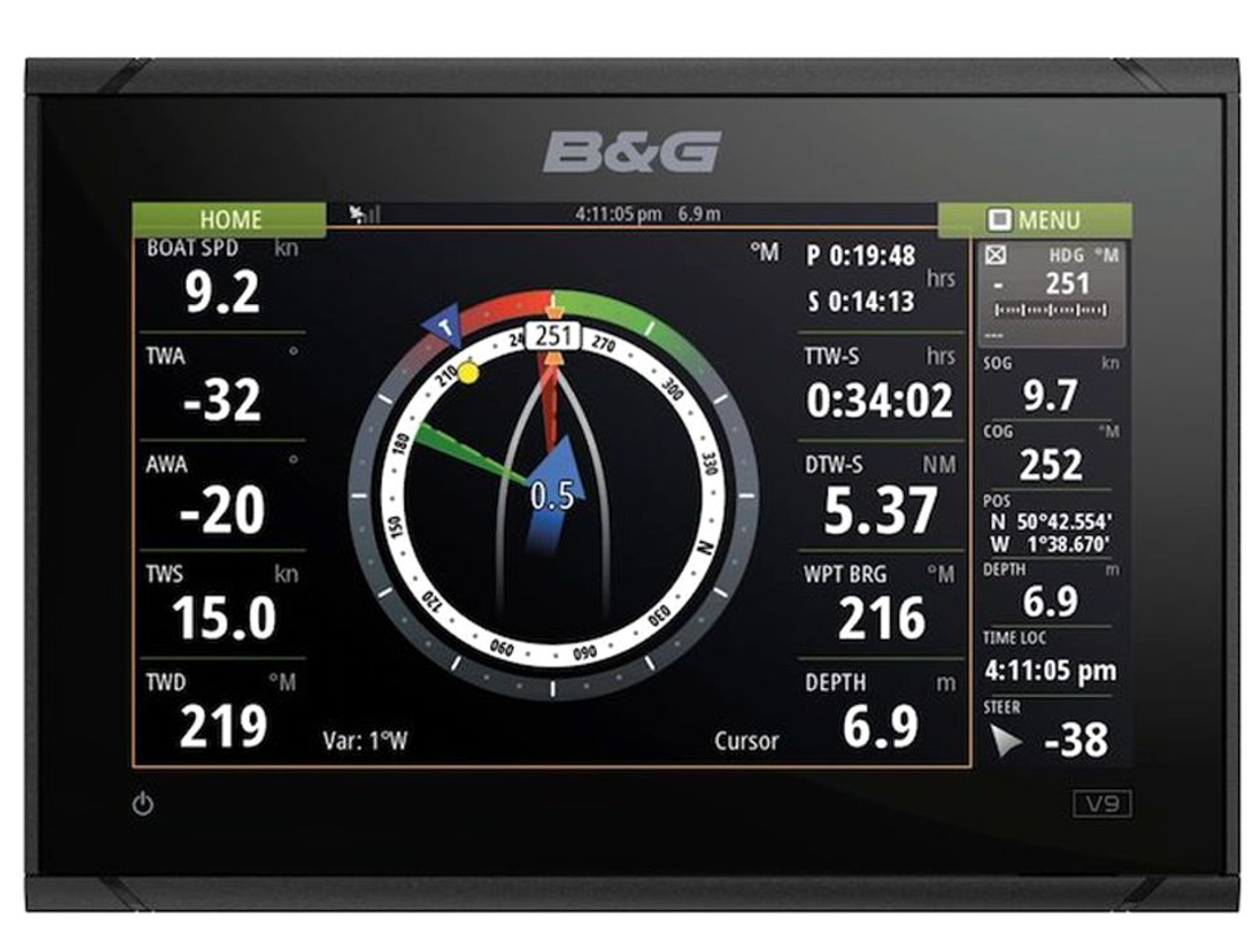

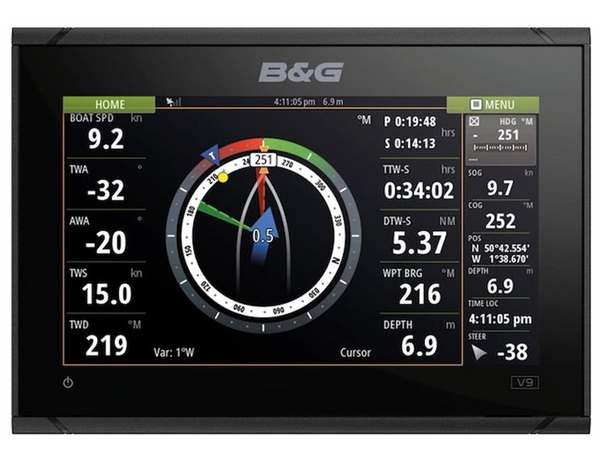

Sailing instruments and sensors can be added to activate B&G SailSteer, which will provide an intuitive graphic display of Boat Speed, Wind data, Heading, Tide, Wind Shift Sectors and Laylines.

It’s easy to add waypoints or plot a course; and with the B&G SailingTime feature, waypoint arrival times based on a sailing course and tidal effects can be seen, rather than a straight-line calculation.

The Vulcan system can be expanded via the industry-standard NMEA 2000® network. Sailing instruments and sensors can be added, as well as autopilot, Broadband Radar™, ForwardScan™ or SonicHub™ to create a system tailored to the user’s needs.

Vulcan can be used as a secondary autopilot controller providing easy access to Intelligent Sail Steering, manual and auto steering functions, and Smart Manoeuvre functionality combined with intuitive menus for ultimate control.

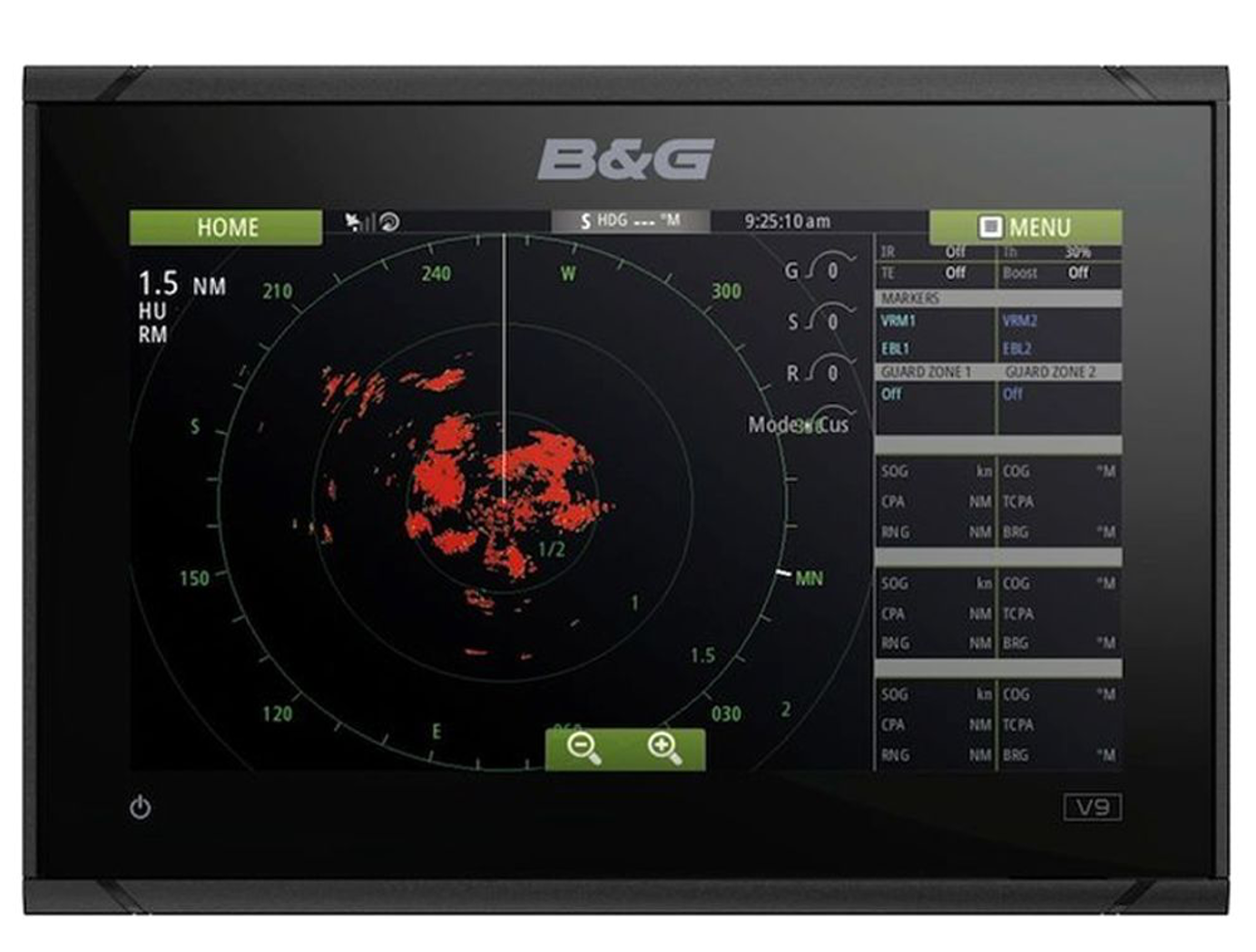

B&G Broadband 3G™ or 4G™ Radar integrates with Vulcan to keep watch and identify and track targets from 36 nautical miles away (4G) to right off the bow.

With the addition of a ForwardScan™ transducer, approaching depth information allows the user to see what lies ahead under the water with and explore poorly-charted or unfamiliar waters confidently.

Vulcan features built-in Wi-Fi and offers easy access to selected online services, including PredictWind weather forecasts and routing, via marina or smartphone hotspots. Or the Wi-Fi can be used to mirror the Vulcan 7 screen to a compatible smartphone or tablet, for a cost-effective dual-station solution.

Details

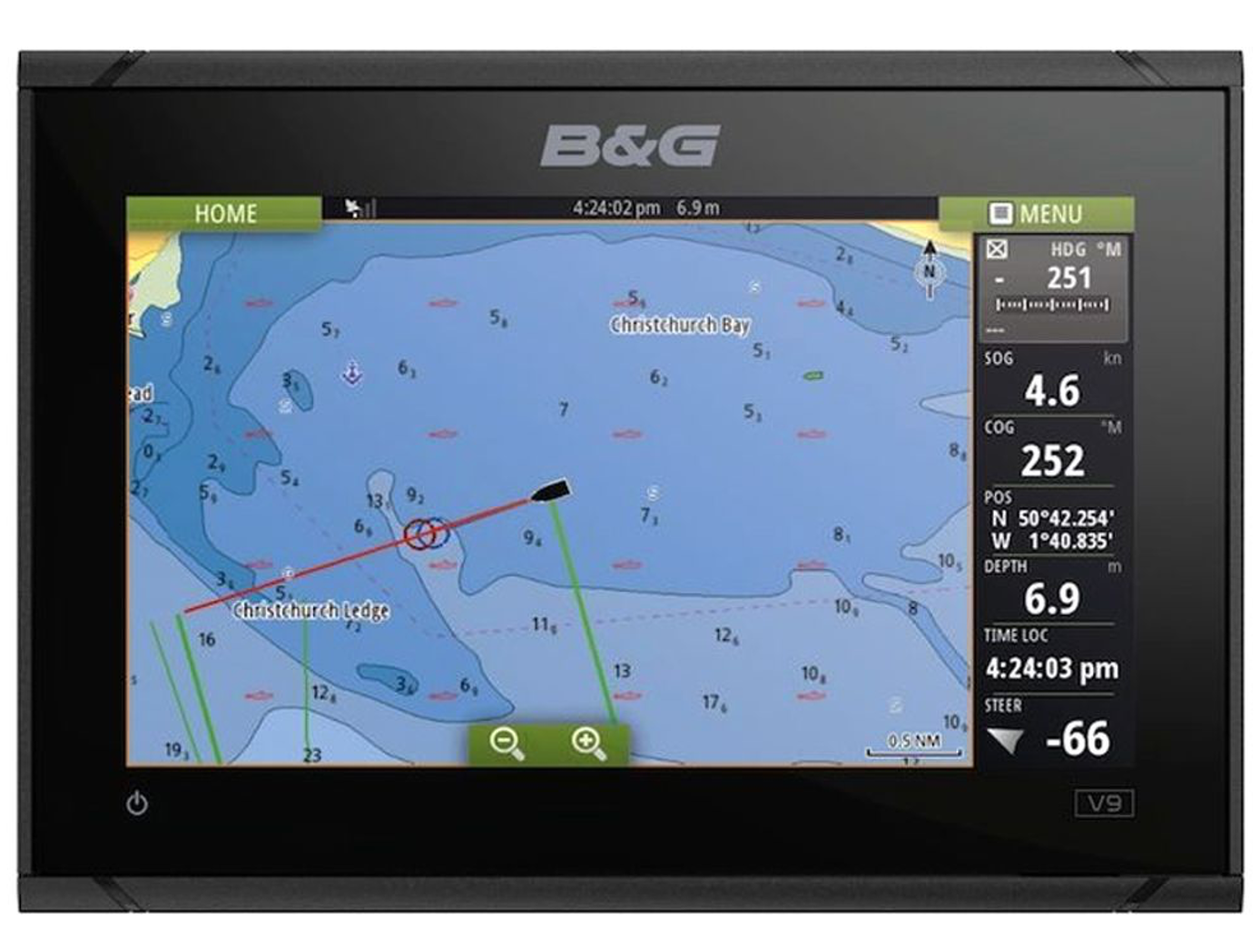

Full functioning Chartplotter - This powerful chartplotter makes entering waypoints & routes quick and simple. It comes with a high speed 10Hz Internal GPS antenna ensuring pinpoint position accuracy.

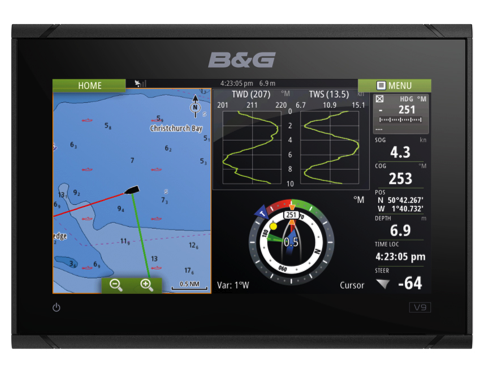

Dedicated sail/cruise features - Vulcan 9 chartplotter features a dedicated multi-touch sailing interface, from which you can access Award Winning SailSteer, laylines and Sailing Time options.

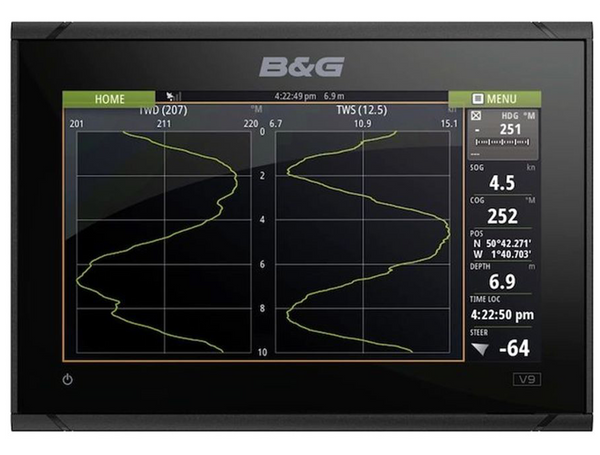

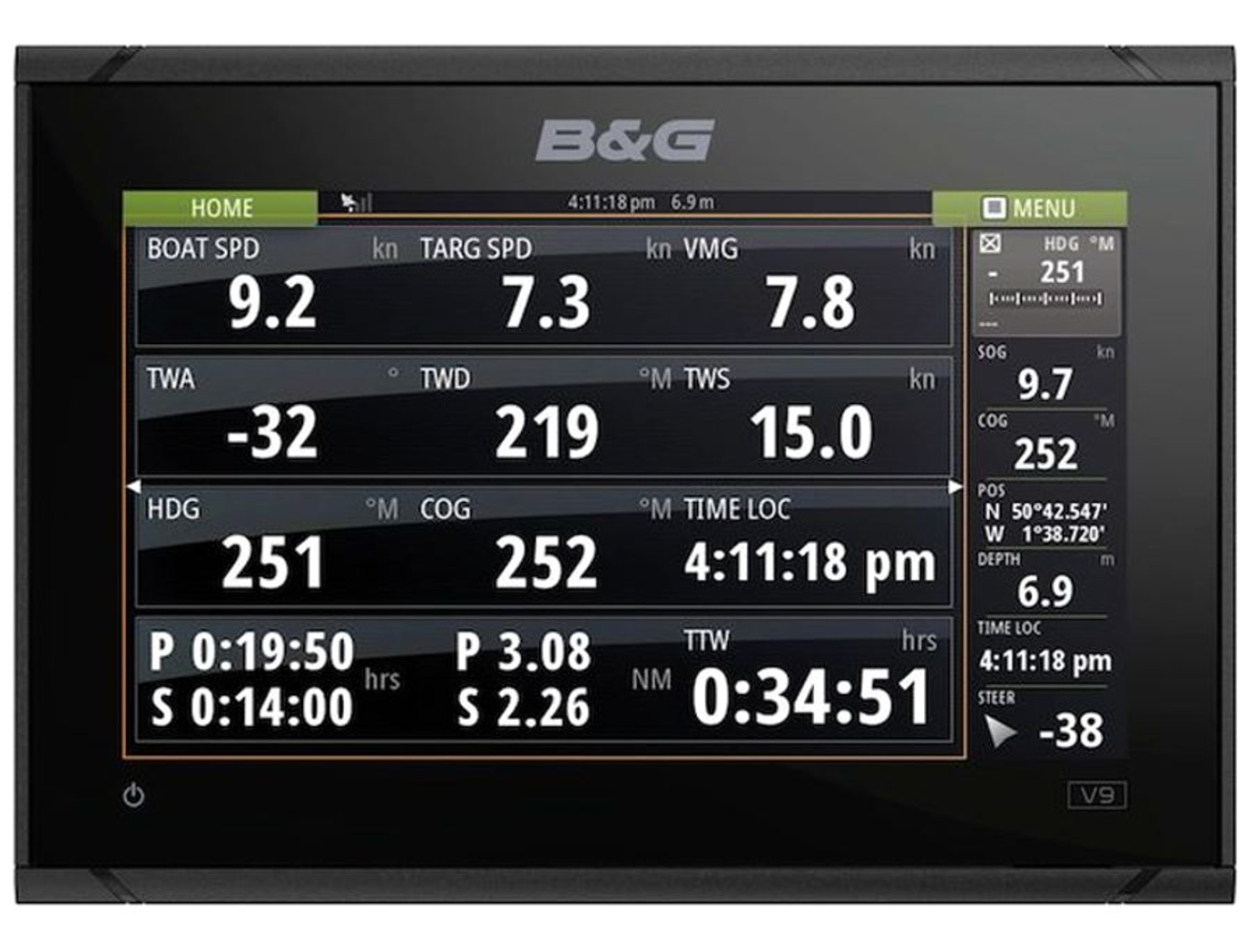

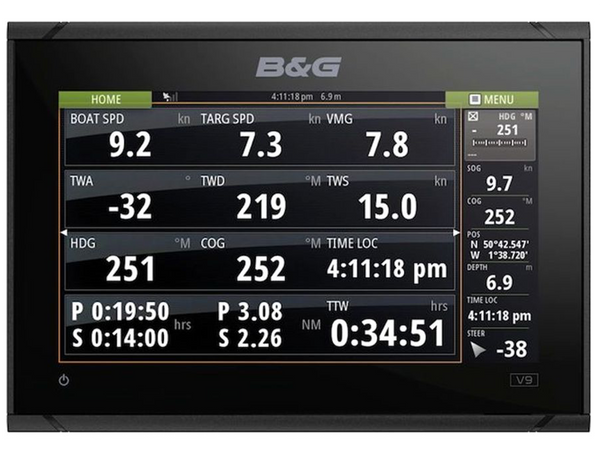

Instrument Display - Integrate the Vulcan 9 with your onboard instruments & sensors to be able to use the Vulcan 9 as a highly visible instrument display with single, dual and 4-way split readouts.

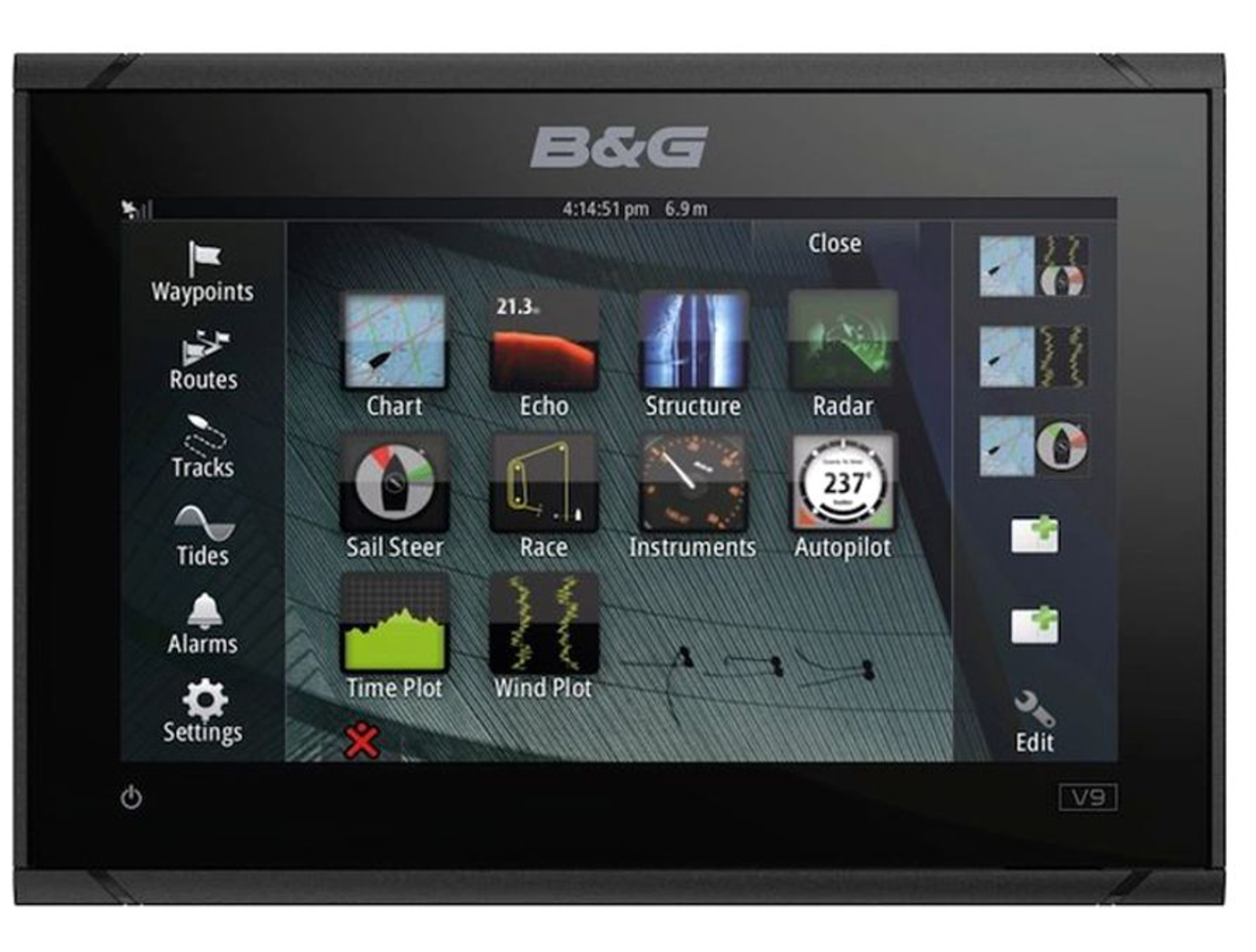

Widescreen, Multi-Touch Display - Vulcan 9 design gives maximum display in a small form factor. With pinch to zoom and swipe to pan, the V9 is intuitive to use and the easy to navigate menus make the Vulcan 9 simple to operate.
Choice of Charts - Choose from C-MAP™, Navionics®, NV Digital™ or Insight charting options to make the most of your routing and planning.
Integrated Wi-Fi - This powerful chartplotter features WiFi, enabling you to enjoy supreme communication and connectivity. Users can also repeat information to their smartphones and control selected chartplotter functions from their iPad or Android tablets for the ultimate in on-board freedom.
Smart NMEA 2000® networking - Easily and seamlessly connects essential kit for cruising and sailing such as Sailing Instruments & sensors, SonicHub marine audio server, ZG100 external GPS & heading sensor and V50 DSC VHF Marine Radio with built-in AIS, and gathers sailing data at your convenience; ready when you need it.

Key Features

9” Multi-touch sailing chartplotter
Award winning sailing features including SailSteer, Sailing Time, etc.
Compatible with a wide range of charts: C-Map Max-N, Navionics, NV Digital Charts, Insight, Insight Genesis
Integrated Wi-Fi for GoFree connection
Control your B&G Autopilot
Large digit instrument display
Built-in 10Hz GPS
Built-in Cruise Sonar
AIS Integration

Specification

Brand	B&G
Screen Size	9"
Series	Vulcan
Model	Vulcan 9
Voltage	12V DC (10V - 17V DC)
Fuse	3A (recommended)
Approvals	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Consumption	Max.: 20W / Typical: 12W
Temperature Range	Operating: -15 to +55°C (5 to +131°F) / Storage: -20 to +60°C (4 to +140°F)
Protection Rating	IPx6 and 7
Warranty	2 Years
