Lewmar Pro- Fish Windlass Kit - 1000W - 8mm/ 5/16" Chain

PRO-FISH HORIZONTAL WINDLASS KITS

Praised by professionals worldwide, the horizontal Pro-Series is suitable for boats from 6m-11.5m (20-38ft). It’s DIY-ready, easy to install and housed in 100% 316 stainless steel, making it well protected and durable. Supplied with push-button control and a built-in manual emergency recovery system, anchoring has never been easier. The redesigned control arm with new rope guard and gypsy work flawlessly with lead line and is also available as an upgrade kit for existing Pro-Series windlasses.

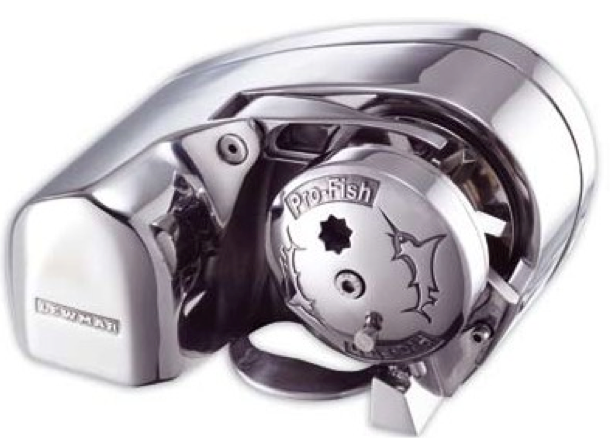

The Pro-Fish model, is the ultimate windlass for fishermen. The Pro-Fish is also DIY-ready and made of durable 100% 316 stainless steel, but has an automatic free fall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision. You can retrieve your anchor just as easily, with the push of a button. Like the Pro-Series, it has a re-designed control arm, rope guard and gypsy.

Kits include: Windlass, base gasket seal, fast-mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch.

Key Features

• All stainless steel design
• Automatic freefall mechanism (Pro-Fish only)
• Powerful motor providing fast line speed
• NEW guard optimises performance with rope
• NEW gypsy design for lead line applications
• Manual emergency recovery equipped – all
• you need is a common 1⁄2" socket wrench
• Maximum pulling power: 320kg (700lb) for the
• 700 and 454kg (1,000lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)
• Free Fall conversion kits
• DIY Ready

Specification

• Max Chain Size : 8mm/ 5/16"
• Gypsy Chain Specification: 8mm DIN 766, 5/16" BBB, 8mm ISO 4565
• Gypsy Rope Specification: 14 16mm ( 9/16" - 5/8" ) 3- Strand and 8-plait ( 5/8" )
• Motor Supply Voltage: 12V
• Motor Power: 700W
• Max Pull: 454kg, 1000lb
• Working Load: 114kg, 250lb
• Max Line Speed: 32 meters min, 105ft min
• Normal Current Draw: 50A
• Circuit Breaker: 70A
• Weight: 9.5kg, 21lb

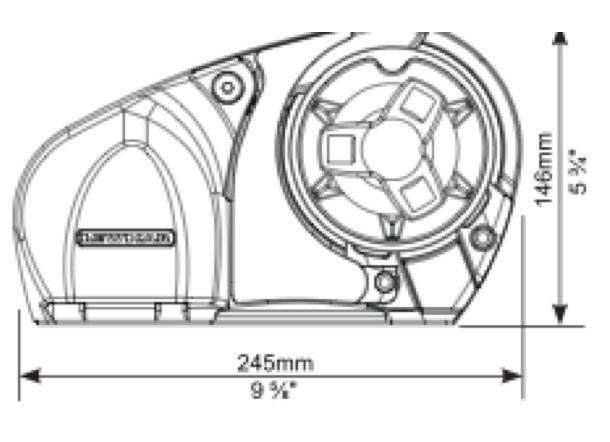

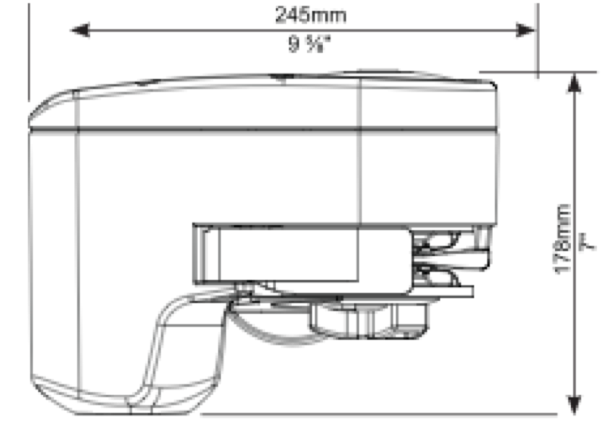

Dimensions

• See attached images
