Italwinch Devon Windlass 1000W 12/24V 6/8/10mm Chain

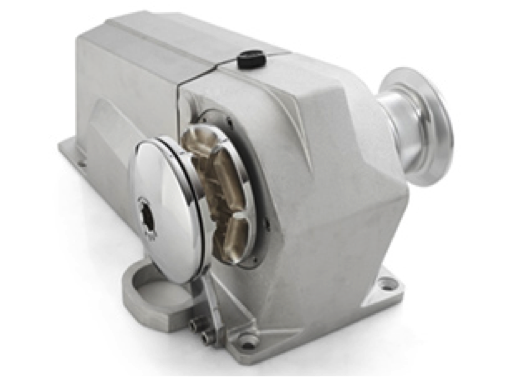

The Devon horizontal windlass is available with a 1000 watt motor in 12 volt. Reversing motor allowing anchor to be released electrically as well as manually. To release anchor manually loosen the gypsy clutch cover with handle, which in turns releases the clutch. The speed of descent is controlled by the handle. Rope Drum can be used independently of gypsy. Windlass made in anodized aluminium alloy, with chromed gypsy cover. Supplied with handle and control box.

Specification

  • Motor: 1000W
  • Voltage: 12 or 24V
  • Safe Work Load Max: 12V 390kg, 24V 420kg
  • Work Load Lifting: 12V 130kg, 24V 140kg
  • Chain Speed Recovery: 25 mt/min
  • Amperage: 12V 115A, 24V 60A

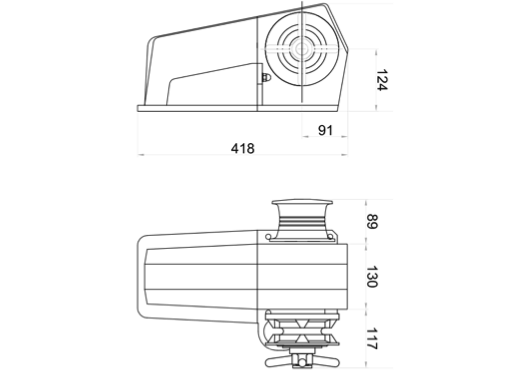

  • Dimensions: See attached image
  • Weight: 28.7kg
  • Horizontal windlass
  • Power 1000W
  • Chain: 6/8/10mm
  • Anodised marine aluminium case
  • Chain counter sensor as standard
  • Heavy duty rated IP66 electric motor
  • Suitable for boats up 16 metres
  • Two year warranty

Models



  • Devon 1000W 12V 8mm Chain
  • Devon 1000W 12V 10mm Chain
  • Devon 1000W 24V 8mm Chain
  • Devon 1000W 24V 10mm Chain
