Blue Sea Water Resistant Circuit Breaker Panel - 4 or 6 Gang
£123.00
£146.66

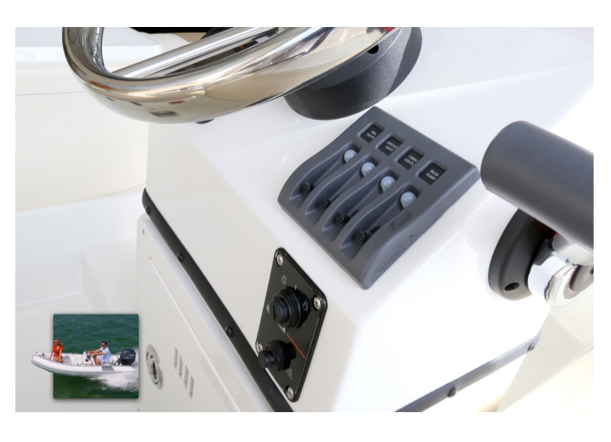

Designed for flybridge and open cockpit applications
Key Features
- Green LEDs illuminate circuit labels
- Backlighting is compatible with DeckHand Dimmers
- Independent label backlighting allows switching and dimming
- Designed for flybridge and open cockpit applications
- Constructed from corrosion resistant materials
- Label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers

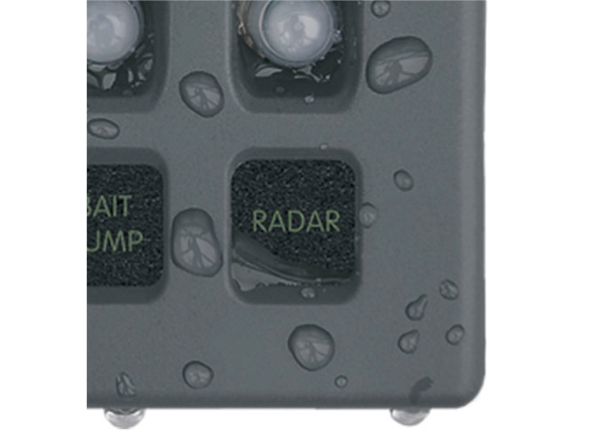

- UV stabilized and weather resistant faceplate
- Rated IP67 - "Temporary Immersion"
- Rugged UV stabilized waterproof boots protect switches and circuit breakers
- Each panel can be mounted in four different orientations
-
Includes 4215 - 30 label set
Specification & Dimensions
- Voltage Max operating: 24 Volts DC
- Amperage Max Operating: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)
- Backlight Operating Current (A): 10mA / Illuminated Circuit
- Panel Cumulative Rating: 45A
- Switch Rating: 15A maximum
- Backlighting Voltage: 12 or 24V DC

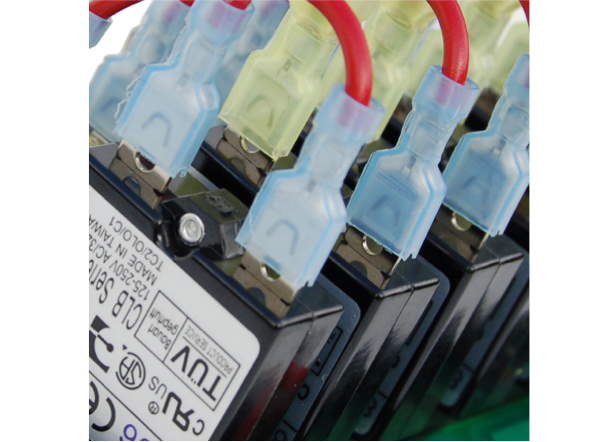

- Circuit Breaker Rating: 15A
- Height: 4 Way 109.22mm (4.3"), 6 Way 152.4mm (6.00")
- Width: 4/6 Way 107.95mm (4.25")
- Depth: 4/6 Way 88.9mm (3.50")
- Weight: 4 Way 0.44 kg ( 0.97lb), 6 Way 0.61 kg (1.35lb)
Models

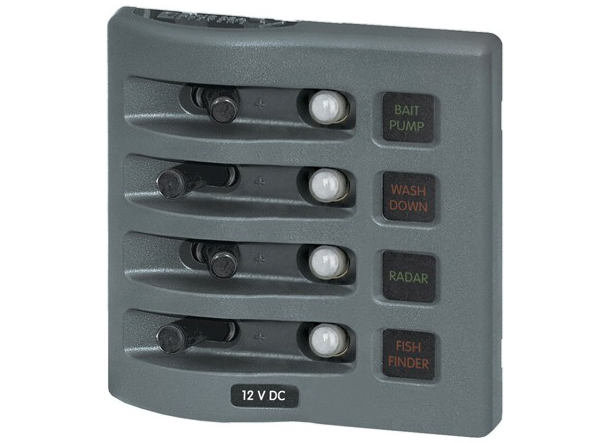

- Blue Sea Water Resistant Circuit Breaker Panel 4 Gang

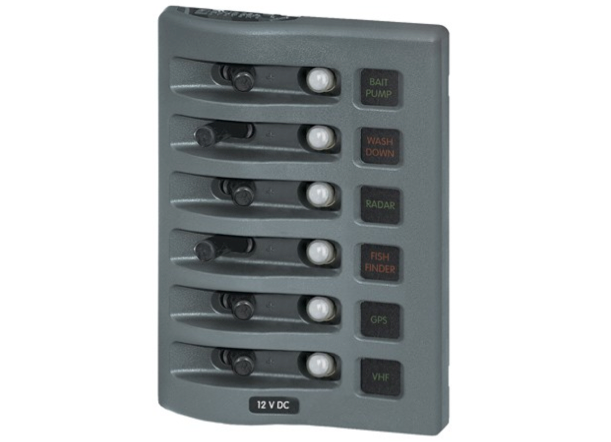

- Blue Sea Water Resistant Circuit Breaker Panel 6 Gang
