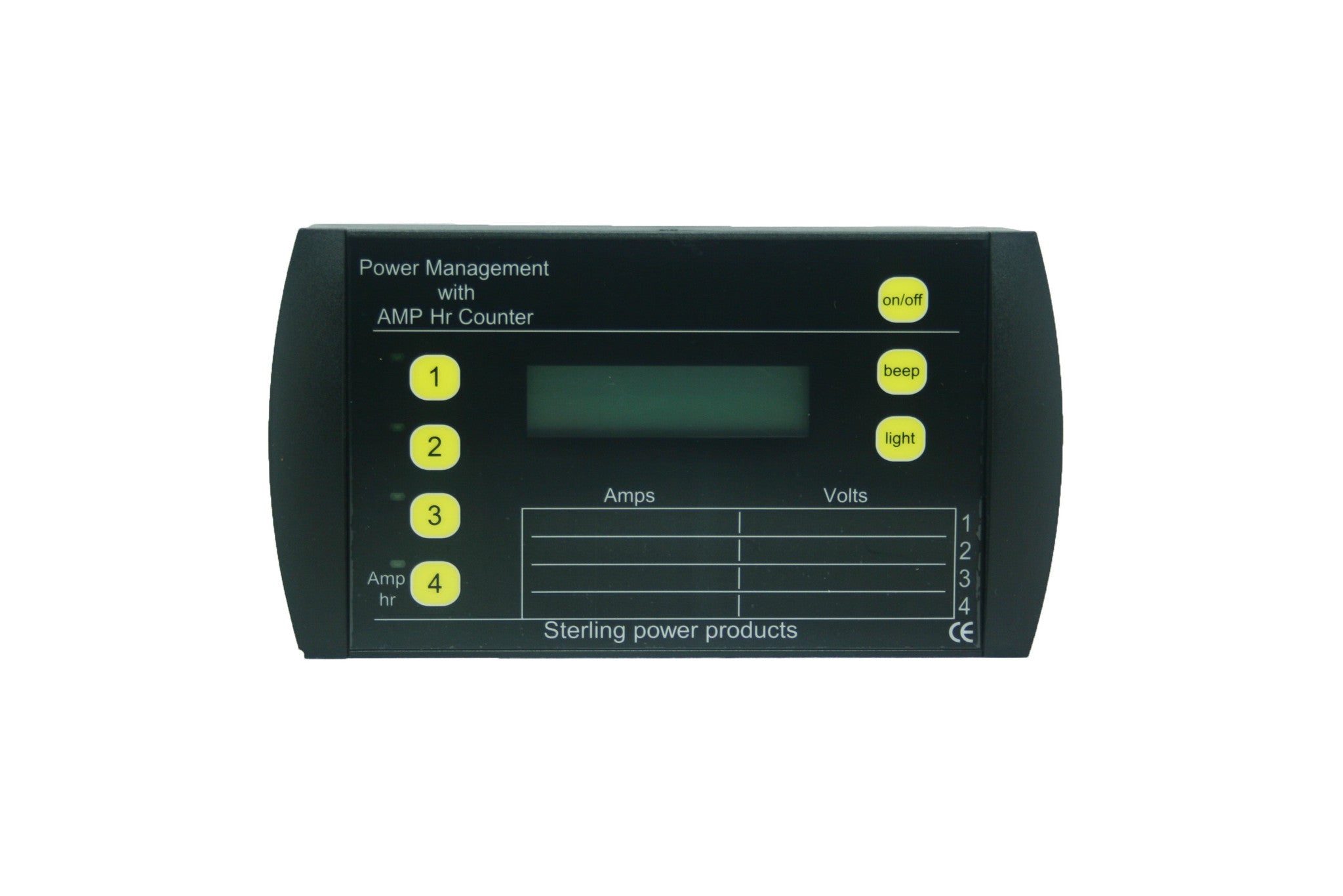

Sterling Power Management Panel

trusted sterling Brand brings up all the relevant information to maintain you batteries

Key Features

• Amp Hour Counter
• 4 different volt readings
• 4 different amp readings
• 1 amp. hour counter
• Shunts can be fitted in negative or positive cable (unlike most others)
• Computer controlled calculation
• 200A shunt incl.
• All information of a channel will be displayed
• Background light
• Input voltage: 9 - 30V/DC
• Channel voltage: +/- 0.00 - 99.99VDC
• Resolution: 0.01V
• Channel amps: +/- 0.0 - 999.9A/DC Resolution: 0.0A
• Max. Amp.hours: -9999Ah
• Shunt type: 200A = 200mV
• Surface, recessed or panel mounting

The latest software driven Power Management Panel is an extremely effective unit designed to monitor and display all the vital electrical information on an average boat. This enables important (potentially expensive) decisions to be made regarding faults and general on-board DC electrical power management. The information obtained also helps any third party engineer to identify problems.

The operation of the panel is based on 100 mV shunts.  Shunts enable all current measurement to take place remotely from the instrument clusters, removing all the voltage drop and R.F.I. problems associated with running heavy duty cables up to a control panel and navigation instruments.

The new panel has a built in Ah counter on one channel, and in total enables 4 different amp readings, 4 different volt readings, and one Ah counter. The shunts of the system can be fitted in negative or positive cables (unlike most others). The counter counts the amps going into and out of the battery system. The amp hour counter setup and function are completely automatic and require no intervention from the user.
The background light ensures perfect legibility in daylight, direct sunlight and at night.

Each panel comes complete with a 200A shunt, (up to 3 extra shunts may be purchased) and a list of labels for the panel front.
The plastic box can either be surface or flush mounted by using the new parts.

Dimension & Weights

• Length 170mm
• Height 90mm
• Depth 40mm
• Weight 0.5kg
