ATI Thermostatic Mixing Valve Kit for Calorifiers

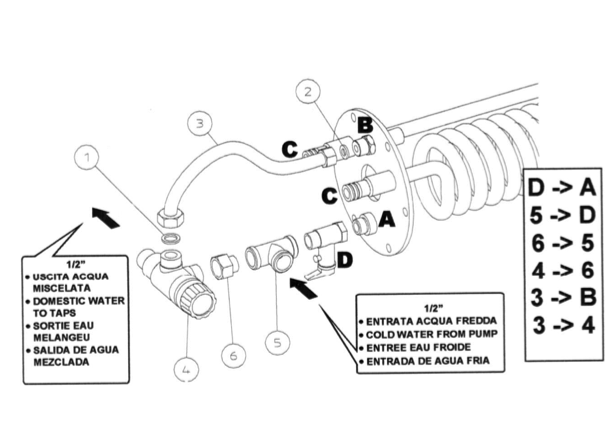

You will find an illustration which shows a sketch of the components of the Thermostatic Mixing Valve

This kit provides an easily assembled means of mixing cold water direct from the domestic water pump with the hot water from the outlet of ATI calorifiers, to give a constant mixed water temperature that can be set by the user.

It goes without saying that the mixed water temperature can never be hotter than that available from the calorifier at that time. The maximum through flow rate is 20 to 50 litres per minute depending on the domestic water pressure.

This kit can be fitted to any of the current range of ATI ‘Boat Boilers’ and retrofitted to any of their products having the same water connections. With older installations it is worth checking with us to ensure compatibility. Do not use with other makes.

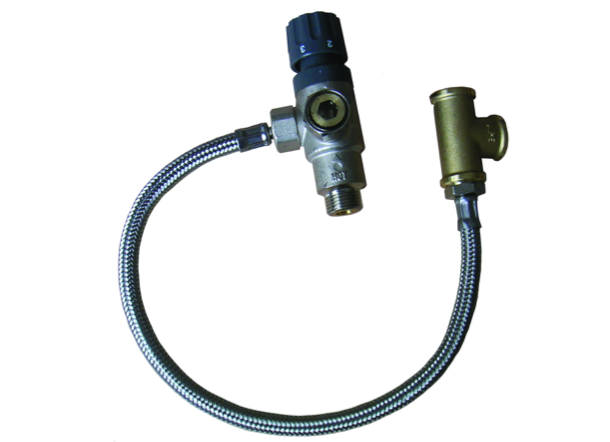

The kit consists of the following items; (1) Two Washers 1/2 inch

(2) One Hose in braided stainless steel (3) One Thermostatic water mixing valve (4) One‘T’connection1/2inch

A suitable sealing tape, paste or loctite for hot water systems will be required.
