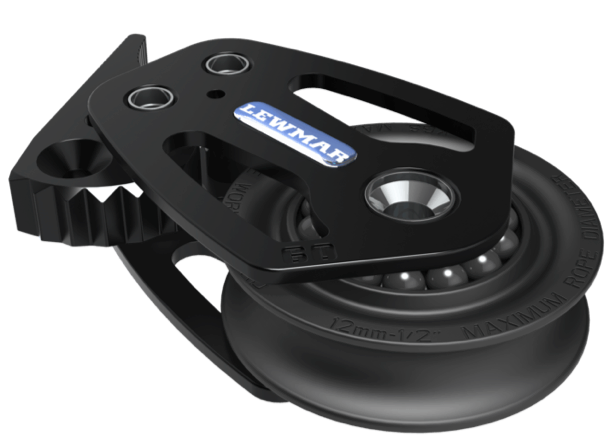

Lewmar HTX Foot Block with Jammer - 2 Sizes

Years of design and manufacturing experience, combined with collaboration with boat builders, designers, and sailors, has resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the racing range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. Ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

Key Features

• Strong aluminium side cheeks
• Central plain bearing for efficiency at high loads
• Side thrust Delrin ball bearings
• Head design inspired by Lewmar Racing
• Range, complete with grub screw swivel head locking mechanism

Higher efficiency - for faster sail handling and less rope wear.

HTX blocks are more efficient than alternative brands using similar material due to machined bearing pin surface. Their efficiency improves above 450kg as acetal sheaves become self-lubricating at this point.

Use M8 (5⁄16") fixings for the 60/72mm sheaves and M10 (3⁄8") for the 90mm sheaves (not included).

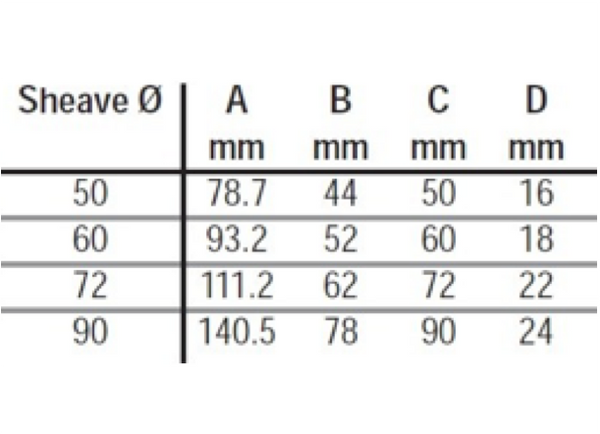

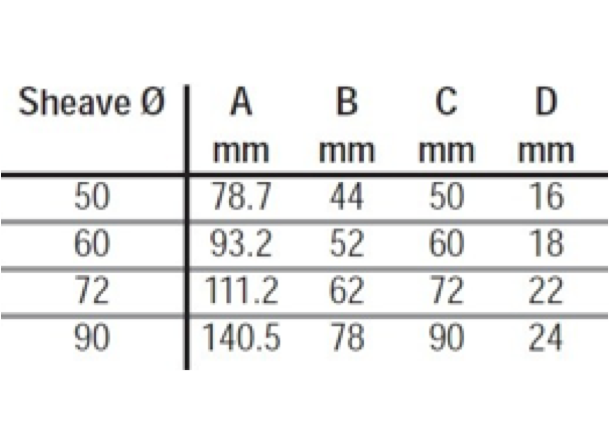

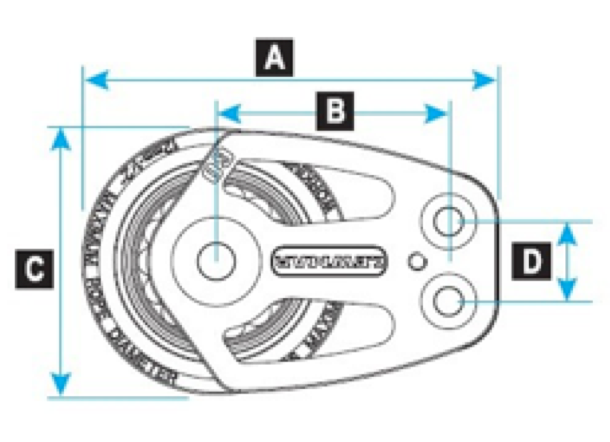

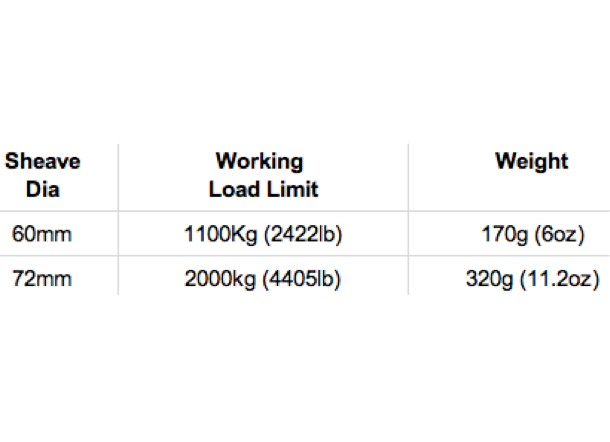

Dimensions, Specifications & Weights

• See attached images

Models

• Lewmar 60mm HTX Foot Block with Jammer
• Lewmar 72mm HTX Foot Block with Jammer
